H5013 AC2/A (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) CRANKCASE COVER Parts Diagram

Multi-Purpose Tractor, Made in Japan

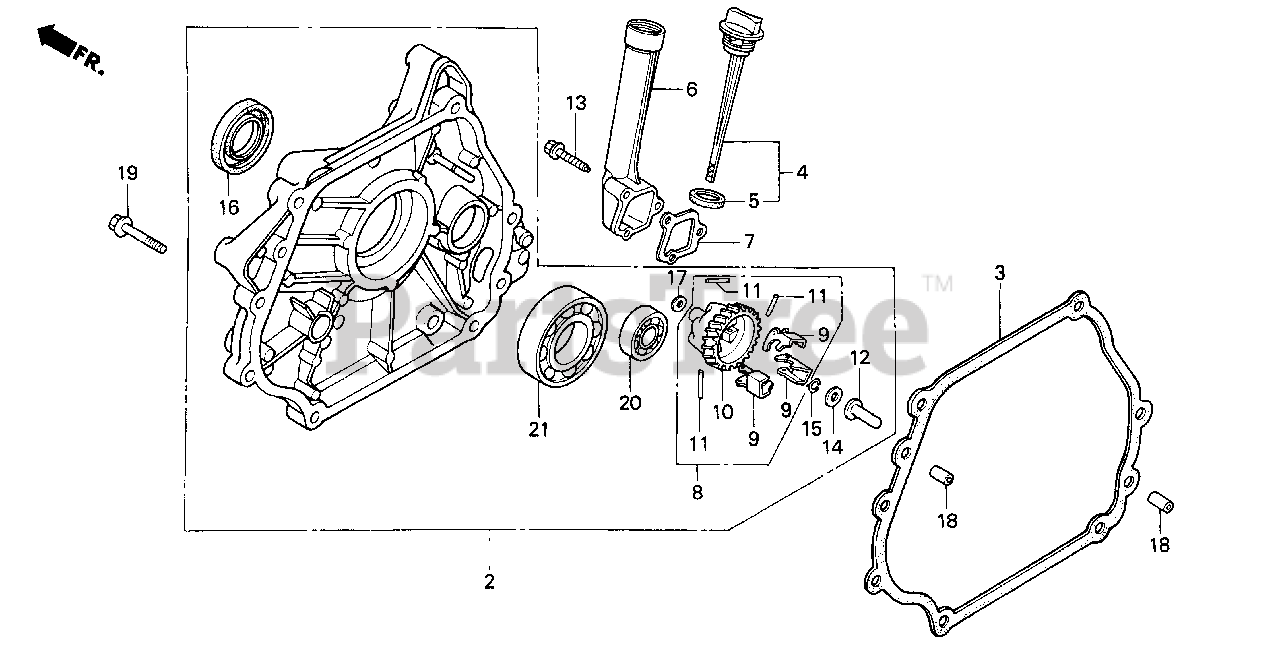

CRANKCASE COVER Parts Diagram

  • Title

2

Honda 11300-ZE3-792

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE
(Superseded to 11300-ZE3-405)

$311.99

$

Usually ships in 3-6 days

0

2

Honda 11300-ZE3-794

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE

$

$

Currently unavailable

3

Honda 11381-ZE3-800

SEE PART DETAILS - PRI; GASKET, CASE COVER
(Superseded to 11381-ZE3-801)

$13.99

$

In Stock, Qty 5

0

3

Honda 11381-ZE3-801

SEE PART DETAILS - PRI; GASKET, CASE COVER

$13.99

$

In Stock, Qty 5

0

4

Honda 15600-ZE3-791

CAP ASSY., OIL FILLER

$17.99

$

Usually ships in 3-6 days

0

5

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

6

Honda 15630-ZE3-790

EXTENSION, OIL FILLER

$

$

Not available

7

Honda 15635-ZE3-800

GASKET, OIL FILLER EXTENSION

$

$

Not available

8

Honda 16510-ZE3-000

GOVERNOR ASSY.

$31.99

$

In Stock, only 2 left!

0

9

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

10

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

$18.99

$

Usually ships in 3-6 days

0

11

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

12

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

$3.99

$

In Stock, Qty 5

0

12

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, Qty 5

0

13

Honda 90012-888-000

BOLT, FLANGE (6X40) (CT200)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 6

0

16

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$10.99

$

In Stock, Qty 8

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.99

$

In Stock, only 2 left!

0

19

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

20

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 4 left!

0

21

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0
