H5013 A4/D (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) REAR STEERING ARM Parts Diagram

Multi-Purpose Tractor, Made in Japan

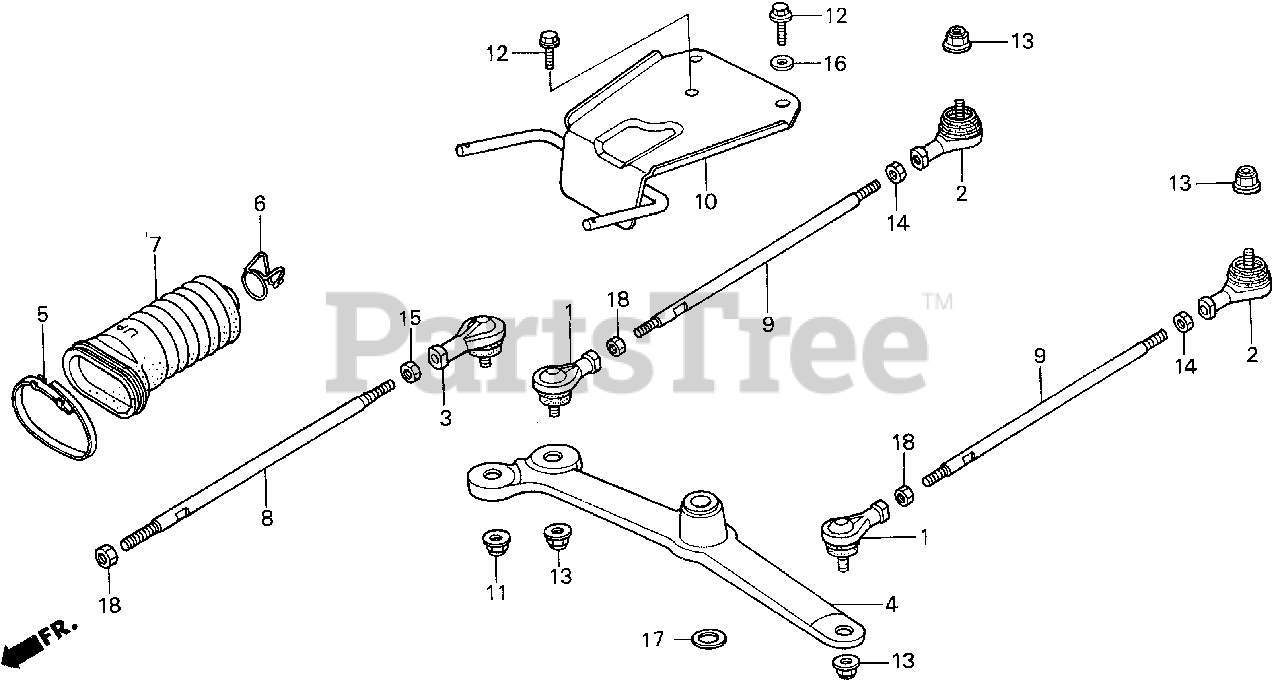

REAR STEERING ARM Parts Diagram

  • Title
1

Honda 53165-752-003

JOINT, R. BALL (ER12)

$71.99

$

Usually ships in 3-6 days

0

2

Honda 53166-752-003

JOINT, L. BALL (ER12)

$

$

Not available

3

Honda 53168-752-003

JOINT, L. BALL (ER10)
(Superseded to 53168-752-004)

$

$

Not available

4

Honda 53425-752-630

ARM, RR. STEERING

$

$

Not available

5

Honda 53433-752-000

BAND, RELAY ROD SEAL

$

$

Not available

6

Honda 53434-SD9-000

SEE PART DETAILS - PRI; CLIP, TIE ROD

$

$

Not available

7

Honda 53434-752-000

SEAL, RELAY ROD

$

$

Not available

8

Honda 53435-752-003

ROD, RR. STEERING RELAY

$

$

Not available

9

Honda 53522-752-B31

TIE ROD, RR.

$

$

Not available

10

Honda 56735-752-010

BRACKET B, OIL TANK

$

$

Not available

11

Honda 90002-SA7-000

NUT, SELF-LOCK (10MM)
(Superseded to 90212-671-005)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 90103-426-000

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90215-SB0-003

NUT, SELF-LOCK (12MM) (SATO RASHI)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90301-752-000

NUT, L. HEX. (12MM)

$

$

Not available

15

Honda 90303-752-000

NUT, L. HEX. (10MM)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90441-286-000

WASHER, SEAL (8MM)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90451-198-000

WASHER, THRUST (17MM)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 94001-12080-0S

NUT, HEX. (12MM)

$2.49

$

Usually ships in 3-6 days

0
