H5013 A4/D (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) FRONT P.T.O. CLUTCH LEVER Parts Diagram

Multi-Purpose Tractor, Made in Japan

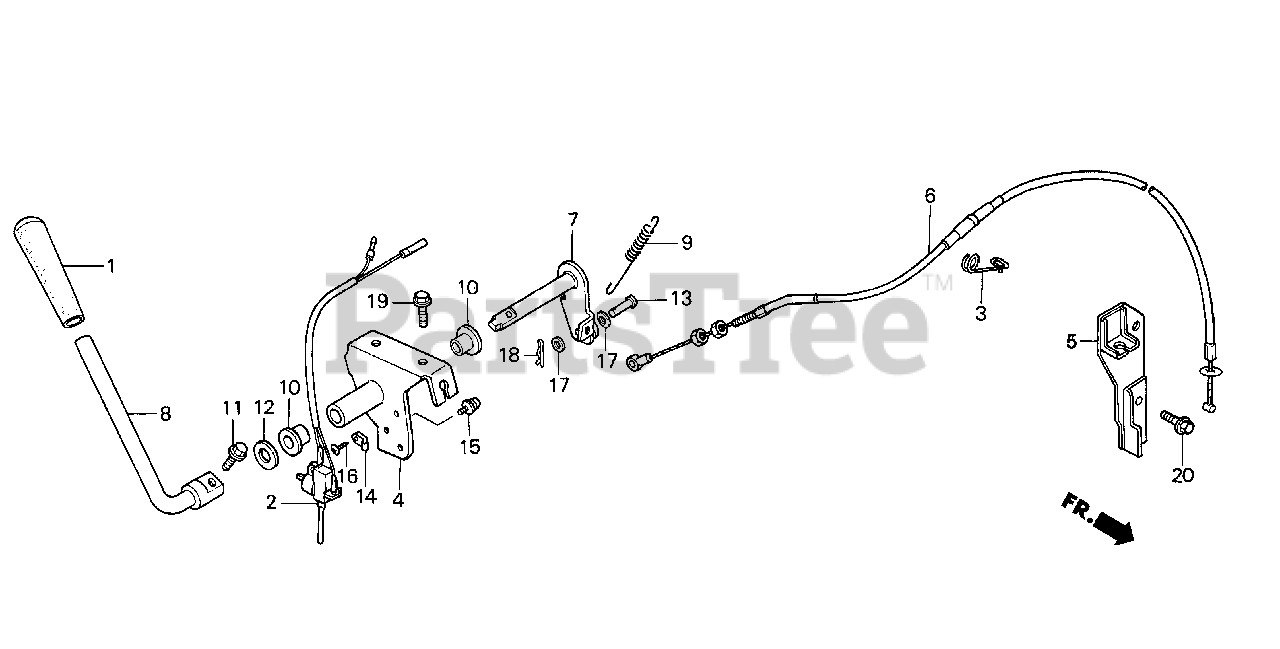

FRONT P.T.O. CLUTCH LEVER Parts Diagram

  • Title

1

Honda 24406-763-A00ZA

SEE PART DETAILS - PRI; GRIP, P.T.O. CLUTCH LEVER *Y121* (YELLOW)

$10.99

$

Usually ships in 3-6 days

0

2

Honda 35330-752-B01

SWITCH ASSY., FR. CLUTCH

$

$

Not available

3

Honda 50275-733-820

GUIDE, CABLE

$

$

Not available

4

Honda 57250-752-B00

BRACKET, P.T.O. CLUTCH

$

$

Not available

5

Honda 75181-752-631

HOLDER, P.T.O. CLUTCH WIRE

$

$

Not available

6

Honda 75187-752-630

CABLE, P.T.O. CLUTCH

$

$

Not available

7

Honda 75251-752-B01

ARM, P.T.O. CLUTCH LEVER

$

$

Not available

8

Honda 75252-769-000

SEE PART DETAILS - PRI; LEVER, P.T.O. CLUTCH

$

$

Not available

9

Honda 75253-750-000

SPRING, P.T.O. CLUTCH

$

$

Not available

10

Honda 75255-752-B00

BUSH, P.T.O. CLUTCH ARM

$

$

Not available

11

Honda 90011-750-801

BOLT, FLANGE (6X12)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90509-169-000

WASHER (14MM)

$

$

Not available

13

Honda 90752-735-800

PIN, AUXILIARY CHANGE LEVER JOINT

$4.99

$

Usually ships in 3-6 days

0

14

Honda 91475-SB6-000

CLIP, WIRE HARNESS (6.3MM)

$10.99

$

Usually ships in 3-6 days

0

15

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 93903-24220

SCREW, TAPPING (4X10)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 94251-06400

PIN, LOCK (6MM)

$

$

Not available

19

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

20

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0
