H5013 A2/D (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) MUFFLER Parts Diagram

Multi-Purpose Tractor, Made in Japan

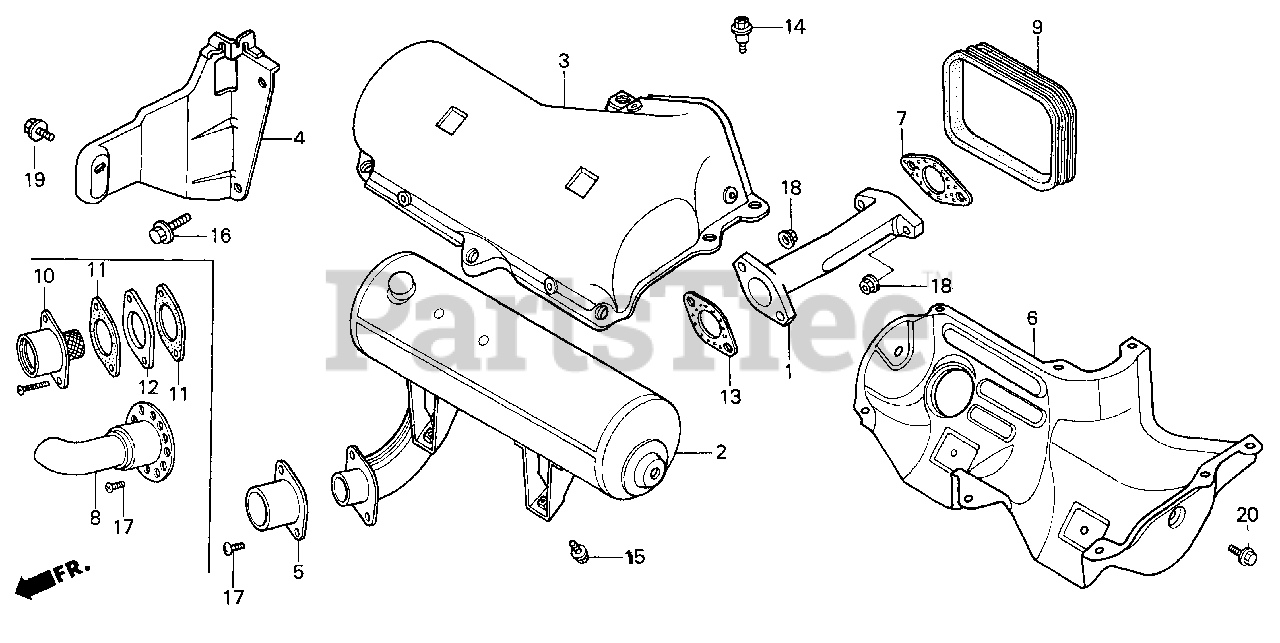

MUFFLER Parts Diagram

  • Title

1

Honda 18201-752-000

PIPE, EX.

$

$

Not available

2

Honda 18310-752-621

MUFFLER

$

$

Not available

3

Honda 18320-752-000

PROTECTOR ASSY., MUFFLER (UPPER)

$

$

Not available

4

Honda 18321-752-000

BRACKET, MUFFLER

$

$

Not available

5

Honda 18328-752-000

PROTECTOR, TAIL PIPE

$

$

Not available

6

Honda 18330-752-000

PROTECTOR ASSY., MUFFLER (LOWER)

$

$

Not available

7

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 20+

0

7

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$4.99

$

In Stock, Qty 20+

0

8

Honda 18334-752-890

DEFLECTOR, MUFFLER

$95.99

$

Usually ships in 3-6 days

0

9

Honda 18335-752-000

SEAL, MUFFLER PROTECTOR

$

$

Not available

10

Honda 18350-752-630

ARRESTER, SPARK

$

$

Not available

11

Honda 18351-752-630

GASKET, SPARK ARRESTER (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 18352-752-630

SPACER, SPARK ARRESTER

$11.99

$

Usually ships in 3-6 days

0

13

Honda 18381-ZA0-800

GASKET, MUFFLER

$6.49

$

Usually ships in 3-6 days

0

14

Honda 90011-752-003

BOLT, FLANGE (6X12)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 95701-06008-08

BOLT, FLANGE (6X8)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90031-883-000

BOLT, FLANGE (8X16)

$5.99

$

In Stock, only 1 left!

0

17

Honda 93500-05008-0H

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

19

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

20

Honda 95701-06012-07

BOLT, FLANGE (6X12)

Note: Use from Frame SN 2100067.

$2.49

$

In Stock, Qty 15

0
