H5013 A2/D (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) INSTRUMENT PANEL Parts Diagram

Multi-Purpose Tractor, Made in Japan

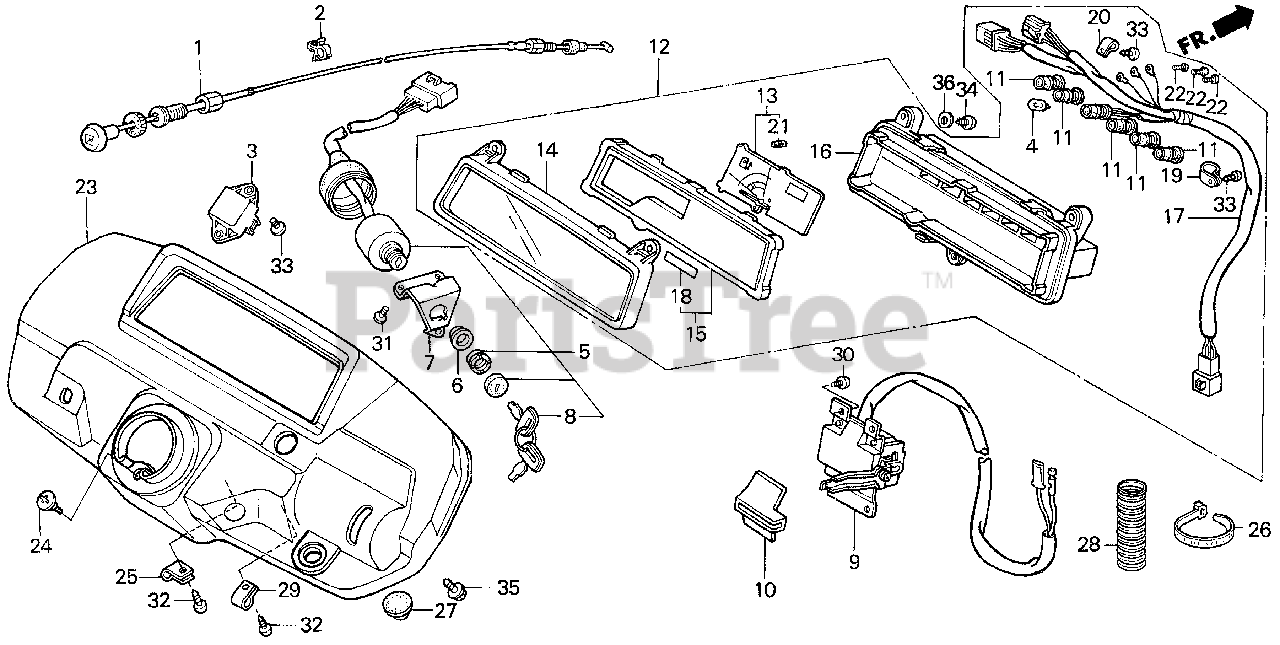

INSTRUMENT PANEL Parts Diagram

  • Title

1

Honda 17950-752-630

CABLE, CHOKE

$

$

Not available

2

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

3

Honda 31640-752-631

ALARM UNIT, OIL

$

$

Not available

4

Honda 34908-MB9-871

BULB, WEDGE BASE (12V 1.7W) (STANLEY)

$3.99

$

Usually ships in 3-6 days

0

5

Honda 35100-752-023

SWITCH ASSY., COMBINATION

$157.99

$

Usually ships in 3-6 days

0

6

Honda 35101-752-000

COLLAR, COMBINATION SWITCH

$7.99

$

Usually ships in 3-6 days

0

7

Honda 35102-752-000

BASE, COMBINATION SWITCH

$

$

Not available

8

Honda 35110-VA3-902

SEE PART DETAILS - SUP; KEY ASSY., COMBINATION SWITCH
(Superseded to 35110-VA3-903)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 35110-VA3-903

SEE PART DETAILS - PRI; KEY ASSY., COMBINATION SWITCH

$11.99

$

Usually ships in 3-6 days

0

9

Honda 35150-752-631

SWITCH ASSY., HEADLIGHT

$

$

Not available

10

Honda 35202-752-003

KNOB, TURN SIGNAL SWITCH

$

$

Not available

11

Honda 37116-KG4-008

CAP A

$2.49

$

Usually ships in 3-6 days

0

12

Honda 37150-752-B31

METER ASSY., FUEL

$

$

Not available

13

Honda 37151-752-631

METER, FUEL

$

$

Not available

14

Honda 37154-752-003

GLASS

$

$

Not available

15

Honda 37156-752-B31

PLATE, REFLECTING

$

$

Not available

16

Honda 37157-752-003

CASE

$100.99

$

Usually ships in 3-6 days

0

17

Honda 37158-752-631

SOCKET

$

$

Not available

18

Honda 37159-752-B30

MARK, EMBLEM (E)

$

$

Not available

19

Honda 37215-MB6-831

CLAMP

$3.49

$

Usually ships in 3-6 days

0

20

Honda 37215-752-631

CLAMP

$

$

Not available

21

Honda 37304-KM7-911

RUBBER, CUSHION

$11.99

$

Usually ships in 3-6 days

0

22

Honda 37305-KE5-008

SCREW-WASHER (3X22)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 77210-752-630ZA

PANEL, INSTRUMENT *NH105* (MAT BLACK)

$

$

Not available

24

Honda 90123-750-000

SCREW, METER VISOR SETTING

$4.99

$

In Stock, Qty 6

0

25

Honda 90628-750-000

CLIP (14MM)

$2.99

$

In Stock, Qty 5

0

26

Honda 90674-WA8-003

BAND, CABLE (120MM) (BLACK)

$4.49

$

Usually ships in 3-6 days

0

27

Honda 90851-752-630

PLUG, INSTRUMENT PANEL

$

$

Not available

28

Honda 91407-752-000

TUBE, CORRUGATED (22X100)

$6.49

$

Usually ships in 3-6 days

0

29

Honda 91475-SB6-000

CLIP, WIRE HARNESS (6.3MM)

$10.99

$

Usually ships in 3-6 days

0

30

Honda 93901-24220

SCREW, TAPPING (4X10)

$4.49

$

Usually ships in 3-6 days

0

31

Honda 93903-24220

SCREW, TAPPING (4X10)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 93903-24220

SCREW, TAPPING (4X10)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 93903-24420

SCREW, TAPPING (4X16)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 93903-26420

SCREW, TAPPING (6X25)

$1.99

$

Usually ships in 3-6 days

0

35

Honda 93904-36280

SCREW, TAPPING (6X16)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
