H5013 A2/D (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) CYLINDER HEAD Parts Diagram

Multi-Purpose Tractor, Made in Japan

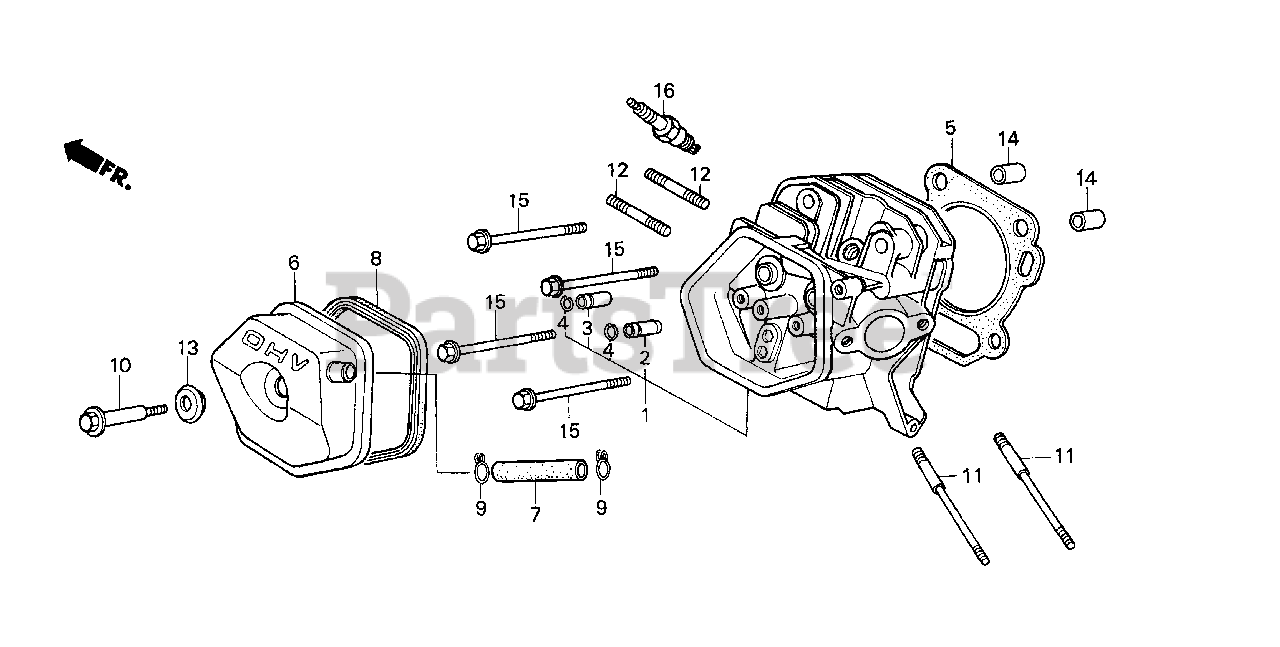

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZF6-W00

SEE PART DETAILS - SUP; CYLINDER HEAD

$

$

Currently unavailable

1

Honda 12200-ZF6-406

SEE PART DETAILS - PRI; CYLINDER HEAD

$362.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$

$

Not available

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OS)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZF6-W00

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZF6-W01)

$20.99

$

In Stock, only 3 left!

0

6

Honda 12310-ZE3-791

COVER, HEAD (BREATHER TUBE JOINT)

$50.99

$

Usually ships in 3-6 days

0

7

Honda 12315-ZF6-L50

TUBE, BREATHER

$

$

Not available

8

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$11.99

$

In Stock, Qty 20+

0

9

Honda 17316-611-000

CLIP, BREATHER TUBE

$13.99

$

Usually ships in 3-6 days

0

10

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.99

$

In Stock, only 1 left!

0

11

Honda 90042-ZE8-000

BOLT, STUD (8X131.5)

$8.99

$

Usually ships in 3-6 days

0

12

Honda 90047-ZE3-791

BOLT, STUD (8X40)

$

$

Not available

13

Honda 90441-ZE2-010

WASHER, HEAD COVER

$6.49

$

In Stock, Qty 16

0

14

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, only 3 left!

0

16

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

16

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

16

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, Qty 11

0
