H5013 A2/C (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-3100001 - FAHA-4099999) HOOD Parts Diagram

Multi-Purpose Tractor, Made in Japan

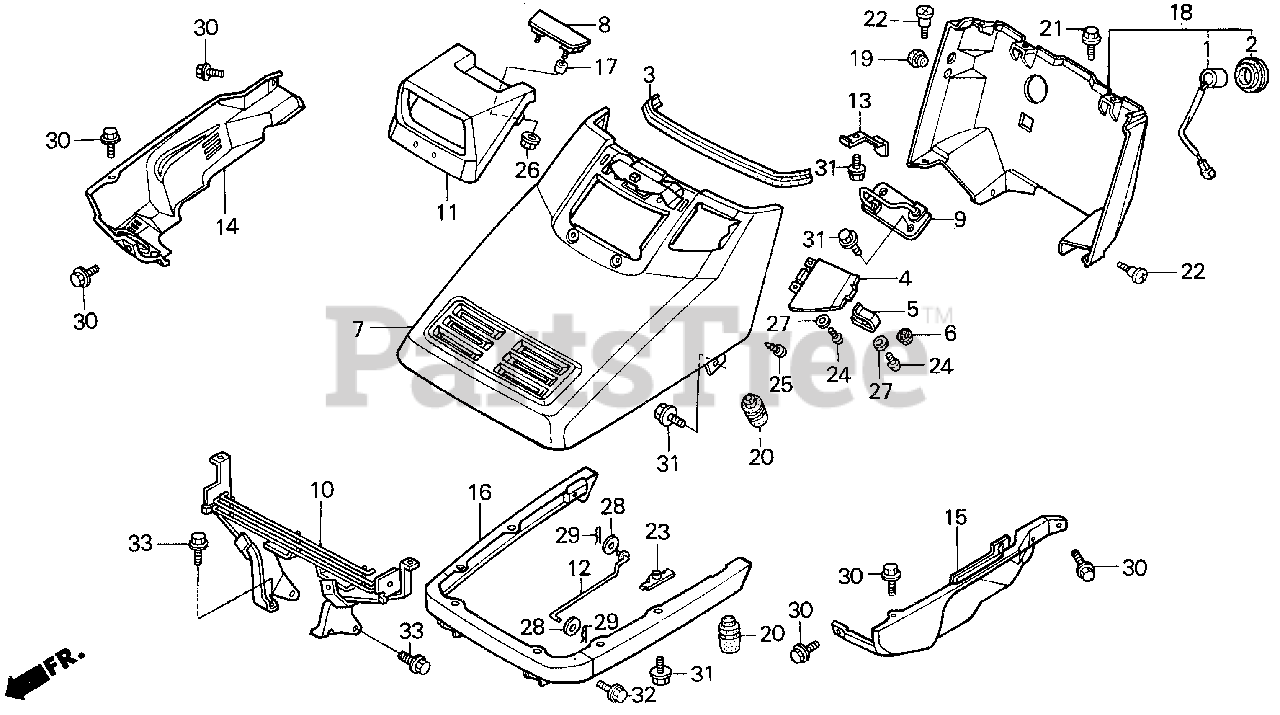

HOOD Parts Diagram

  • Title
1

Honda 38401-752-003

BUZZER, WARNING

$

$

Not available

2

Honda 46555-752-000

GROMMET, PARKING BRAKE BUZZER

$9.49

$

Usually ships in 3-6 days

0

3

Honda 60101-752-000

RUBBER, HOOD SEAL

$

$

Not available

4

Honda 60105-752-000ZA

LID, FUEL FILLER *R136* (DIANA RED)

$

$

Currently unavailable

5

Honda 60106-752-000

SPRING, FUEL LID

$

$

Not available

6

Honda 60107-752-000

RUBBER, FUEL LID STOPPER

$3.99

$

Usually ships in 3-6 days

0

7

Honda 60110-752-000ZA

HOOD *R136* (DIANA RED)

$

$

Not available

8

Honda 60111-752-003ZA

HANDLE, HOOD *NH105* (MAT BLACK)

$

$

Not available

9

Honda 60112-752-003

STRIKER, HOOD LOCK

$

$

Not available

10

Honda 60115-752-630

BRACKET, HOOD HINGE

$

$

Not available

11

Honda 60120-752-000ZA

CASE, HEADLIGHT *NH105* (MAT BLACK)

$

$

Not available

12

Honda 60511-752-010

STOPPER, HOOD OPEN

$

$

Not available

13

Honda 60514-752-000

SPRING, HOOD LOCK

$

$

Not available

14

Honda 60515-752-000ZA

COVER, R. ENGINE ROOM *R136* (DIANA RED)

$

$

Not available

15

Honda 60516-752-000ZA

COVER, L. ENGINE ROOM *R136* (DIANA RED)

$

$

Not available

16

Honda 60520-752-B30ZA

SUPPORT *NH105* (MAT BLACK)

$413.99

$

Usually ships in 3-6 days

0

17

Honda 61106-355-000

COLLAR, FR. FENDER

$

$

Not available

18

Honda 61400-752-000ZA

COVER ASSY., STEERING COLUMN *NH105* (MAT BLACK)

$

$

Not available

19

Honda 81329-567-020

GROMMET, DRAIN HOLE

$5.49

$

Usually ships in 3-6 days

0

20

Honda 85268-SA5-003

STOPPER, TAILGATE (BLACK)

$9.99

$

Usually ships in 3-6 days

0

21

Honda 90011-752-003

BOLT, FLANGE (6X12)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 90123-750-000

SCREW, METER VISOR SETTING

$4.99

$

In Stock, Qty 6

0

23

Honda 90381-752-000

NUT, PLATE

$5.99

$

Usually ships in 3-6 days

0

24

Honda 93500-05008-0H

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93901-25220

SCREW, TAPPING (5X12)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94050-05080

NUT, FLANGE (5MM)

$0.99

$

In Stock, Qty 6

0

27

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

28

Honda 94103-06800

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

29

Honda 94251-06400

PIN, LOCK (6MM)

$

$

Not available

30

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

31

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

32

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

33

Honda 95701-10022-08

BOLT, FLANGE (10X22)

$2.99

$

Usually ships in 3-6 days

0
