H50-65483R - Tecumseh Engine Engine Parts List #1 Parts Diagram

Engine

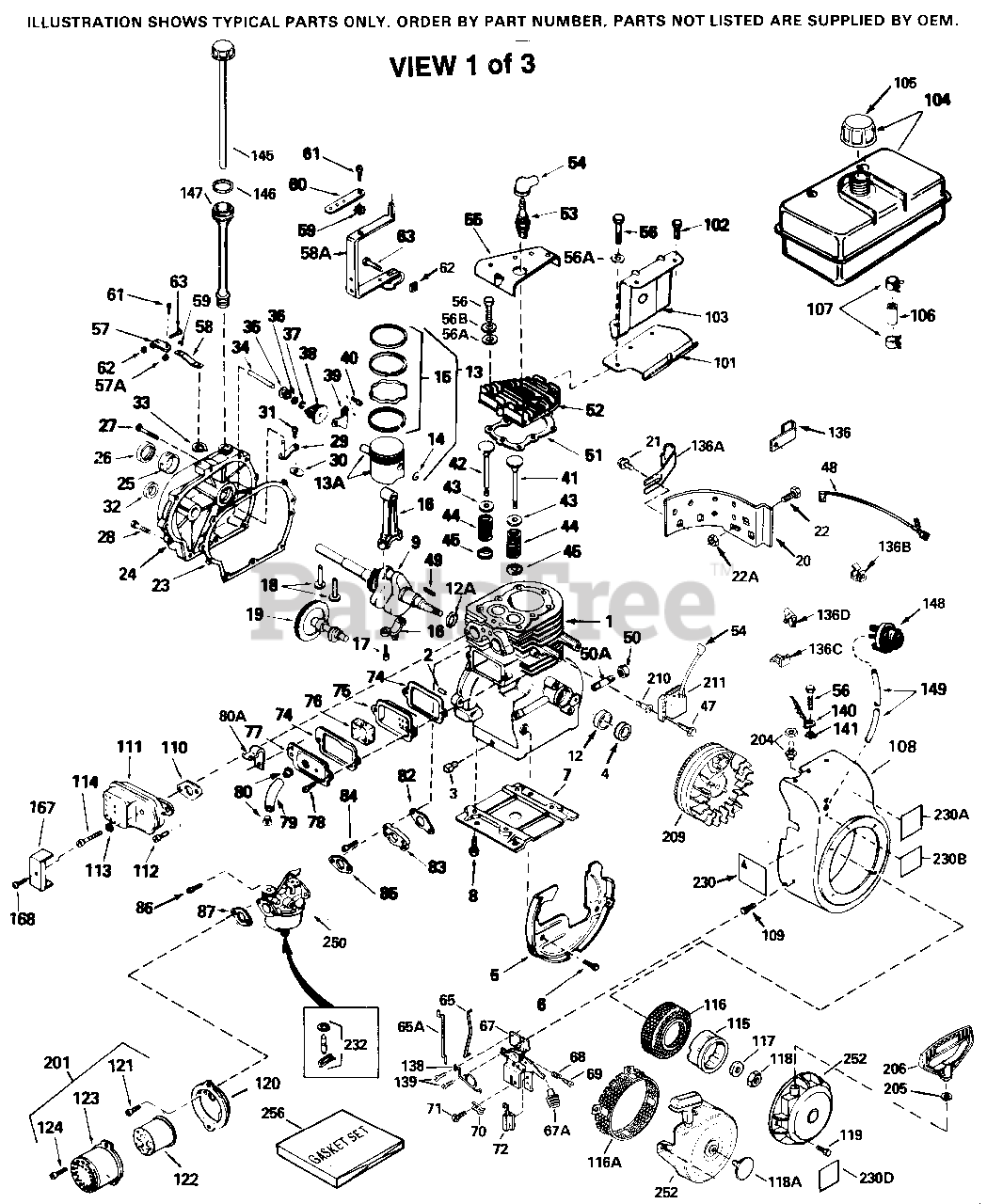

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 35123A

"Cylinder (Incl. 2, 20 & 72)

$

$

Not available

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

15B

Tecumseh 650494

Screw, 6-40 x 5/16"

$1.99

$

Usually ships in 3-12 days

0

15

Tecumseh 30699C

Governor Rod (Incl. 15A & 15B)

$17.99

$

In Stock, only 1 left!

0

15A

Tecumseh 30700

Governor Yoke

$1.99

$

In Stock, only 1 left!

0

16

Tecumseh 33454

Governor Lever
(Superseded to 33454A)

$10.99

$

In Stock, only 1 left!

0

17

Tecumseh 29916

Governor Lever Clamp

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

19

Tecumseh 34663

Speed Control Spring

$1.99

$

In Stock, only 1 left!

0

20

Tecumseh 32630

Oil Seal

$8.49

$

Usually ships in 3-12 days

0

23

Tecumseh 31793

Ball Bearing

$37.99

$

Usually ships in 3-12 days

0

25

Tecumseh 29536

Blower Housing Baffle

$18.99

$

Usually ships in 3-12 days

0

26

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

28

Tecumseh 30322

Lock Nut, 8-32

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 35283

Crankshaft
(Superseded to 36416)

$

$

Not available

32

Tecumseh 31792

Washer

$5.49

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29918

Lock Washer #8

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 29642

Retaining Ring

$100.99

$

In Stock, only 2 left!

0

40

Tecumseh 34531

Piston, Pin & Ring Set (Std.)

$

$

Not available

40

Tecumseh 34532

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

40

Tecumseh 34533

Piston, Pin & Ring Set (.020" OS)

$

$

Not available

41

Tecumseh 33312B

Piston & Pin Ass'y. (Std.) (Incl. 43)

$

$

Not available

41

Tecumseh 33313B

Piston & Pin Ass'y. (.010" OS) Incl. 43

$55.99

$

Usually ships in 3-12 days

0

41

Tecumseh 33314B

Piston & Pin Ass'y. (.020" OS) Incl. 43

$61.99

$

Usually ships in 3-12 days

0

42

Tecumseh 34854

Ring Set (Std.)

$

$

Not available

42

Tecumseh 34855

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 34856

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 31295C

Connecting Rod Ass'y. (Incl. 46)

$

$

Not available

48

Tecumseh 34034

Valve Lifter
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

50

Tecumseh 33156

Camshaft (BCR)
(Superseded to 32115)

$

$

Not available

60

Tecumseh 30622A

Blower Housing Extension

$

$

Not available

62

Tecumseh 650760

Screw, 8-32 x 3/8

$1.99

$

In Stock, only 3 left!

0

65

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 1 left!

0

69

Tecumseh 30684

* Cylinder Cover Gasket

$4.49

$

In Stock, Qty 6

0

70

Tecumseh 31451A

Cylinder Cover Incl. 74,75,80,175 & 1 76

$147.99

$

Usually ships in 3-12 days

0

72

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 2 left!

0

74

Tecumseh 31855

Bearing Retainer

$7.49

$

Usually ships in 3-12 days

0

75

Tecumseh 28460

Oil Seal

$8.99

$

In Stock, Qty 9

0

80

Tecumseh 31845

Governor Shaft
(Superseded to 37587)

$

$

Not available

81

Tecumseh 30590A

Washer

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Governor Gear Ass'y. (Incl. 81)

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Governor Spool

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650493

Screw, 1/4-20 x 1-3/4"

$3.99

$

In Stock, Qty 7

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 650872

Solid State Mounting Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw, Torx T-15, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35187

Ground Wire

$

$

Not available

119

Tecumseh 28938B

* Cylinder Head Gasket
(Superseded to 28938C)

$9.99

$

In Stock, Qty 6

0

120

Tecumseh 30938A

Cylinder Head (Incl. 3 of 130)
(Superseded to 36446)

$

$

Not available

125

Tecumseh 27878A

Exhaust Valve (Std.)(Incl. 151)

$23.99

$

Usually ships in 3-12 days

0

125

Tecumseh 27880A

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 32783

Intake Valve (Std.) (Incl. 151)

$16.99

$

In Stock, only 2 left!

0

126

Tecumseh 32784

Intake Valve (1/32" OS) (Incl. 151)

$69.99

$

Usually ships in 3-12 days

0

139

Tecumseh 31843A

Governor Gear Bracket

$5.49

$

In Stock, only 1 left!

0

140

Tecumseh 650836

Screw, 10-24 x 1/2"
(Superseded to 650965)

$

$

Not available

149

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, only 4 left!

0

150

Tecumseh 27881

Valve Spring

$3.99

$

In Stock, only 2 left!

0

173A

Tecumseh 32446

Breather Tube Grommet

$1.99

$

In Stock, only 3 left!

0

184

Tecumseh 31688

* Carburetor To Intake Pipe Gasket
(Superseded to 31688A)

$2.49

$

In Stock, only 2 left!

0

186

Tecumseh 34661

Governor Link

$6.99

$

In Stock, only 4 left!

0

200

Tecumseh 34664

Control Bracket (Incl. 19, 203 & 204)

$53.99

$

Usually ships in 3-12 days

0

203

Tecumseh 31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

209

Tecumseh 650821

Screw, 10-32 x 1/2"

$1.99

$

In Stock, only 3 left!

0

210

Tecumseh 27793

Conduit Clip

$1.99

$

In Stock, only 2 left!

0

211

Tecumseh 28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, only 4 left!

0

224

Tecumseh 27915

* Intake Pipe Gasket
(Superseded to 27915A)

$5.99

$

In Stock, Qty 19

0

227

Tecumseh 34780

Air Cleaner Elbow (Machined)

$41.99

$

Usually ships in 3-12 days

0

228

Tecumseh 650826

Stud, 1/4-20 x 6.20"

$3.99

$

Usually ships in 3-12 days

0

229

Tecumseh 650825

Nut & Lock Washer, 1/4-20

$1.99

$

In Stock, only 2 left!

0

232

Tecumseh 0

Pop Rivet (Purchase Locally)

$

$

Not available

235

Tecumseh 30675

Air Cleaner Elbow Fitting

$5.49

$

Usually ships in 3-12 days

0

238

Tecumseh 650163

Screw, 10-32 x 7/8"

$1.99

$

In Stock, only 3 left!

0

239A

Tecumseh 34698A

* Air Cleaner Gasket

$2.99

$

In Stock, only 3 left!

0

239

Tecumseh 27272A

* Air Cleaner Gasket

$4.49

$

In Stock, Qty 20+

0

245A

Tecumseh 34783

Air Filter

$3.99

$

In Stock, Qty 10

0

250

Tecumseh 34781

Air Cleaner Cover

$

$

Not available

260

Tecumseh 32158E

Blower Housing

$

$

Not available

262

Tecumseh 29747B

Screw, T-40, 5/16-24 x 21/32"

$1.99

$

In Stock, Qty 9

0

265

Tecumseh 30939A

Cylinder Head Cover
(Superseded to 30939B)

$

$

Not available

272

Tecumseh 30196

Screw, 5/16-18 x 3/4"

$1.99

$

In Stock, Qty 8

0

273

Tecumseh 34712

Carburetor Flange

$

$

Not available

275

Tecumseh 29633

Muffler

$

$

Not available

285

Tecumseh 32125

Starter Cup
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

286

Tecumseh 35009

Starter Screen

$3.99

$

In Stock, only 1 left!

0

287

Tecumseh 29716

Screw, 1/4-28 x 7/16"

$1.49

$

In Stock, Qty 6

0

291

Tecumseh 30962

Fuel Line

$30.99

$

In Stock, Qty 6

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

298

Tecumseh 650665

Screw, 1/4-15 x 3/4"

$1.99

$

In Stock, only 3 left!

0

299

Tecumseh 650764

"U" Type Nut

$1.99

$

Usually ships in 3-12 days

0

300

Tecumseh 34186A

Fuel Tank (Incl. 292 & 301)

$53.99

$

In Stock, only 1 left!

0

301

Tecumseh 35355

Fuel Cap (Red)
(Superseded to 37845)

$8.99

$

In Stock, Qty 10

0

305

Tecumseh 33590

"O" Ring

$1.99

$

In Stock, only 1 left!

0

305

Tecumseh 33893A

Oil Fill Tube

$

$

Not available

308

Tecumseh 33997

Fill Tube Clip

$1.99

$

Usually ships in 3-12 days

0

310

Tecumseh 34011A

Oil Fill Plug
(Superseded to 34011B)

$15.99

$

In Stock, only 1 left!

0

325

Tecumseh 29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

340

Tecumseh 34159

Fuel Tank Bracket

$18.99

$

In Stock, only 1 left!

0

341

Tecumseh 34158

Fuel Tank Bracket

$11.99

$

Usually ships in 3-12 days

0

342

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

366

Tecumseh 30209

Muffler Elbow

$

$

Not available

366A

Tecumseh 30244

Muffler Nipple

$

$

Currently unavailable

367

Tecumseh 32862

Lock Nut

$

$

Currently unavailable

370A

Tecumseh 34686

Logo Decal
(Superseded to 34686A)

$

$

Not available

370B

Tecumseh 34704

Instruction Decal

$7.99

$

Usually ships in 3-12 days

0

370

Tecumseh 34346

Instruction Decal
(Superseded to 36261)

$

$

Not available

380

Tecumseh 632257

Carburetor (Incl. 184)

$121.99

$

In Stock, only 1 left!

0

390

Tecumseh 590420

Rewind Starter
(Superseded to 590420A)

$68.99

$

In Stock, only 1 left!

0

400

Tecumseh 33235

* Gasket Set (Incl. items marked PK in notes) Incl. part #'s 27272 (2), 2789 6 (2), 27913 (1), 27915 (2), 27930 (1 ), 28938B (1), 29673 (1), 30684 (1), 31688 (1), 33355 (1)
(Superseded to 33235A)

$23.99

$

In Stock, only 4 left!

0

420

Tecumseh 730225

SAE 30 4-Cycle Engine Oil (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, only 2 left!

0

453

Tecumseh 29538

Engine Mounting Base

$17.99

$

Usually ships in 3-12 days

0

454

Tecumseh 650542

Screw, 5/16-18 x 3/4"

$1.99

$

In Stock, only 3 left!

0
