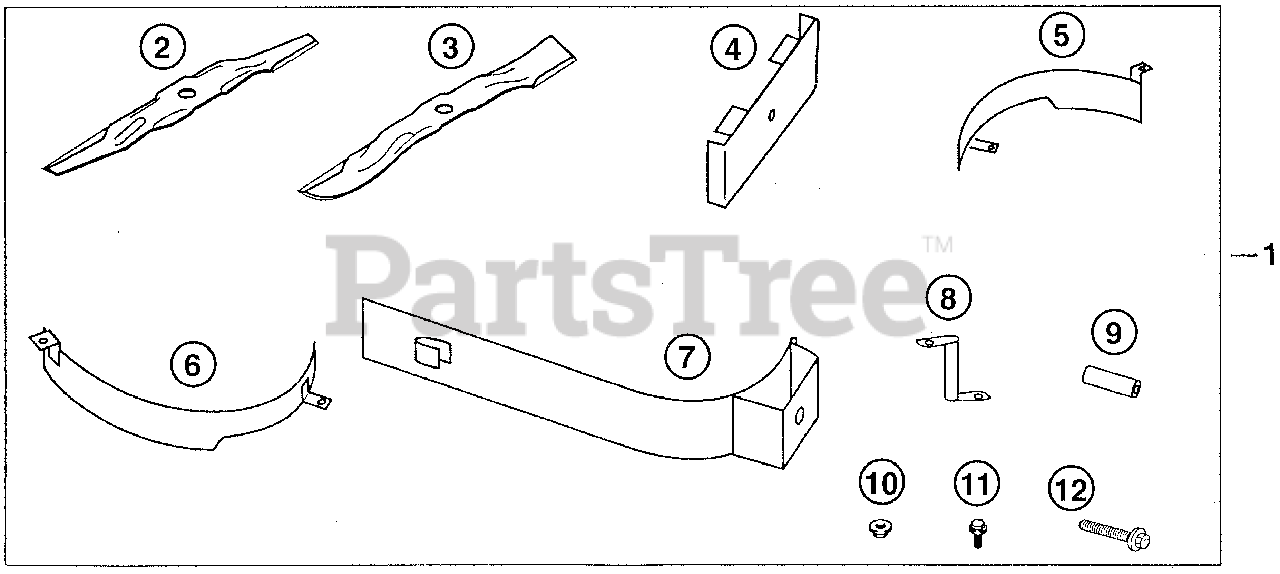

H4518 H HSAC/A (MZAT) - Honda Lawn Tractor, Made in Japan (SN: MZAT-4000001 - MZAT-4099999) MULCHING KIT (42 DECK) Parts Diagram

Lawn Tractor, Made in Japan

MULCHING KIT (42 DECK) Parts Diagram

  • Title
1

Honda 06764-758-N00

MULCH KIT (42")

$

$

Not available

2

Honda 72511-758-B00

BLADE, LOW-LIFT

$122.99

$

Usually ships in 3-6 days

0

3

Honda 72513-758-980

BLADE, ROTARY

$33.99

$

In Stock, only 2 left!

0

4

Honda 76265-758-N00

PLATE, DISCHARGE

$

$

Currently unavailable

5

Honda 76267-758-B00

GUIDE A, SWIRL

$

$

Not available

6

Honda 76268-758-B00

GUIDE B, SWIRL

$

$

Not available

7

Honda 76269-758-B00

GUIDE C, SWIRL

$

$

Not available

8

Honda 76276-758-N00

ROD, SWIRL

$

$

Currently unavailable

9

Honda 76289-758-B00

SPACER, GUIDE

$11.99

$

Usually ships in 3-6 days

0

10

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

11

Honda 95701-08015-10

BOLT, FLANGE (8X15) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 95701-10060-10

BOLT, FLANGE (10X60) (NOT AVAILABLE)

$

$

Currently unavailable
