H4518 H HSA/D (MZAT) - Honda Lawn Tractor, Made in Japan (SN: MZAT-4000001 - MZAT-4099999) FRONT AXLE Parts Diagram

Lawn Tractor, Made in Japan

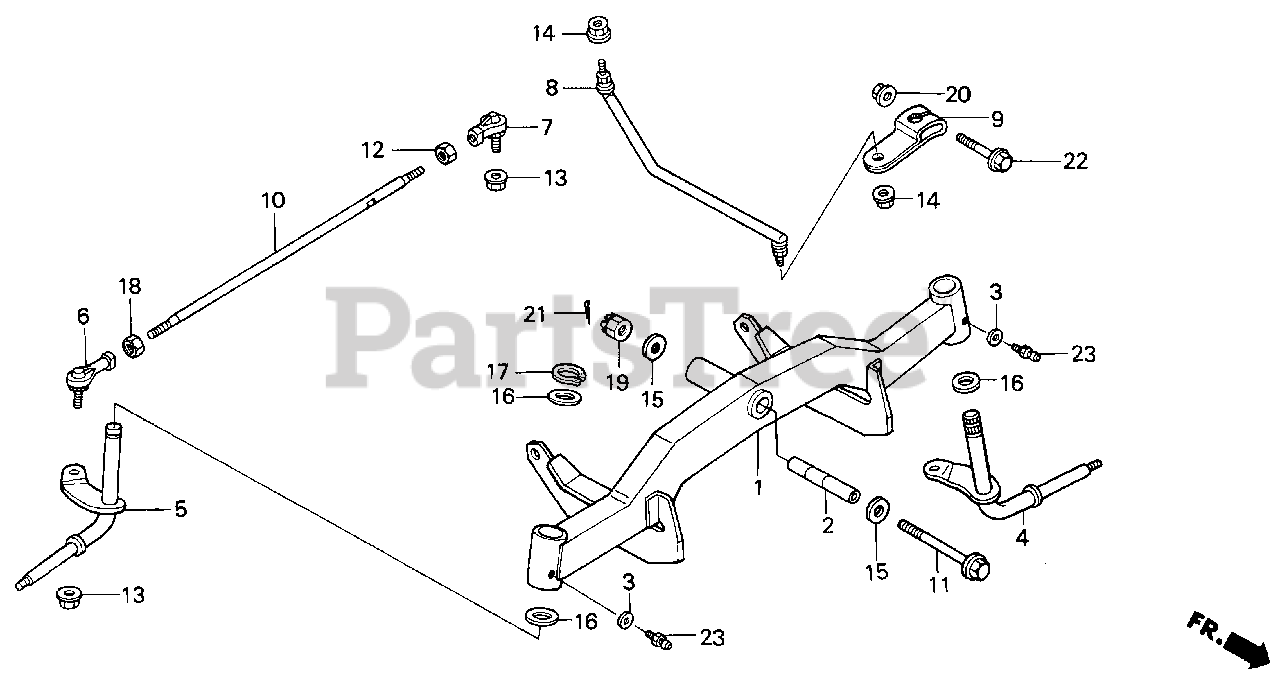

FRONT AXLE Parts Diagram

  • Title
1

Honda 44110-758-800

SEE PART DETAILS - PRI; AXLE, FR.

$

$

Not available

2

Honda 44121-758-000

COLLAR, FR. AXLE

$37.99

$

Usually ships in 3-6 days

0

3

Honda 50618-KE8-000

COLLAR (6.5X11X3)

$3.99

$

Usually ships in 3-6 days

0

4

Honda 51210-758-010

KNUCKLE, L.

$145.99

$

Usually ships in 3-6 days

0

5

Honda 51220-758-020

KNUCKLE, R.

$145.99

$

Usually ships in 3-6 days

0

6

Honda 53157-750-003

SEE PART DETAILS - SUP; JOINT, R. BALL

$

$

Not available

6

Honda 53157-758-003

SEE PART DETAILS - PRI; JOINT, R. BALL

$

$

Not available

7

Honda 53158-750-003

SEE PART DETAILS - SUP; JOINT, L. BALL

$

$

Currently unavailable

7

Honda 53158-758-003

SEE PART DETAILS - PRI; JOINT, L. BALL

$

$

Not available

8

$

$

Not available

9

Honda 53523-758-010

ARM, KNUCKLE

$39.99

$

Usually ships in 3-6 days

0

10

$46.99

$

Usually ships in 3-6 days

0

11

Honda 90100-750-000

BOLT, FLANGE (12X120)

$18.99

$

Usually ships in 3-6 days

0

12

Honda 90303-752-000

NUT, L. HEX. (10MM)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90304-GA6-003

NUT, AXLE (10MM)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90306-KF0-003

NUT, FLANGE (12MM)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90421-750-000

WASHER, PLAIN (12MM)

$7.99

$

Usually ships in 3-6 days

0

16

Honda 90452-413-000

WASHER, THRUST (20MM)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90601-758-003

CIRCLIP (OUTER) (20MM)

$5.99

$

Usually ships in 3-6 days

0

18

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

19

Honda 94011-12280-0S

NUT, CASTLE (12MM)

$

$

Not available

20

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

21

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

22

Honda 95700-08050-08

SEE PART DETAILS - SUP; BOLT, FLANGE (8X50)

$

$

Currently unavailable

22

Honda 95701-08050-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50)

$3.49

$

Usually ships in 3-6 days

0

23

Honda 96201-10000

FITTING, GREASE (A.76)

$3.49

$

Usually ships in 3-6 days

0
