H4518 H HSA/C (MZAT) - Honda Lawn Tractor, Made in Japan (SN: MZAT-3000001 - MZAT-3999999) INSTRUMENT PANEL Parts Diagram

Lawn Tractor, Made in Japan

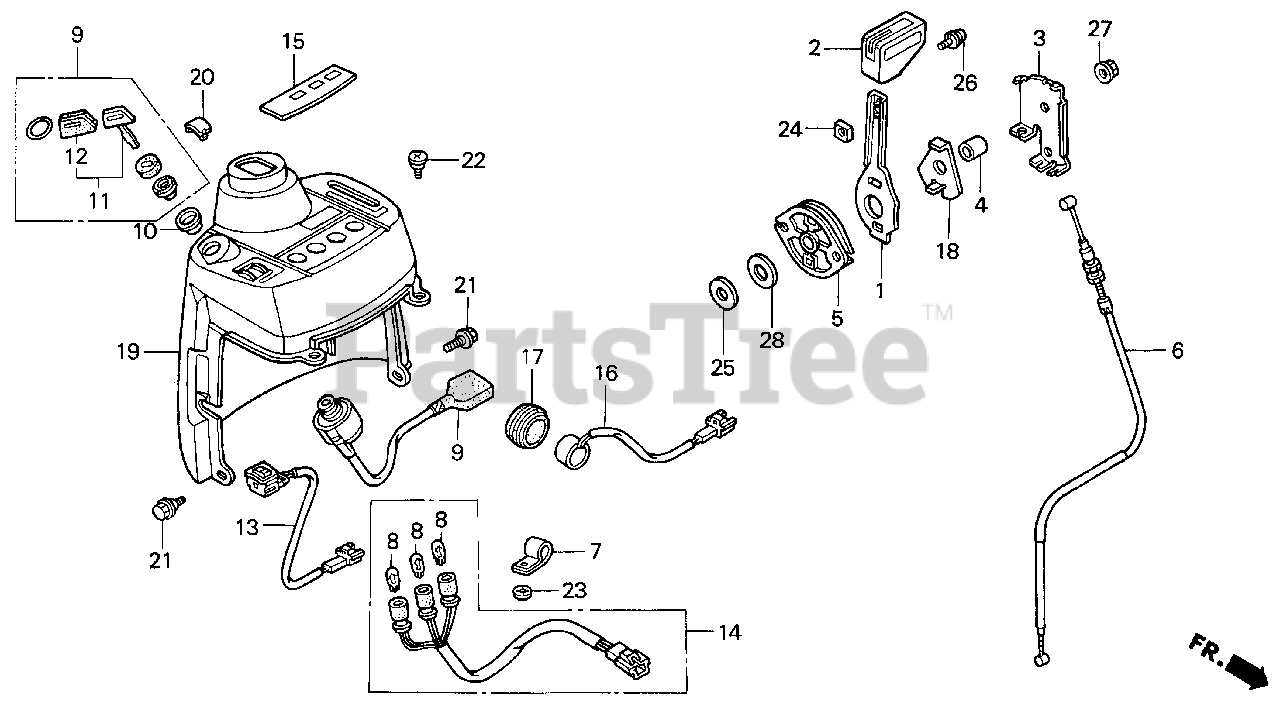

INSTRUMENT PANEL Parts Diagram

  • Title

1

Honda 17851-758-000

LEVER, THROTTLE

$14.99

$

Usually ships in 3-6 days

0

2

Honda 17853-763-A01

KNOB, THROTTLE LEVER

$19.99

$

Usually ships in 3-6 days

0

3

Honda 17876-758-010

SEE PART DETAILS - PRI; BRACKET, THROTTLE LEVER

$20.99

$

Usually ships in 3-6 days

0

4

Honda 17879-758-000

COLLAR, THROTTLE LEVER

$2.99

$

Usually ships in 3-6 days

0

5

Honda 17883-758-000

REEL, THROTTLE CABLE

$11.99

$

Usually ships in 3-6 days

0

6

Honda 04901-758-P00

SEE PART DETAILS - PRI; CABLE, THROTTLE

$

$

Not available

7

Honda 30564-ZE8-003

CLAMP, IGNITION WIRE

$3.49

$

Usually ships in 3-6 days

0

8

Honda 34908-GA7-701

SEE PART DETAILS - SUP; BULB, WEDGE BASE (12V 3.4W)
(Superseded to 37237-SA5-003)

$6.49

$

Usually ships in 3-6 days

0

8

Honda 37102-567-009

SEE PART DETAILS - SUP; BULB (12V3.4W) (158)
(Superseded to 37237-SA5-003)

$6.49

$

Usually ships in 3-6 days

0

8

Honda 37237-SA5-003

SEE PART DETAILS - PRI; BULB (12V3.4W2CP) (158) (NS)

$6.49

$

Usually ships in 3-6 days

0

8

Honda 37237-SA5-004

SEE PART DETAILS - SUP; BULB (12V3.4W) (158)
(Superseded to 37237-SA5-003)

$6.49

$

Usually ships in 3-6 days

0

9

Honda 35100-758-013

SWITCH ASSY., COMBINATION

$

$

Not available

10

Honda 35102-758-010

BASE, COMBINATION SWITCH

$

$

Not available

11

Honda 35110-VA3-902

SEE PART DETAILS - SUP; KEY ASSY., COMBINATION SWITCH
(Superseded to 35110-VA3-903)

$10.99

$

Usually ships in 3-6 days

0

11

Honda 35110-VA3-903

SEE PART DETAILS - PRI; KEY ASSY., COMBINATION SWITCH

$10.99

$

Usually ships in 3-6 days

0

12

Honda 35113-459-730

CAP, KEY

$7.49

$

Usually ships in 3-6 days

0

13

Honda 35150-758-003

SWITCH ASSY., LIGHTING

$

$

Not available

14

Honda 37158-758-003

SOCKET

$46.99

$

Usually ships in 3-6 days

0

15

Honda 37166-758-003

PANEL, INDICATOR

$

$

Not available

16

Honda 38410-758-003

BUZZER, WARNING

$79.99

$

Usually ships in 3-6 days

0

17

Honda 46555-752-000

GROMMET, PARKING BRAKE BUZZER

$9.49

$

Usually ships in 3-6 days

0

18

Honda 54227-952-010

STOPPER, REEL

$7.99

$

Usually ships in 3-6 days

0

19

Honda 77210-758-000ZA

PANEL, INSTRUMENT *NH247* (ASSEMBLY GRAY)

$

$

Not available

21

Honda 90111-147-000

BOLT, FLANGE (6MM)

$3.99

$

In Stock, only 4 left!

0

22

Honda 90123-750-000

SCREW, METER VISOR SETTING

$4.99

$

In Stock, Qty 6

0

23

Honda 90190-SA7-000

NUT, PUSH (5MM)

$4.49

$

Usually ships in 3-6 days

0

24

Honda 90411-750-000

NUT, SQUARE (4MM)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 91414-671-000

WASHER (20MM)

$7.49

$

Usually ships in 3-6 days

0

26

Honda 93892-04008-07

SCREW-WASHER (4X8)

$1.49

$

In Stock, only 4 left!

0

27

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0
