H4518 H HSA/C (MZAT) - Honda Lawn Tractor, Made in Japan (SN: MZAT-3000001 - MZAT-3999999) HEIGHT ADJUSTING LEVER Parts Diagram

Lawn Tractor, Made in Japan

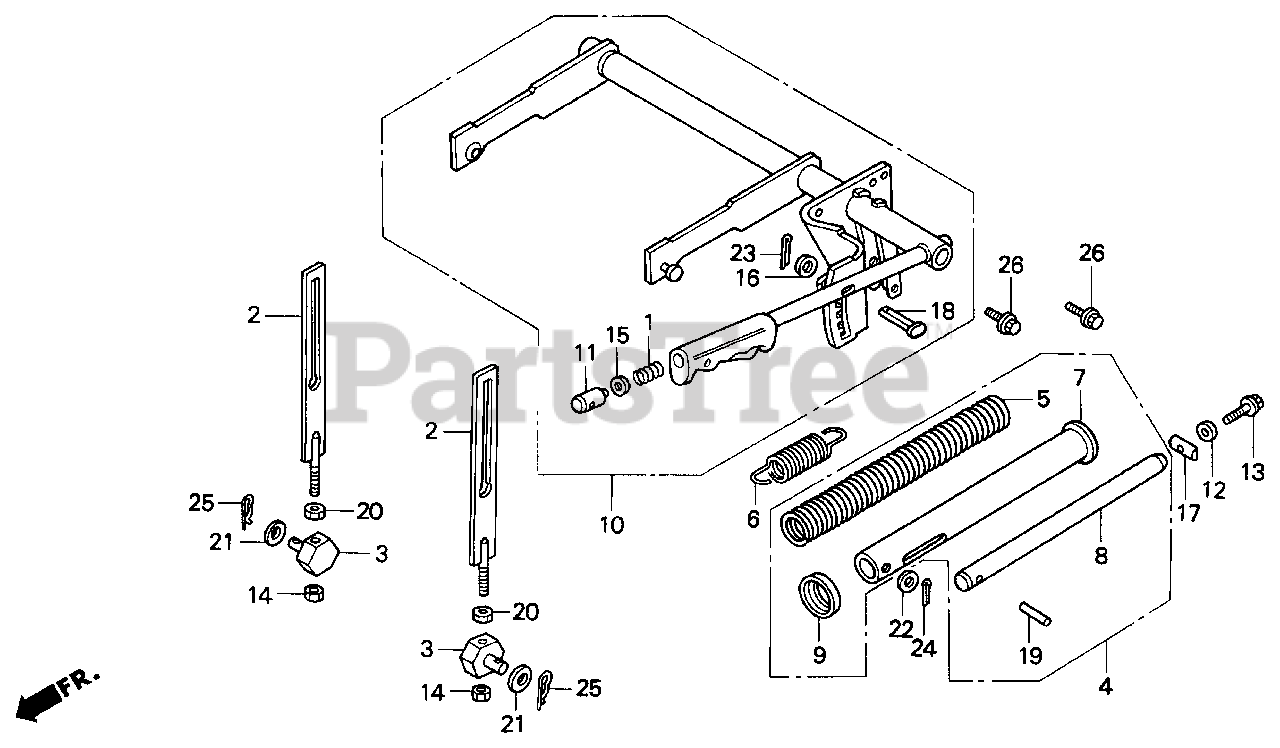

HEIGHT ADJUSTING LEVER Parts Diagram

  • Title
1

Honda 47143-750-300

SPRING, PUSH ROD

$4.49

$

Usually ships in 3-6 days

0

2

Honda 76177-758-010

ROD, CUTTER DECK LIFT

$

$

Not available

3

Honda 76186-758-000

PIN, RR. LINK ADJUSTING

$18.99

$

Usually ships in 3-6 days

0

4

Honda 76190-758-020

PIPE ASSY., COUNTER SPRING

$167.99

$

Usually ships in 3-6 days

0

5

Honda 76193-758-000

SPRING, DECK LIFT

$73.99

$

Usually ships in 3-6 days

0

6

Honda 76194-758-800

SPRING, DECK LIFT SUB

$32.99

$

Usually ships in 3-6 days

0

7

Honda 76195-758-010

PIPE (OUTER)

$69.99

$

Usually ships in 3-6 days

0

8

Honda 76196-758-000

PIPE (INNER)

$53.99

$

Usually ships in 3-6 days

0

9

Honda 76197-758-010

WASHER, SPRING GUIDE

$13.99

$

Usually ships in 3-6 days

0

10

Honda 76410-758-800ZA

LEVER ASSY., HEIGHT ADJUSTING *NH105* (MAT BLACK)

$

$

Not available

11

Honda 76413-763-A00ZA

KNOB, PUSH ROD *NH105* (MAT BLACK)

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90028-839-000

WASHER, PLAIN

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90105-758-000

BOLT (8X100)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 90305-HC0-770

NUT, SELF-LOCK (10MM)

$4.49

$

In Stock, only 4 left!

0

15

Honda 90408-KK0-000

WASHER (11MM)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90503-SA0-000

WASHER, PLAIN (9MM)

$6.49

$

Usually ships in 3-6 days

0

17

Honda 90751-758-000

PIN (14X40)

$16.99

$

Usually ships in 3-6 days

0

18

Honda 90756-763-A00

PIN, HEIGHT ADJUSTING LEVER

$7.49

$

Usually ships in 3-6 days

0

19

Honda 91151-758-003

ROLLER (6X49)

$5.99

$

Usually ships in 3-6 days

0

20

Honda 94001-10080-0S

NUT, HEX. (10MM)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 94102-10800

WASHER, PLAIN (10MM)

$4.99

$

In Stock, Qty 6

0

22

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, FLAT (12MM)

$

$

Not available

23

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

24

Honda 94201-20220

PIN, COTTER (2.0X22)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94201-20350

PIN, COTTER (2.0X35)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94252-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 8

0

26

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0
