H4514 H HSA/D (MZAS) - Honda Lawn Tractor, Made in Japan (SN: MZAS-4000001 - MZAS-4099999) P.T.O. CLUTCH (H4514H) Parts Diagram

Lawn Tractor, Made in Japan

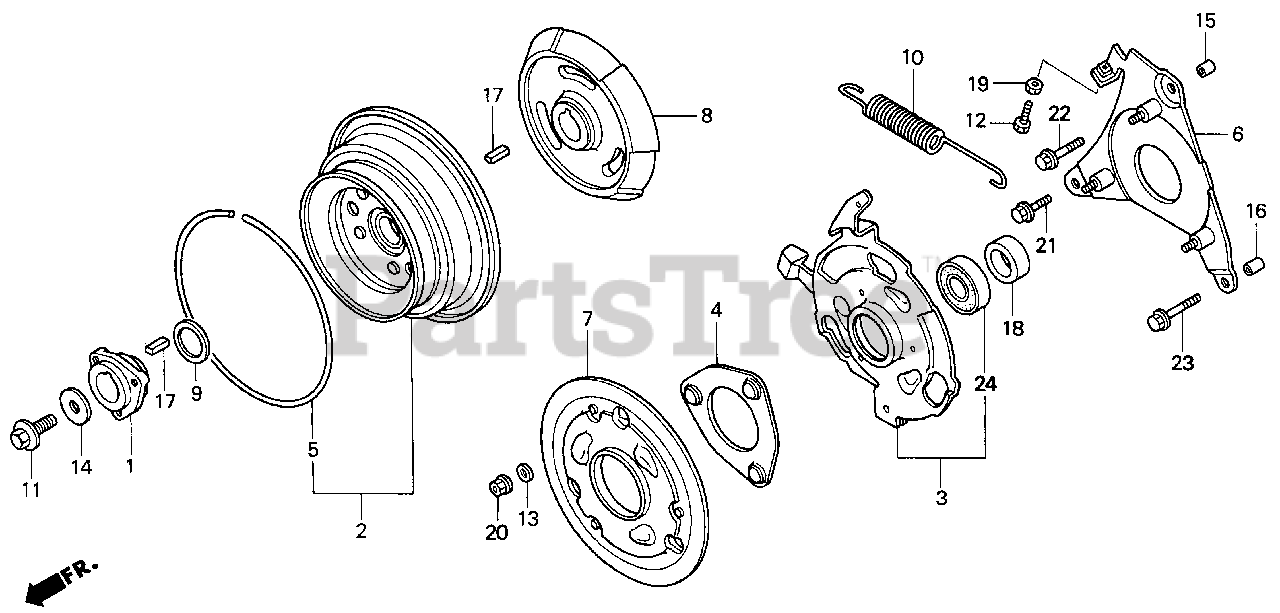

P.T.O. CLUTCH (H4514H) Parts Diagram

  • Title
1

Honda 19042-758-000

BOSS, COOLING FAN

$

$

Not available

2

Honda 75106-758-013

PULLEY ASSY., DRIVE

$349.99

$

Usually ships in 3-6 days

0

3

Honda 75110-758-003

PLATE, BALL CONTROL

$

$

Not available

4

Honda 75115-758-003

RETAINER, BALL

$27.99

$

Usually ships in 3-6 days

0

5

Honda 75119-758-000

RING, P.T.O. CLUTCH

$

$

Not available

6

Honda 75125-758-003

PLATE, BASE

$115.99

$

Usually ships in 3-6 days

0

7

Honda 75130-758-003

PLATE, BRAKE

$

$

Not available

8

Honda 75141-758-003

PLATE, DRIVE

$138.99

$

Usually ships in 3-6 days

0

9

Honda 75146-750-000

COLLAR, DISTANCE (25MM)

$8.49

$

In Stock, only 1 left!

0

10

Honda 75182-758-010

SPRING, RETURN

$

$

Not available

11

Honda 90101-758-000

BOLT, SPECIAL (8X30)

$

$

Not available

12

Honda 90103-732-000

BOLT, ADJUSTING

$4.99

$

In Stock, only 1 left!

0

13

Honda 90505-758-000

WASHER (6X17X1.6)

$

$

Not available

14

Honda 90501-758-000

WASHER, STEERING GEAR

$3.99

$

In Stock, only 2 left!

0

15

Honda 90601-KG8-000

PIN, DOWEL (10X23)

$

$

Not available

16

Honda 90701-399-000

PIN, DOWEL (10X28)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90743-VB2-000

KEY (7X7X18)

$

$

Not available

18

Honda 91551-758-000

COLLAR, DISTANCE (25X35X13)

$

$

Not available

19

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

20

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

23

Honda 95701-08045-00

BOLT, FLANGE (8X45)

$1.99

$

In Stock, Qty 20+

0

24

Honda 96150-60050-10

BEARING, RADIAL BALL (6005UU)

$25.99

$

Usually ships in 3-6 days

0
