H4514 H HSA/C (MZAS) - Honda Lawn Tractor, Made in Japan (SN: MZAS-3000001 - MZAS-3999999) WATER PUMP + TIMING BELT (H4514H) Parts Diagram

Lawn Tractor, Made in Japan

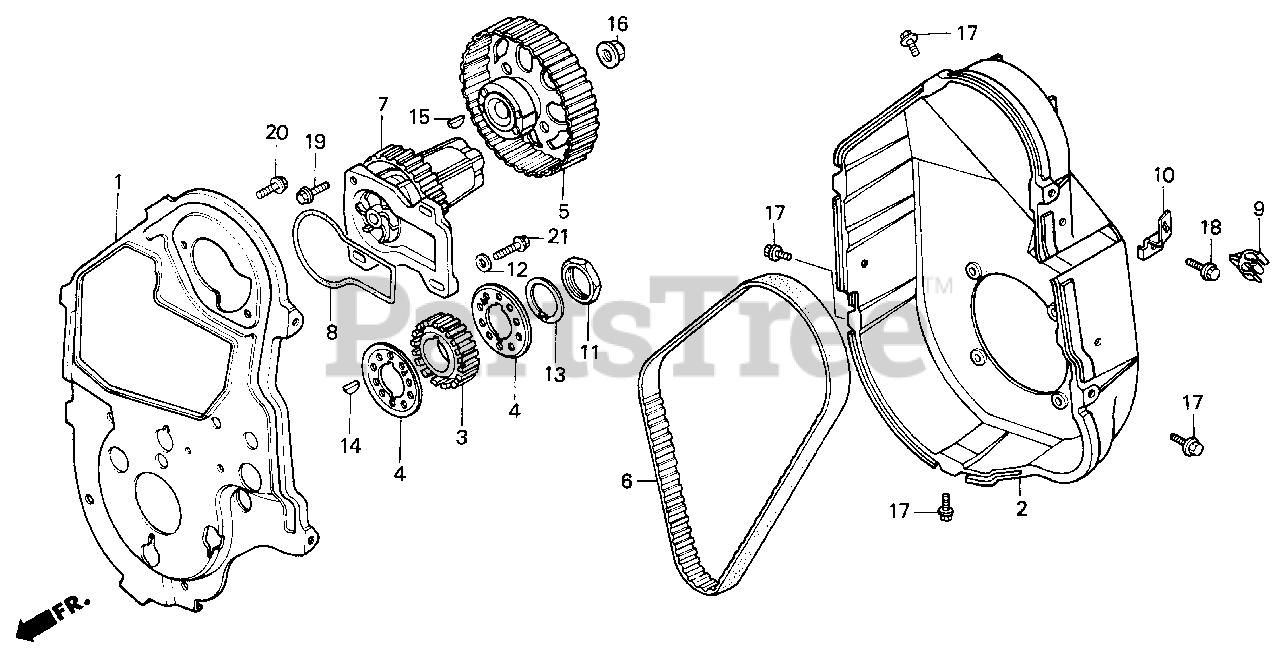

WATER PUMP + TIMING BELT (H4514H) Parts Diagram

  • Title

1

Honda 11810-ZA0-700

COVER B, TIMING BELT

$115.99

$

Usually ships in 3-6 days

0

2

Honda 11820-ZA0-700

COVER A, TIMING BELT

$151.99

$

Usually ships in 3-6 days

0

3

Honda 14311-ZA0-005

PULLEY, TIMING

$42.99

$

Usually ships in 3-6 days

0

4

Honda 14312-ZA0-000

FLANGE, TIMING PULLEY

$5.99

$

Usually ships in 3-6 days

0

5

Honda 14320-ZA0-701

PULLEY, CAMSHAFT

$98.99

$

Usually ships in 3-6 days

0

6

Honda 14400-ZA0-003

BELT, TIMING

$61.99

$

In Stock, only 1 left!

0

7

Honda 19200-ZA0-010

SEE PART DETAILS - SUP; WATER PUMP
(Superseded to 19200-ZA0-020)

$211.99

$

Usually ships in 3-6 days

0

8

Honda 19222-ZA0-004

O-RING, WATER PUMP

$5.99

$

Usually ships in 3-6 days

0

9

Honda 38685-SA5-673

CLIP, RECEIVER PIPE

$

$

Not available

10

Honda 38686-ZA0-700

BRACKET, IGNITION WIRE CLIP

$5.99

$

Usually ships in 3-6 days

0

11

Honda 90202-ZA0-000

NUT, LOCK (30MM)

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90401-ZA0-000

WASHER, PLAIN (6.5X15)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 90451-ZA0-000

WASHER, LOCK (30MM)

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18)

$3.99

$

In Stock, Qty 17

0

15

Honda 90741-921-000

SEE PART DETAILS - SUP; KEY, CAM PULLEY
(Superseded to 90741-969-000)

$

$

Not available

15

Honda 90741-969-000

SEE PART DETAILS - PRI; KEY, WOODRUFF (16X12)

$

$

Not available

16

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

17

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

18

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

18

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

19

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 96001-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 5

0

21

Honda 96001-06022-00

BOLT, FLANGE (6X22)

$1.99

$

In Stock, only 3 left!

0
