H4514 H HSA/C (MZAS) - Honda Lawn Tractor, Made in Japan (SN: MZAS-3000001 - MZAS-3999999) RADIATOR (H4514H, H4518H) Parts Diagram

Lawn Tractor, Made in Japan

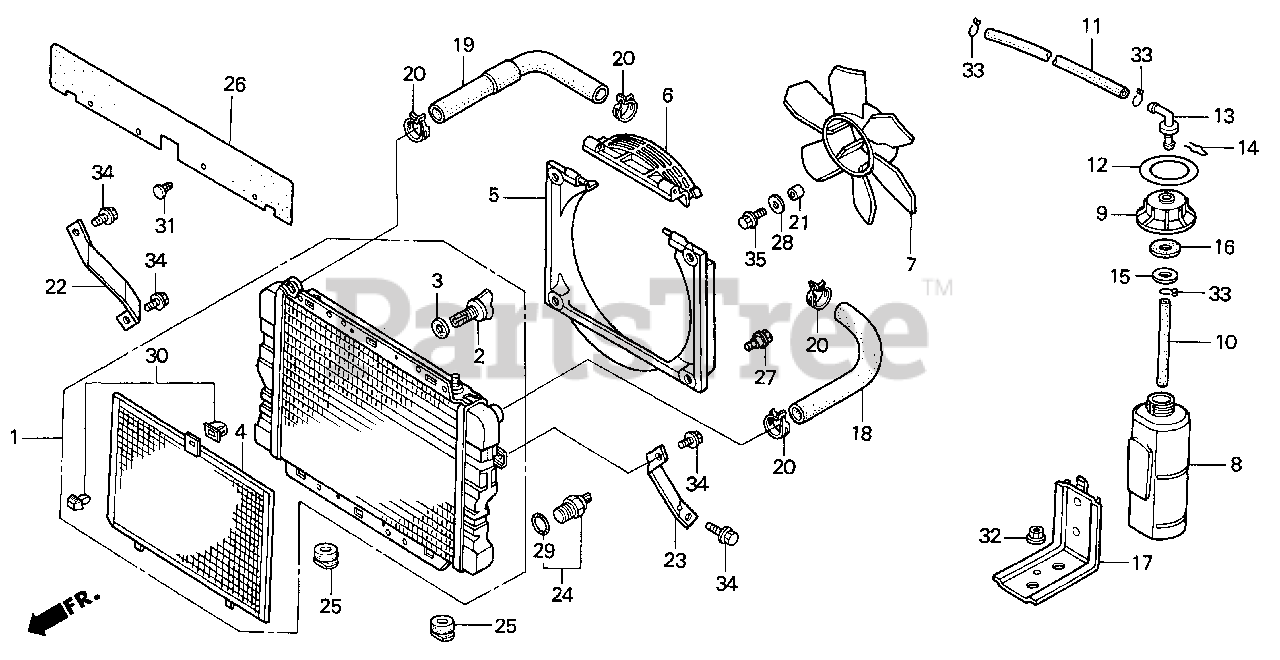

RADIATOR (H4514H, H4518H) Parts Diagram

  • Title

1

Honda 19000-758-003

RADIATOR ASSY.

$

$

Not available

2

Honda 19011-PA0-004

VALVE, DRAIN (TOYO)

$17.99

$

In Stock, only 1 left!

0

3

Honda 19012-PA0-004

GASKET, DRAIN (TOYO)

$5.99

$

In Stock, only 1 left!

0

4

Honda 19013-758-003

SCREEN, FR.

$

$

Not available

5

Honda 19015-758-000

SHROUD, RADIATOR (LOWER)

$

$

Not available

6

Honda 19016-758-000

SHROUD, RADIATOR (UPPER)

$

$

Not available

7

Honda 19040-758-000

FAN, COOLING

$

$

Not available

8

Honda 19101-758-000

TANK, RESERVE

$

$

Not available

9

Honda 19102-PA0-020

CAP, RESERVE TANK

$

$

Not available

10

Honda 19103-PA0-000

HOSE, RESERVE TANK

$23.99

$

Usually ships in 3-6 days

0

11

Honda 19104-758-000

TUBE, RESERVE TANK

$7.99

$

Usually ships in 3-6 days

0

12

Honda 19105-PA0-010

MARK, RESERVE TANK

$13.99

$

Usually ships in 3-6 days

0

13

Honda 19106-PA0-020

JOINT, RESERVE TANK

$4.99

$

Usually ships in 3-6 days

0

14

Honda 19107-PA0-000

CLIP, RESERVE TANK JOINT

$26.99

$

Usually ships in 3-6 days

0

15

Honda 19108-680-000

WASHER, RESERVE TANK

$3.99

$

Usually ships in 3-6 days

0

16

Honda 19113-758-000

GASKET, RESERVE TANK

$8.99

$

Usually ships in 3-6 days

0

17

Honda 19131-758-010

BRACKET, RESERVE TANK

$16.99

$

Usually ships in 3-6 days

0

18

Honda 19501-758-000

HOSE A, WATER

$

$

Not available

19

Honda 19502-758-000

HOSE B, WATER

$

$

Not available

20

Honda 19511-679-003

CLIP, WATER HOSE

$13.99

$

Usually ships in 3-6 days

0

21

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

22

Honda 19516-758-020

PLATE, R. RADIATOR HOLDER

$13.99

$

Usually ships in 3-6 days

0

23

Honda 19517-758-010

PLATE, L. RADIATOR HOLDER

$12.99

$

Usually ships in 3-6 days

0

24

Honda 37760-MR1-003

SWITCH ASSY., THERMO

$89.99

$

Usually ships in 3-6 days

0

25

Honda 50329-425-000

RUBBER B, BATTERY BOX

$3.99

$

In Stock, only 2 left!

0

26

Honda 60122-758-000

SEAL, RADIATOR (UPPER)

$31.99

$

Usually ships in 3-6 days

0

27

Honda 90111-SM4-003

BOLT, BUMPER

$6.49

$

Usually ships in 3-6 days

0

28

Honda 90401-ZA0-000

WASHER, PLAIN (6.5X15)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 91307-PH7-660

SEE PART DETAILS - PRI; O-RING (13.5X1.4)

$3.99

$

In Stock, only 2 left!

0

30

Honda 91451-758-003

CLAMP

$

$

Not available

31

Honda 90666-SA0-003A9

SEE PART DETAILS - SUP; CLIP, TRIM (5MM) *NH1L* (BLACK)
(Superseded to 90666-SA0-003A3)

$8.49

$

Usually ships in 3-6 days

0

32

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

33

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 5

0

34

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

35

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
