H4514 H HSA/C (MZAS) - Honda Lawn Tractor, Made in Japan (SN: MZAS-3000001 - MZAS-3999999) MUFFLER (H4514H) Parts Diagram

Lawn Tractor, Made in Japan

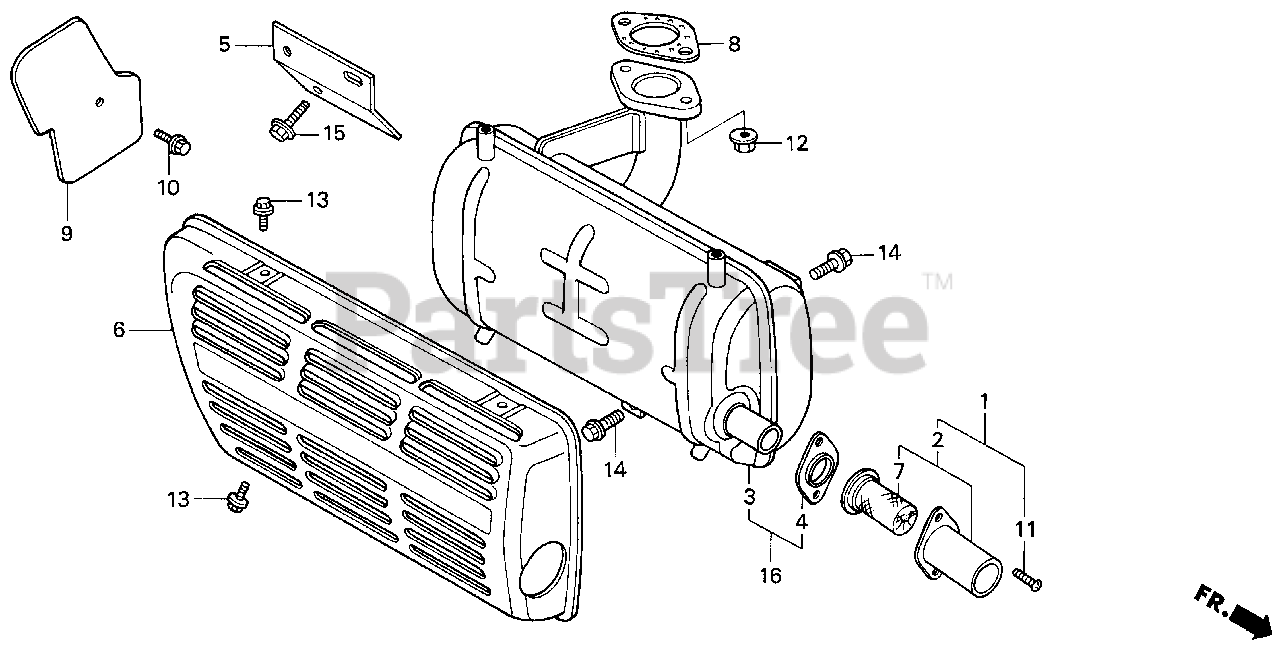

MUFFLER (H4514H) Parts Diagram

  • Title

1

Honda 183A0-758-000

ARRESTER KIT

$

$

Not available

2

Honda 183A5-ZA0-630

CAP SET, ARRESTER

$

$

Not available

3

Honda 18310-758-610

MUFFLER

$398.99

$

Usually ships in 3-6 days

0

4

Honda 18315-ZA0-630

BASE, ARRESTER

$16.99

$

Usually ships in 3-6 days

0

5

Honda 18318-758-000

PLATE, MUFFLER SUPPORT

$17.99

$

Usually ships in 3-6 days

0

6

Honda 18321-758-010

PROTECTOR, MUFFLER

$

$

Not available

7

Honda 18355-890-630

ARRESTER, SPARK

$

$

Not available

8

Honda 18381-889-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

$6.49

$

Usually ships in 3-6 days

0

9

Honda 18515-758-010

GUIDE, AIR

$

$

Not available

10

Honda 93405-06012-08

BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

12

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

13

Honda 95701-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 1 left!

0

14

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 18310-758-610

MUFFLER

$398.99

$

Usually ships in 3-6 days

0
