H4514 H HSA/C (MZAS) - Honda Lawn Tractor, Made in Japan (SN: MZAS-3000001 - MZAS-3999999) CYLINDER (H4514H) Parts Diagram

Lawn Tractor, Made in Japan

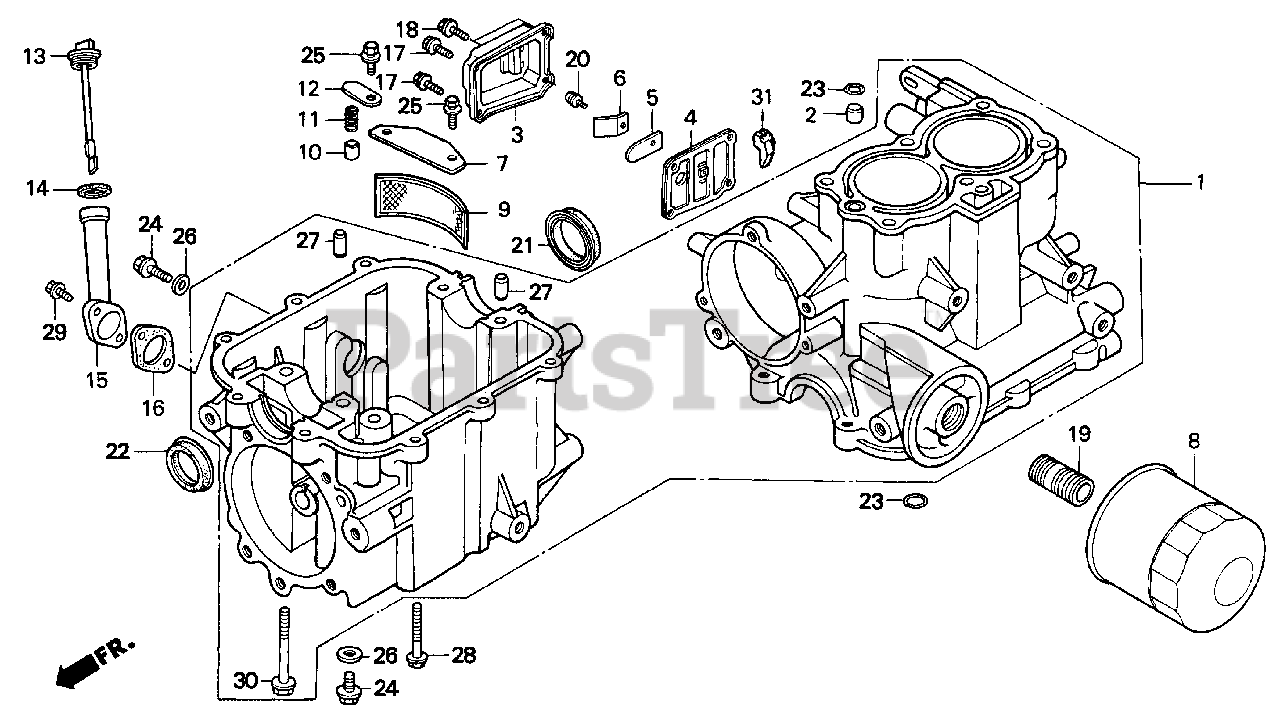

CYLINDER (H4514H) Parts Diagram

  • Title

1

Honda 12000-ZA0-702

SEE PART DETAILS - PRI; CYLINDER ASSY.

$1276.99

$

Usually ships in 3-6 days

0

2

Honda 12125-ZA0-000

SEE PART DETAILS - SUP; ORIFICE, OIL CONTROL

$

$

Not available

3

Honda 12360-ZA0-700

COVER, BREATHER

$23.99

$

Usually ships in 3-6 days

0

4

Honda 12370-ZA0-701

SEE PART DETAILS - PRI; PLATE, BREATHER
(Superseded to 12370-ZA0-981)

$18.99

$

Usually ships in 3-6 days

0

4

Honda 12370-ZA0-981

SEE PART DETAILS - PRI; PLATE, BREATHER

$18.99

$

Usually ships in 3-6 days

0

5

Honda 12372-ZA0-701

PLATE, VALVE

$8.49

$

Usually ships in 3-6 days

0

6

Honda 12374-ZA0-701

STOPPER, VALVE

$4.99

$

Usually ships in 3-6 days

0

7

Honda 15334-ZA0-000

PLATE, OIL FILTER

$9.99

$

Usually ships in 3-6 days

0

8

Honda 15400-PFB-004

SEE PART DETAILS - SUP; FILTER, OIL
(Superseded to 15400-ZZ3-003)

$22.99

$

In Stock, only 2 left!

0

8

Honda 15400-PFB-014

SEE PART DETAILS - PRI; FILTER, OIL (TOYO ROKI)
(Superseded to 15400-ZZ3-003)

$22.99

$

In Stock, only 2 left!

0

9

Honda 15421-ZA0-000

SCREEN, OIL FILTER

$16.99

$

Usually ships in 3-6 days

0

10

Honda 15473-ZA0-000

VALVE, CHECK

$10.99

$

Usually ships in 3-6 days

0

11

Honda 15474-881-000

SPRING, VALVE

$5.99

$

Usually ships in 3-6 days

0

12

Honda 15475-ZA0-000

PLATE, VALVE

$4.99

$

Usually ships in 3-6 days

0

13

Honda 15620-758-000

CAP, OIL FILLER

$20.99

$

Usually ships in 3-6 days

0

14

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

15

Honda 15632-750-800

PIPE, OIL FILLER

$84.99

$

Usually ships in 3-6 days

0

16

Honda 15635-ZA0-800

GASKET, OIL PIPE

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 1267849.

$1.99

$

In Stock, Qty 20+

0

17

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: Use up to Engine SN 1267848.

$2.99

$

In Stock, only 4 left!

0

18

Honda 90014-952-000

BOLT, FLANGE (6X14)

$2.99

$

In Stock, only 4 left!

0

19

Honda 90015-590-000

PIPE, OIL PASSAGE

$20.99

$

Usually ships in 3-6 days

0

20

Honda 90092-657-000

SCREW-WASHER (5X8)

$2.99

$

In Stock, only 4 left!

0

21

Honda 91201-ZA0-003

OIL SEAL (33X48X7)

$14.99

$

In Stock, only 1 left!

0

22

Honda 91205-ZA0-003

OIL SEAL (30X44X7)

$12.99

$

In Stock, only 4 left!

0

23

Honda 15142-PH3-003

SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI)

$3.99

$

In Stock, only 1 left!

0

24

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

25

Honda 93402-06012-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 93412-06012-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X12)

$

$

Currently unavailable

26

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

27

Honda 94301-10160

PIN A, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

28

Honda 95701-06028-08

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$0.99

$

Usually ships in 3-6 days

0

30

Honda 95701-08055-00

BOLT, FLANGE (8X55)

$3.49

$

In Stock, only 2 left!

0
