H4514 H HSA/C (MZAS) - Honda Lawn Tractor, Made in Japan (SN: MZAS-3000001 - MZAS-3999999) CARBURETOR (H4514H) Parts Diagram

Lawn Tractor, Made in Japan

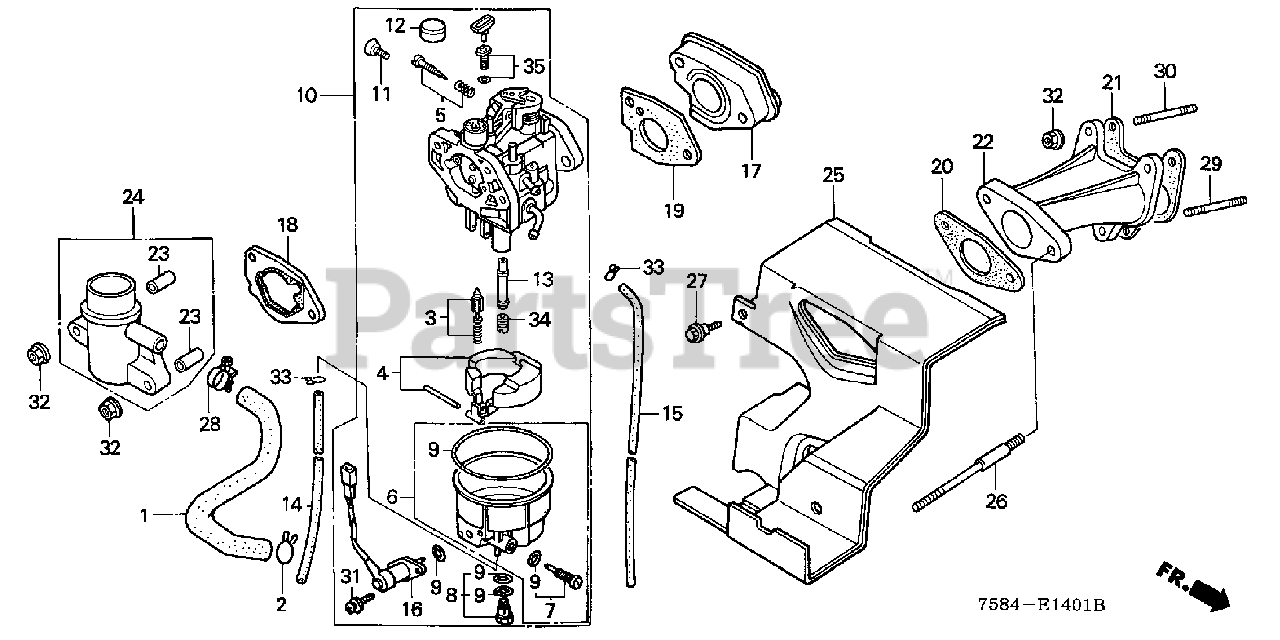

CARBURETOR (H4514H) Parts Diagram

  • Title

1

Honda 12315-ZA0-L00

TUBE, BREATHER

$

$

Not available

2

Honda 15772-551-000

CLIP, BREATHER TUBE

$2.99

$

In Stock, Qty 5

0

3

Honda 16011-ZA0-931

VALVE SET, FLOAT

$43.99

$

Usually ships in 3-6 days

0

4

Honda 16013-ZA0-931

FLOAT SET

$49.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$14.99

$

In Stock, only 1 left!

0

6

Honda 16023-ZA0-701

CHAMBER SET, FLOAT

Note: Use up to Engine SN BE27C A.

$

$

Not available

6

Honda 16023-ZA0-702

CHAMBER SET, FLOAT

Note: Use from Engine SN BE27C B.

$82.99

$

In Stock, only 1 left!

0

7

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$14.99

$

Usually ships in 3-6 days

0

8

Honda 16028-ZA0-981

SCREW SET
(Superseded to 16028-ZA0-982)

$22.99

$

In Stock, only 1 left!

0

9

Honda 16040-ZA0-701

GASKET SET (NOT AVAILABLE)

Note: Use up to Engine SN BE27C A.

$

$

Currently unavailable

9

Honda 16040-ZA0-702

GASKET SET

Note: Use from Engine SN BE27C B.

$20.99

$

In Stock, only 1 left!

0

10

Honda 16100-ZA0-707

CARBURETOR ASSY. (NOT AVAILABLE)

Note: Use up to Engine SN 1218229.

$

$

Not available

10

Honda 16100-ZA0-708

CARBURETOR ASSY. (BE27C B)

Note: Use from Engine SN 1218230.

$

$

Not available

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

12

Honda 16148-141-881

CAP, CHOKE LEVER DUST

$6.49

$

In Stock, only 1 left!

0

13

Honda 16166-ZA0-702

NOZZLE, MAIN

$33.99

$

Usually ships in 3-6 days

0

14

Honda 16198-ZA0-L00

TUBE, FUEL DRAIN

$17.99

$

Usually ships in 3-6 days

0

15

Honda 16199-ZA0-L00

TUBE, AIR VENT

$

$

Not available

16

Honda 16200-ZA0-L01

VALVE ASSY., SOLENOID (NOT AVAILABLE)

Note: Use up to Engine SN BE27C A.

$

$

Not available

16

Honda 16200-ZA0-L02

VALVE ASSY., SOLENOID

Note: Use from Engine SN BE27C B.

$68.99

$

In Stock, only 2 left!

0

17

Honda 16211-ZA0-L00

INSULATOR, CARBURETOR

$

$

Not available

18

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$11.99

$

In Stock, only 1 left!

0

19

Honda 16221-ZA0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZA0-800)

Note: Use up to Engine SN 1270384.

$2.49

$

In Stock, Qty 20+

0

19

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

20

Honda 16223-ZA0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 20+

0

21

Honda 16226-ZA0-800

GASKET, IN. MANIFOLD

$2.99

$

In Stock, only 2 left!

0

22

Honda 17100-ZA0-700

MANIFOLD, IN.

$72.99

$

Usually ships in 3-6 days

0

23

Honda 17238-ZE7-010

COLLAR, AIR CLEANER

$4.99

$

Usually ships in 3-6 days

0

24

Honda 17410-ZA0-L00

ELBOW, AIR CLEANER

$

$

Not available

25

Honda 18210-ZA0-L02

COVER, EX.

$

$

Not available

26

Honda 90042-ZE8-700

BOLT, STUD (8X138.5)

$8.99

$

Usually ships in 3-6 days

0

27

Honda 90114-GJ5-000

BOLT, FLANGE (6MM)

$

$

Not available

28

Honda 91410-ZA0-000

SEE PART DETAILS - SUP; CLIP A18, TUBE

$

$

Currently unavailable

29

Honda 92700-06032-0B

BOLT, STUD (6X32)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 92900-06028-0B

BOLT, STUD (6X28)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 3 left!

0

32

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

33

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

34

Honda 99101-ZF5-0880

SEE PART DETAILS - SUP; JET, MAIN (#88)
(Superseded to 99101-ZH8-0880)

$7.99

$

In Stock, only 1 left!

0

34

Honda 99101-ZF5-0900

SEE PART DETAILS - SUP; JET, MAIN (#90)
(Superseded to 99101-ZH8-0900)

$7.99

$

In Stock, only 2 left!

0

34

Honda 99101-ZF5-0920

JET, MAIN (#92)

$10.99

$

Usually ships in 3-6 days

0

35

Honda 99204-ZA0-0450

JET SET, PILOT (#45)

$23.99

$

In Stock, only 1 left!

0
