H4514 H HSA/B (MZAS) - Honda Lawn Tractor, Made in Japan (SN: MZAS-2000001 - MZAS-2999999) PARKING BRAKE Parts Diagram
Lawn Tractor, Made in Japan

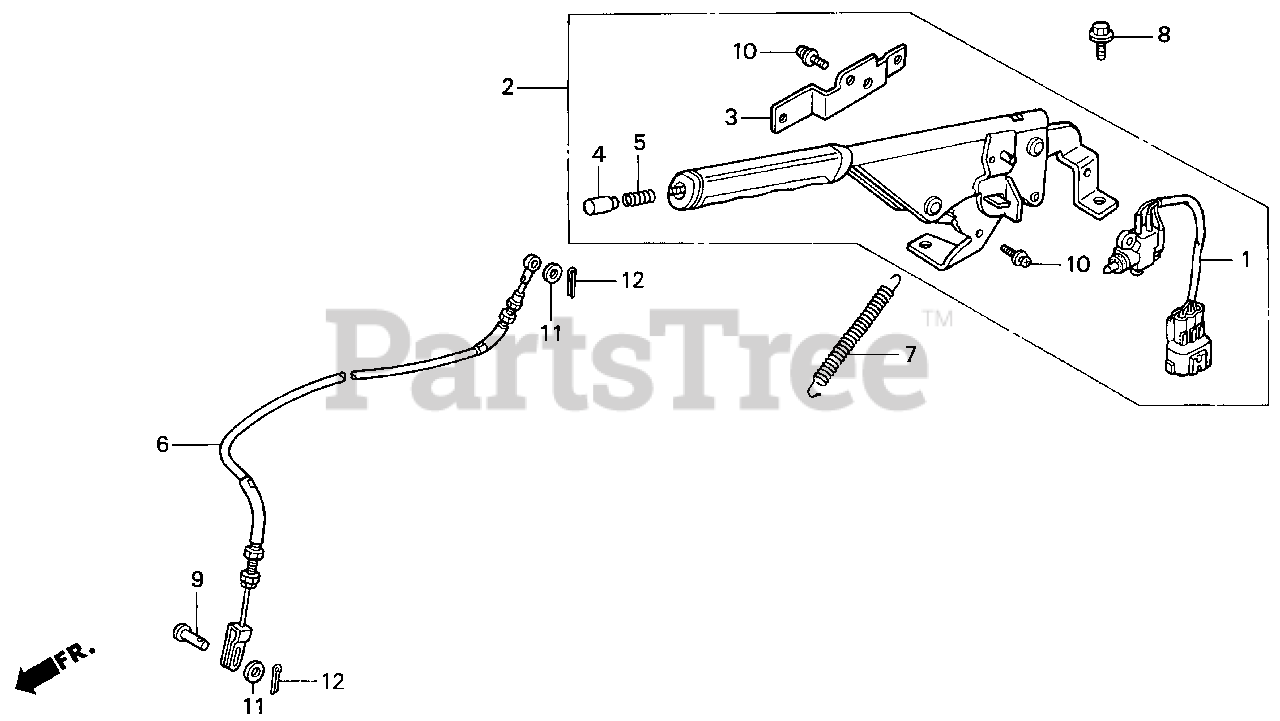

PARKING BRAKE Parts Diagram
Honda 35620-758-003
SWITCH ASSY., PARKING BRAKE
$
$
Not available
Honda 47100-758-000ZA
LEVER ASSY., PARKING BRAKE *YR161* (ORANGE)
$207.99
$
Usually ships in 3-6 days
Honda 47132-758-000
BRACKET, SWITCH
$8.99
$
Usually ships in 3-6 days
Honda 47142-763-A00ZA
KNOB, PUSH ROD *YR161* (ORANGE)
$8.99
$
Usually ships in 3-6 days
Honda 47143-671-310
SPRING, PUSH ROD
$
$
Not available
Honda 47270-758-000
CABLE, PARKING BRAKE
$
$
Not available
Honda 47135-758-000
SPRING, PARKING BRAKE LEVER
$
$
Not available
Honda 90649-SB0-671
BOLT, FLANGE (8X16)
$10.99
$
Usually ships in 3-6 days
Honda 90755-751-010
PIN, CLUTCH JOINT
$4.49
$
Usually ships in 3-6 days
Honda 93892-04012-08
SCREW-WASHER (4X12)
$0.99
$
Usually ships in 3-6 days
Honda 94101-06800
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)
$0.99
$
In Stock, Qty 20+
Honda 94201-16120
PIN, COTTER (1.6X12)
$1.49
$
In Stock, only 4 left!
