H4514 H HSA/A (MZAS) - Honda Lawn Tractor, Made in Japan (SN: MZAS-1000001 - MZAS-1999999) CONTROL (H4514H) (TO 1253085) Parts Diagram

Lawn Tractor, Made in Japan

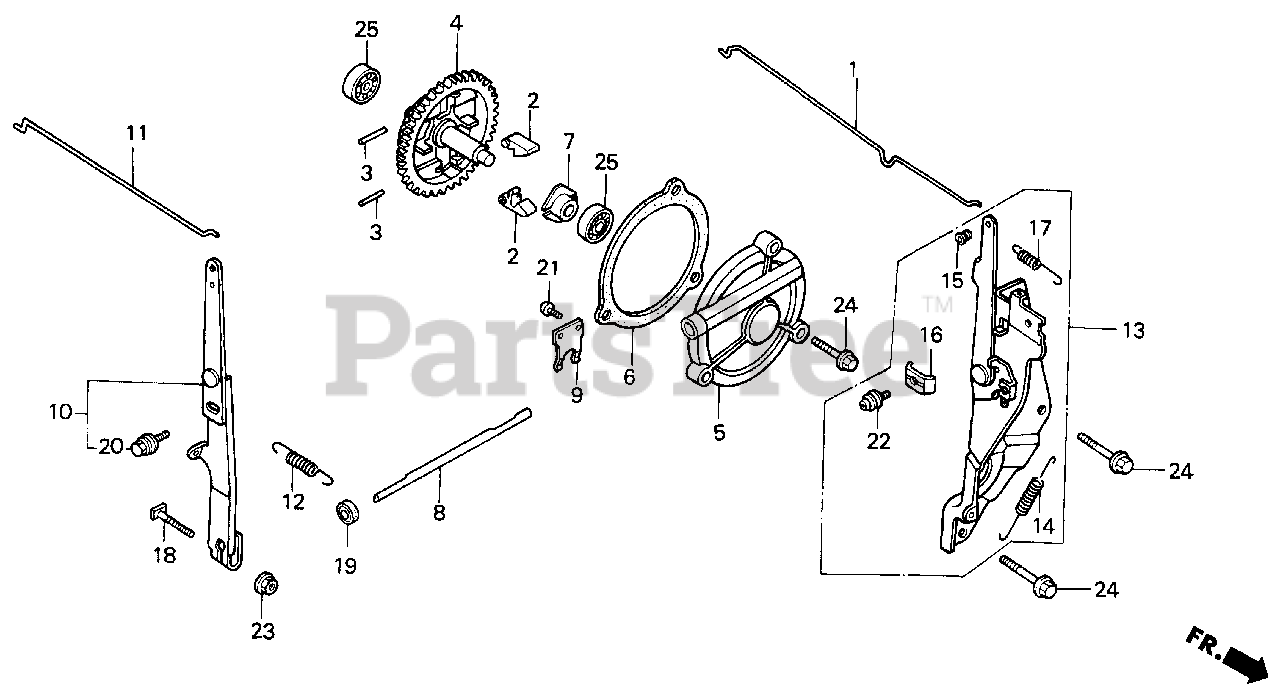

CONTROL (H4514H) (TO 1253085) Parts Diagram

  • Title

1

Honda 16264-ZA0-700

ROD, CHOKE

Note: Use up to Engine SN 1253085.

$

$

Not available

2

Honda 16511-ZA0-701

WEIGHT, GOVERNOR

Note: Use up to Engine SN 1253085.

$9.49

$

Usually ships in 3-6 days

0

3

Honda 16513-ZA0-700

PIN, GOVERNOR WEIGHT

Note: Use up to Engine SN 1253085.

$1.99

$

Usually ships in 3-6 days

0

4

Honda 16520-ZA0-700

SHAFT, GOVERNOR

Note: Use up to Engine SN 1253085.

$86.99

$

Usually ships in 3-6 days

0

5

Honda 16525-ZA0-700

COVER, GOVERNOR

Note: Use up to Engine SN 1253085.

$49.99

$

Usually ships in 3-6 days

0

6

Honda 16528-ZA0-800

GASKET, GOVERNOR COVER

Note: Use up to Engine SN 1253085.

$6.49

$

In Stock, only 1 left!

0

7

Honda 16531-ZA0-701

SLIDER, GOVERNOR

Note: Use up to Engine SN 1253085.

$35.99

$

Usually ships in 3-6 days

0

8

Honda 16541-ZA0-700

SHAFT, GOVERNOR ARM

Note: Use up to Engine SN 1253085.

$22.99

$

Usually ships in 3-6 days

0

9

Honda 16542-ZA0-700

FORK, GOVERNOR

Note: Use up to Engine SN 1253085.

$9.99

$

Usually ships in 3-6 days

0

10

Honda 16551-ZA0-L00

ARM, GOVERNOR

Note: Use up to Engine SN 1253085.

$30.99

$

Usually ships in 3-6 days

0

11

Honda 16555-889-010

ROD, GOVERNOR

Note: Use up to Engine SN 1253085.

$4.99

$

Usually ships in 3-6 days

0

12

Honda 16561-ZA0-L00

SPRING, GOVERNOR

Note: Use up to Engine SN 1253085.

$5.99

$

Usually ships in 3-6 days

0

13

Honda 16570-ZA0-700

SEE PART DETAILS - SUP; CONTROL

Note: Use up to Engine SN 1253085.

$

$

Currently unavailable

13

Honda 16570-ZA0-702

SEE PART DETAILS - PRI; CONTROL

Note: Use up to Engine SN 1253085.

$84.99

$

Usually ships in 3-6 days

0

14

Honda 16575-ZA0-700

SPRING, CONTROL LEVER RETURN

Note: Use up to Engine SN 1253085.

$4.49

$

Usually ships in 3-6 days

0

15

Honda 16576-ZA0-700

COLLAR, LEVER

Note: Use up to Engine SN 1253085.

$5.99

$

Usually ships in 3-6 days

0

16

Honda 16576-891-000

HOLDER, CABLE

Note: Use up to Engine SN 1253085.

$4.99

$

Usually ships in 3-6 days

0

17

Honda 16592-883-310

SPRING, CABLE RETURN

Note: Use up to Engine SN 1253085.

$3.49

$

In Stock, only 2 left!

0

18

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM

Note: Use up to Engine SN 1253085.

$2.99

$

Usually ships in 3-6 days

0

19

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

Note: Use up to Engine SN 1253085.

$5.49

$

In Stock, Qty 11

0

19

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

Note: Use up to Engine SN 1253085.

$5.49

$

In Stock, Qty 11

0

20

Honda 93403-06012-00

BOLT-WASHER (6X12)

Note: Use up to Engine SN 1253085.

$2.49

$

Usually ships in 3-6 days

0

21

Honda 93500-03008-0H

SCREW, PAN (3X8)

Note: Use up to Engine SN 1253085.

$0.99

$

In Stock, Qty 8

0

22

Honda 93893-05020-00

SCREW-WASHER (5X20)

Note: Use up to Engine SN 1253085.

$1.99

$

Usually ships in 3-6 days

0

23

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use up to Engine SN 1253085.

$0.99

$

In Stock, Qty 20+

0

24

Honda 95700-06025-08

BOLT, FLANGE (6X25)

Note: Use up to Engine SN 1253085.

$2.49

$

Usually ships in 3-6 days

0

24

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

Note: Use up to Engine SN 1253085.

$2.49

$

Usually ships in 3-6 days

0

25

Honda 96100-60000-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6000)

Note: Use up to Engine SN 1253085.

$11.99

$

Usually ships in 3-6 days

0
