H4013 SAN/E (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-4100001 - MZAR-4199999) WIRE HARNESS (H4013) Parts Diagram

Lawn Tractor, Made in Japan

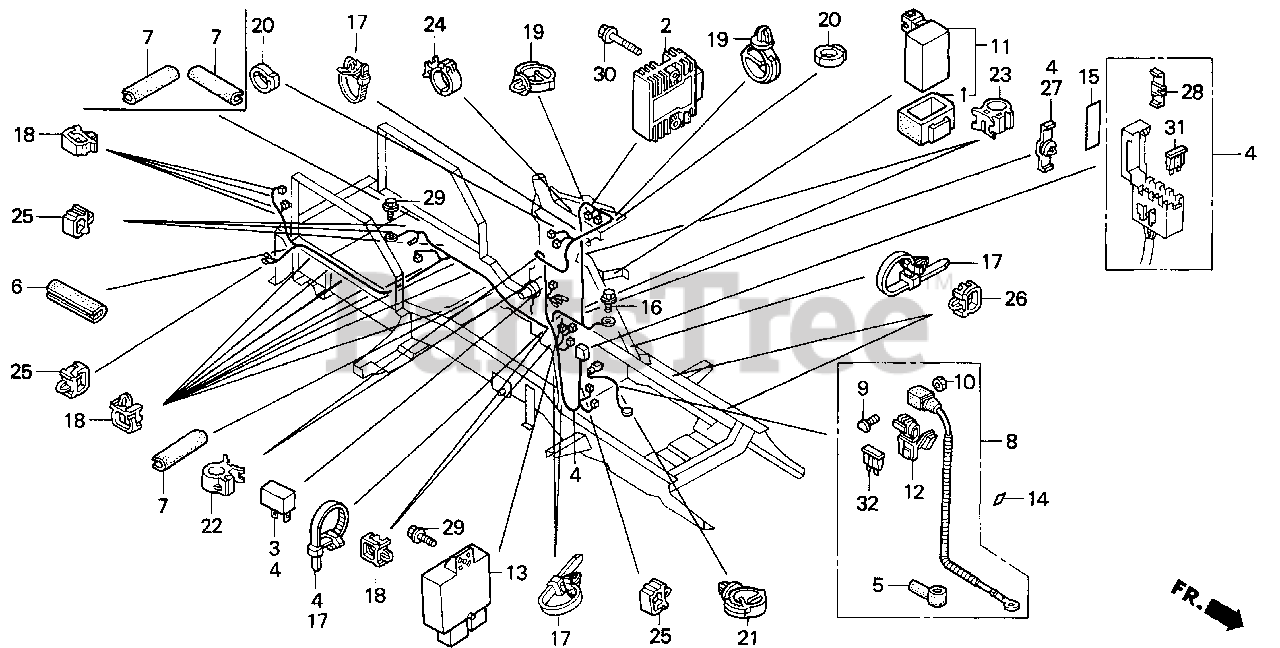

WIRE HARNESS (H4013) Parts Diagram

  • Title
2

Honda 31750-758-003

SEE PART DETAILS - SUP; RECTIFIER ASSY., REGULATOR (10A)

$

$

Not available

4

Honda 32100-758-702

WIRE HARNESS ASSY., MAIN

$336.99

$

Usually ships in 3-6 days

0

5

Honda 32136-758-700

COVER, TERMINAL

$

$

Not available

6

Honda 32142-758-000

PROTECTOR, HARNESS

$

$

Not available

7

Honda 32142-758-700

PROTECTOR, HARNESS

$4.49

$

Usually ships in 3-6 days

0

8

Honda 32410-758-701

CABLE ASSY., STARTER

$

$

Currently unavailable

9

Honda 32601-SA5-003

SEE PART DETAILS - SUP; BOLT, BATTERY TERMINAL (SUMITOMO)

$12.99

$

Usually ships in 3-6 days

0

9

Honda 32601-SK7-900

SEE PART DETAILS - PRI; BOLT, BATTERY TERMINAL

$12.99

$

Usually ships in 3-6 days

0

10

Honda 32602-SA5-003

NUT, BATTERY TERMINAL (SUMITOMO)

$7.99

$

Usually ships in 3-6 days

0

10

Honda 32602-SK7-900

NUT, BATTERY TERMINAL

$7.49

$

Usually ships in 3-6 days

0

13

Honda 38450-758-702

RELAY ASSY., COMBINATION

$

$

Not available

16

Honda 90149-SE0-003

BOLT, GROUND (6X16) (SN)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90649-SC2-003

BAND, WIRE HARNESS (WHITE)

$9.49

$

Usually ships in 3-6 days

0

18

Honda 90650-SB6-003

CLIP, HARNESS (15MM) (BLUE)

$5.99

$

Usually ships in 3-6 days

0

19

Honda 90681-763-A01

CLIP, WIRE HARNESS

$11.99

$

In Stock, only 1 left!

0

20

Honda 90683-KJ2-003

CLIP, WIRE HARNESS

$5.49

$

Usually ships in 3-6 days

0

21

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

23

Honda 90690-GHB-651

CLIP, CABLE (15MM)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90690-GHB-661

CLIP, CABLE (20MM)

$2.99

$

In Stock, only 1 left!

0

25

Honda 91504-750-003

CLIP, WIRE HARNESS

$4.49

$

Usually ships in 3-6 days

0

26

Honda 91505-ZA0-601

CLIP, HARNESS (7MM)

$5.49

$

Usually ships in 3-6 days

0

27

Honda 91507-693-003

CLIP, WIRE HARNESS (BLACK)(HARNESS TAPING)

$10.99

$

Usually ships in 3-6 days

0

28

Honda 91553-SF4-003

CLIP, WIRE HARNESS (BLACK)

$7.49

$

Usually ships in 3-6 days

0

29

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

30

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$0.99

$

Usually ships in 3-6 days

0

31

Honda 98200-30500

FUSE, BLADE (5A)

$1.99

$

In Stock, Qty 5

0

32

Honda 98200-32000

FUSE, BLADE (20A)

$1.99

$

Usually ships in 3-6 days

0
