H4013 SAN/E (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-4100001 - MZAR-4199999) P.T.O. CLUTCH (H4013) Parts Diagram

Lawn Tractor, Made in Japan

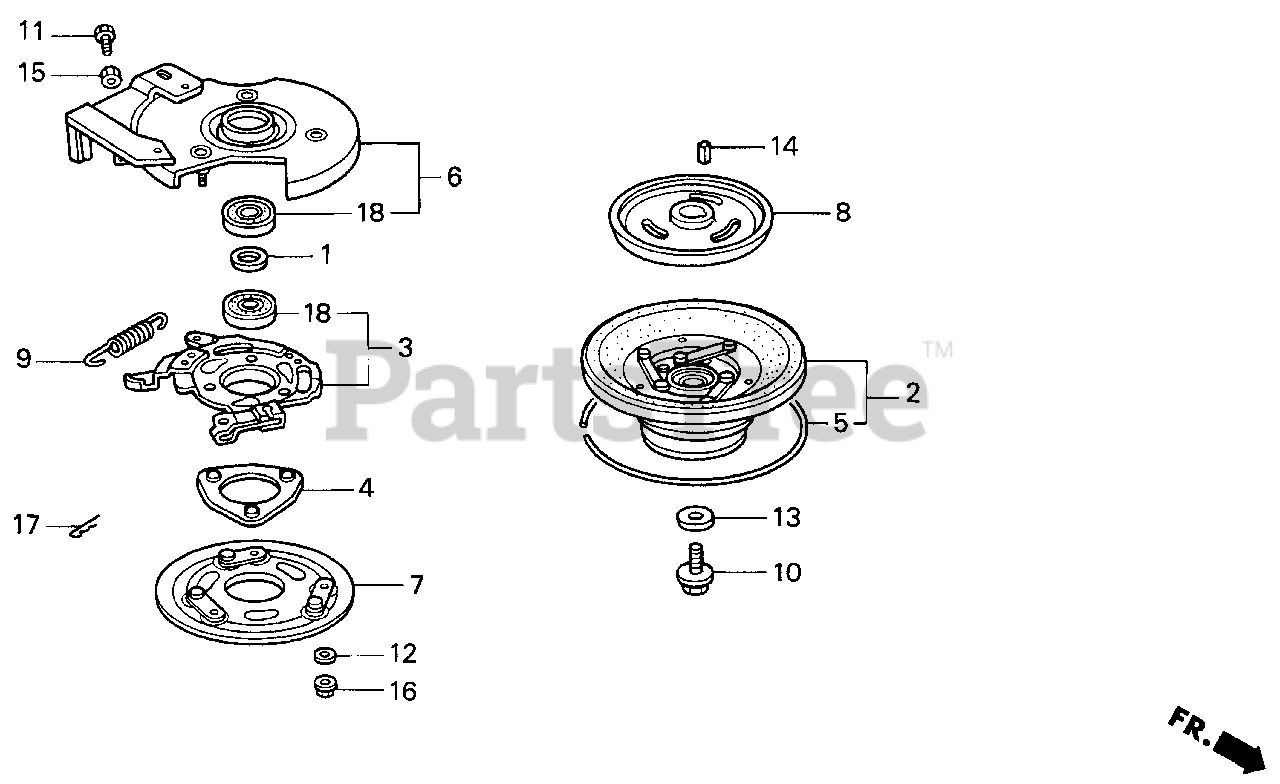

P.T.O. CLUTCH (H4013) Parts Diagram

  • Title

1

Honda 23443-ML4-610

WASHER, THRUST (25MM)

$

$

Not available

2

Honda 75106-758-701

PULLEY ASSY., DRIVE

$

$

Currently unavailable

3

Honda 75110-758-701

PLATE, BALL CONTROL

$

$

Not available

4

Honda 75115-758-003

RETAINER, BALL

$27.99

$

Usually ships in 3-6 days

0

5

Honda 75119-758-000

RING, P.T.O. CLUTCH

$

$

Not available

6

Honda 75125-758-701

PLATE, BASE

$

$

Not available

7

Honda 75130-758-003

PLATE, BRAKE

$

$

Not available

8

Honda 75141-758-003

PLATE, DRIVE

$138.99

$

Usually ships in 3-6 days

0

9

Honda 75182-758-701

SPRING, RETURN

$

$

Not available

10

Honda 90101-758-000

BOLT, SPECIAL (8X30)

$

$

Not available

11

Honda 90103-732-000

BOLT, ADJUSTING

$4.99

$

In Stock, only 1 left!

0

12

Honda 90505-758-000

WASHER (6X17X1.6)

$

$

Not available

13

Honda 90501-758-000

WASHER, STEERING GEAR

$3.99

$

In Stock, only 2 left!

0

14

Honda 90743-VB2-000

KEY (7X7X18)

$

$

Not available

15

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

16

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

17

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 14

0

18

Honda 96150-60050-10

BEARING, RADIAL BALL (6005UU)

$25.99

$

Usually ships in 3-6 days

0
