H4013 SAN/D (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-4000001 - MZAR-4099999) SEAT Parts Diagram

Lawn Tractor, Made in Japan

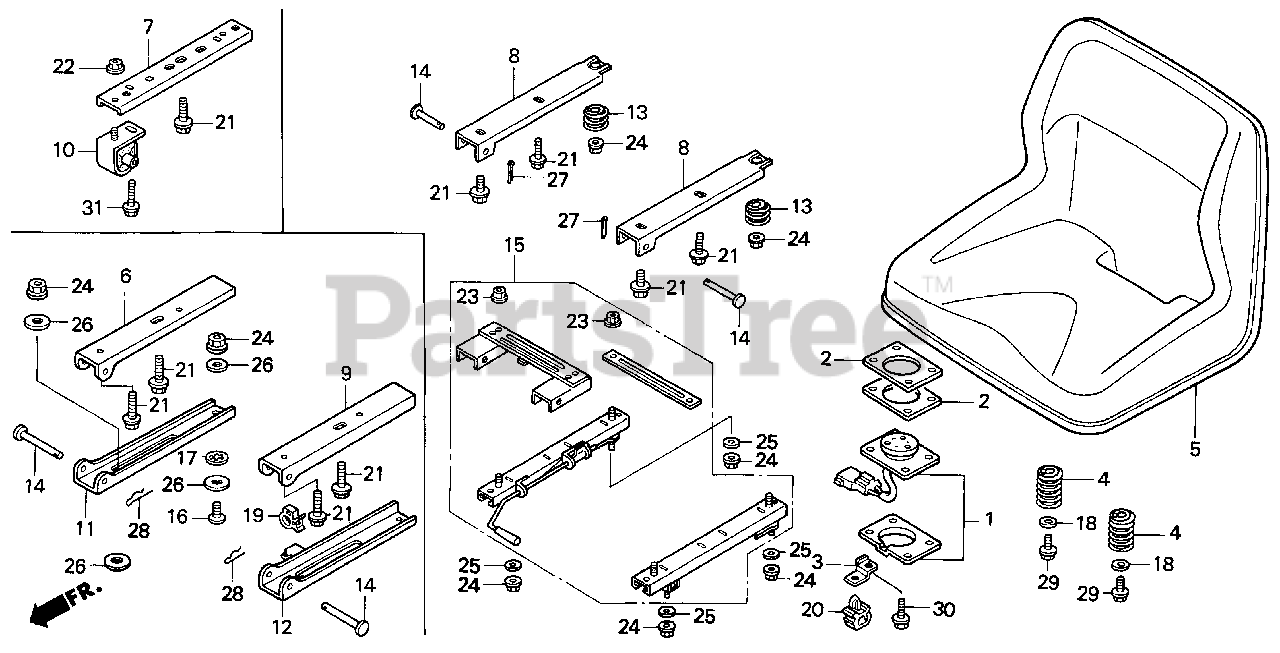

SEAT Parts Diagram

  • Title

1

Honda 35800-758-003

SWITCH ASSY., SEAT

$

$

Not available

2

Honda 35803-758-000

SPACER, SEAT SWITCH

$

$

Not available

3

Honda 35806-758-000

BASE, CLIP

$6.49

$

Usually ships in 3-6 days

0

4

Honda 77228-750-003

SPRING, SEAT

$15.99

$

Usually ships in 3-6 days

0

5

Honda 81100-758-000

SEAT ASSY.

$270.99

$

Usually ships in 3-6 days

0

6

Honda 81108-758-000

HINGE, R. SEAT (UPPER)

$82.99

$

Usually ships in 3-6 days

0

9

Honda 81109-758-010

HINGE, L. SEAT (UPPER)

$82.99

$

Usually ships in 3-6 days

0

11

Honda 81118-758-000

HINGE, R. SEAT (LOWER)

$82.99

$

Usually ships in 3-6 days

0

12

Honda 81119-758-010

HINGE, L. SEAT (LOWER)

$82.99

$

Usually ships in 3-6 days

0

14

Honda 81138-758-000

PIN, SEAT HINGE (8X57)

$

$

Not available

16

Honda 90101-750-920

BOLT, SPECIAL (8X20)

$3.49

$

In Stock, only 1 left!

0

17

Honda 90451-758-000

WASHER, THRUST

$4.49

$

In Stock, only 1 left!

0

18

Honda 90505-HA0-000

WASHER (6X20)

$

$

Not available

19

Honda 90690-GHB-641

CLIP, CABLE (10MM)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 91505-ZA0-601

CLIP, HARNESS (7MM)

$5.49

$

Usually ships in 3-6 days

0

21

Honda 93404-08016-07

BOLT-WASHER (8X16)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

26

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

28

Honda 94251-08400

PIN, LOCK (8MM)

$

$

Not available

29

Honda 95701-06018-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)

$2.49

$

Usually ships in 3-6 days

0
