H4013 SAN/C (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-3000001 - MZAR-3999999) REAR FENDER Parts Diagram

Lawn Tractor, Made in Japan

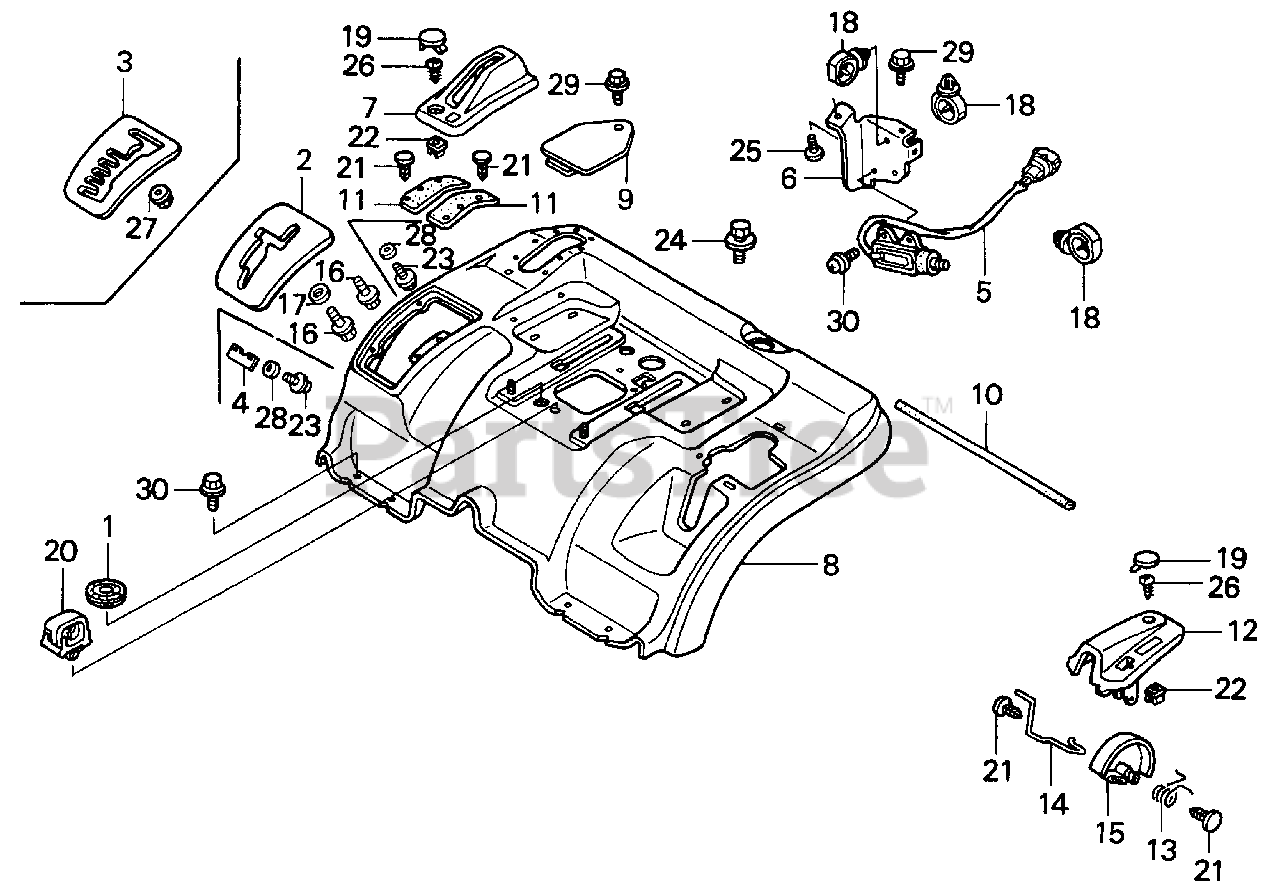

REAR FENDER Parts Diagram

  • Title

1

Honda 19905-750-000

GROMMET, WIRE

$5.99

$

Usually ships in 3-6 days

0

3

Honda 24139-758-701ZA

GUIDE, CHANGE LEVER *R165* (JOLLY RED)

$

$

Not available

7

Honda 47125-758-000ZA

PROTECTOR, PARKING BRAKE LEVER *NH247* (ASSEMBLY GRAY)

$33.99

$

Usually ships in 3-6 days

0

8

Honda 63402-758-010ZA

FENDER, RR. *R165* (JOLLY RED)
(Superseded to 63402-758-010ZB)

$

$

Not available

10

Honda 63414-758-000

TRIM, RR. FENDER

$26.99

$

Usually ships in 3-6 days

0

12

Honda 66153-758-000ZA

PROTECTOR, HEIGHT ADJUSTING LEVER *NH247* (ASSEMBLY GRAY)

$

$

Not available

13

Honda 76347-758-000

SPRING, INDICATOR

$4.49

$

Usually ships in 3-6 days

0

14

Honda 76424-758-000

ROD, INDICATOR

$

$

Not available

15

Honda 76429-758-000

INDICATOR, HEIGHT

$16.99

$

Usually ships in 3-6 days

0

19

Honda 90693-693-000YT

SEE PART DETAILS - PRI; CAP, LINING *NH120L* (STAR BLACK)

$

$

Not available

19

Honda 90693-693-000ZE

SEE PART DETAILS - SUP; CAP, LINING *NH1L* (BLACK)

$

$

Currently unavailable

20

Honda 91505-ZA0-601

CLIP, HARNESS (7MM)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 91544-SD4-003

CLIP, COVER (5MM)

$6.99

$

Usually ships in 3-6 days

0

22

Honda 91604-SE0-003

GROMMET, SCREW (5MM)

$

$

Not available

24

Honda 93404-08016-07

BOLT-WASHER (8X16)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 93903-25220

SCREW, TAPPING (5X12)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

30

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
