H4013 SAN/C (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-3000001 - MZAR-3999999) CHANGE SHAFT (H4013) Parts Diagram

Lawn Tractor, Made in Japan

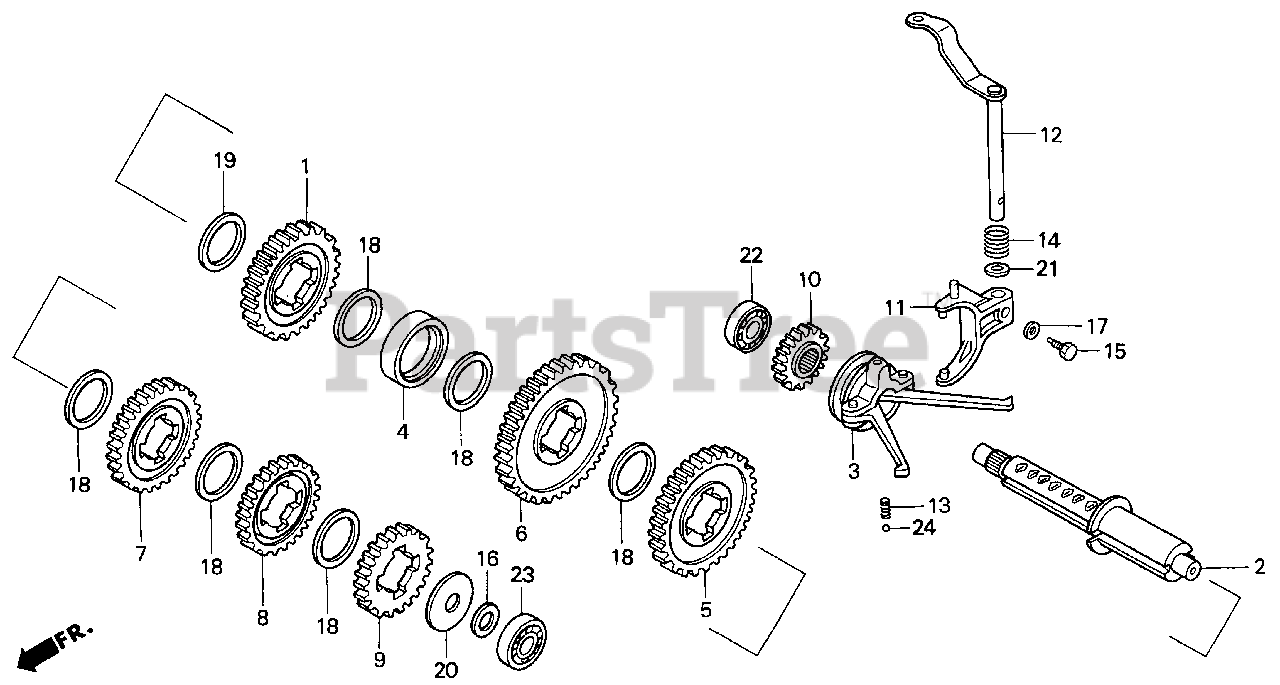

CHANGE SHAFT (H4013) Parts Diagram

  • Title
1

Honda 23128-758-000

SPROCKET, REVERSE (41T)

$

$

Not available

2

Honda 23213-758-000

SHAFT, CHANGE

$

$

Not available

3

Honda 23215-758-000

HOLDER, KEY

$

$

Not available

4

Honda 23501-751-000

POSITIONER, NEUTRAL

$

$

Not available

5

Honda 23511-751-630

GEAR, CHANGE LOW (50T)

$

$

Not available

6

Honda 23511-758-000

GEAR, CHANGE LOW (59T)

$

$

Not available

7

Honda 23521-751-000

GEAR, CHANGE SECOND (43T)

$

$

Not available

8

Honda 23541-758-000

GEAR, CHANGE FOURTH (39T)

$

$

Not available

9

Honda 23551-758-000

GEAR, CHANGE FIFTH (36T)

$

$

Not available

10

Honda 23611-758-010

GEAR, COUNTERSHAFT DRIVE (20T)

$

$

Not available

11

Honda 24115-758-000

FORK, SHIFT

$

$

Not available

12

Honda 24130-758-000

SHAFT, SHIFT

$

$

Not available

13

Honda 24451-758-000

SPRING, BALL SET

$

$

Not available

14

Honda 24452-758-700

SPRING, SHIFT SHAFT

$

$

Not available

15

Honda 90029-611-010

SEE PART DETAILS - PRI; BOLT, SPECIAL (8X24)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 90412-187-000

WASHER, THRUST (15MM)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90412-679-000

WASHER, CONICAL SPRING (8MM)

$6.99

$

Usually ships in 3-6 days

0

18

Honda 90505-751-000

WASHER, DISTANCE (2MM)

$14.99

$

Usually ships in 3-6 days

0

19

Honda 90506-751-000

WASHER, DISTANCE (1MM)

$

$

Not available

20

Honda 90508-751-000

WASHER, CHANGE THRUST

$

$

Not available

21

Honda 90509-169-000

WASHER (14MM)

$

$

Not available

22

Honda 91009-KJ1-003

BEARING, RADIAL BALL (6202)

$20.99

$

Usually ships in 3-6 days

0

23

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$12.99

$

Usually ships in 3-6 days

0

24

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0
