H4013 SAN/B (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-2000001 - MZAR-2999999) HOOD Parts Diagram

Lawn Tractor, Made in Japan

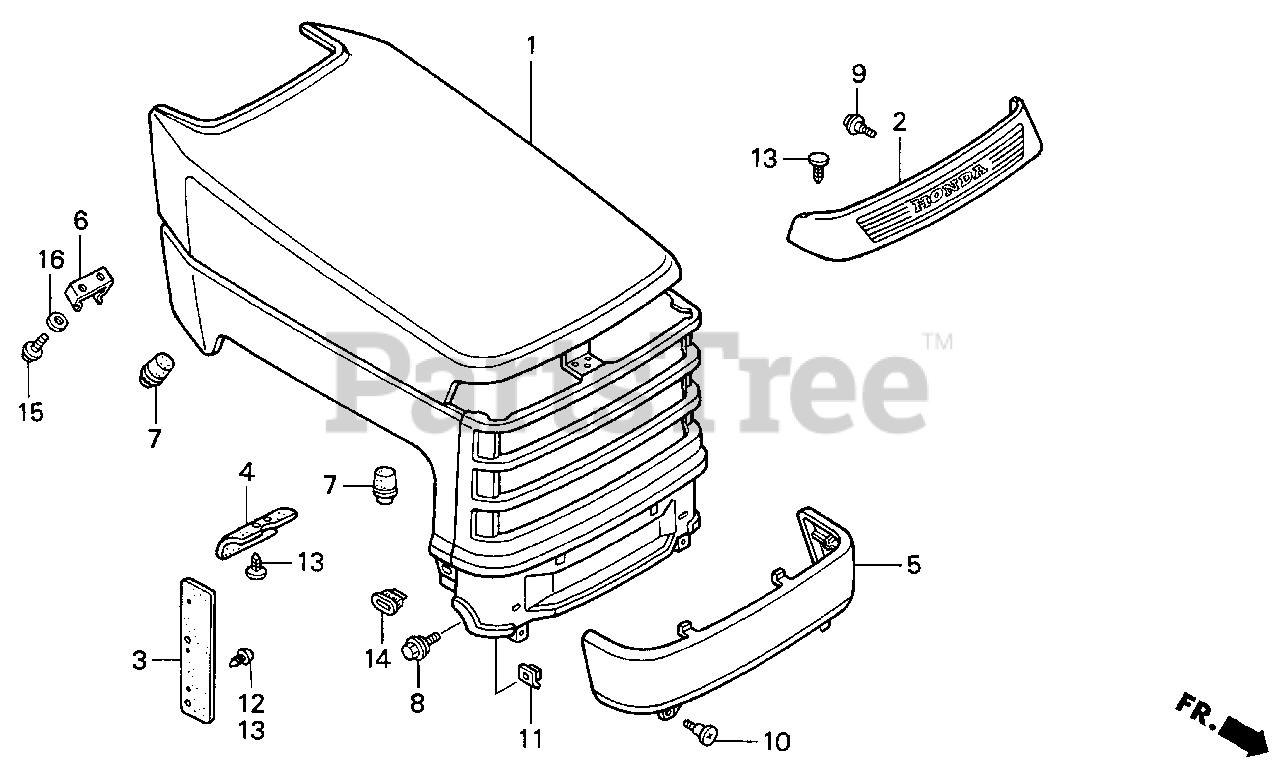

HOOD Parts Diagram

  • Title

1

Honda 60110-758-020ZB

HOOD *R165* (JOLLY RED)

$

$

Not available

2

Honda 60121-758-700ZA

GARNISH, FR. *NH247* (ASSEMBLY GRAY)

$

$

Not available

5

Honda 71100-758-000ZA

SEE PART DETAILS - SUP; BUMPER *R165* (JOLLY RED)

$

$

Currently unavailable

6

Honda 73451-758-000

STRIKER, HOOD

$18.99

$

Usually ships in 3-6 days

0

7

Honda 85268-SA5-003

STOPPER, TAILGATE (BLACK)

$9.99

$

Usually ships in 3-6 days

0

8

Honda 90107-758-000

BOLT, HINGE (8MM)

$

$

Not available

9

Honda 90119-197-890

SCREW, FR. VISOR

$4.49

$

Usually ships in 3-6 days

0

10

Honda 90123-750-000

SCREW, METER VISOR SETTING

$4.99

$

In Stock, Qty 6

0

11

Honda 90506-758-000

WASHER, SETTING

$

$

Not available

13

Honda 91544-SD4-003

CLIP, COVER (5MM)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 91641-SH3-013

GROMMET ASSY., GARNISH

$2.49

$

Usually ships in 3-6 days

0

15

Honda 93403-06012-08

BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
