H4013 SAN/B (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-2000001 - MZAR-2999999) DRIVE PULLEY (H4013) Parts Diagram

Lawn Tractor, Made in Japan

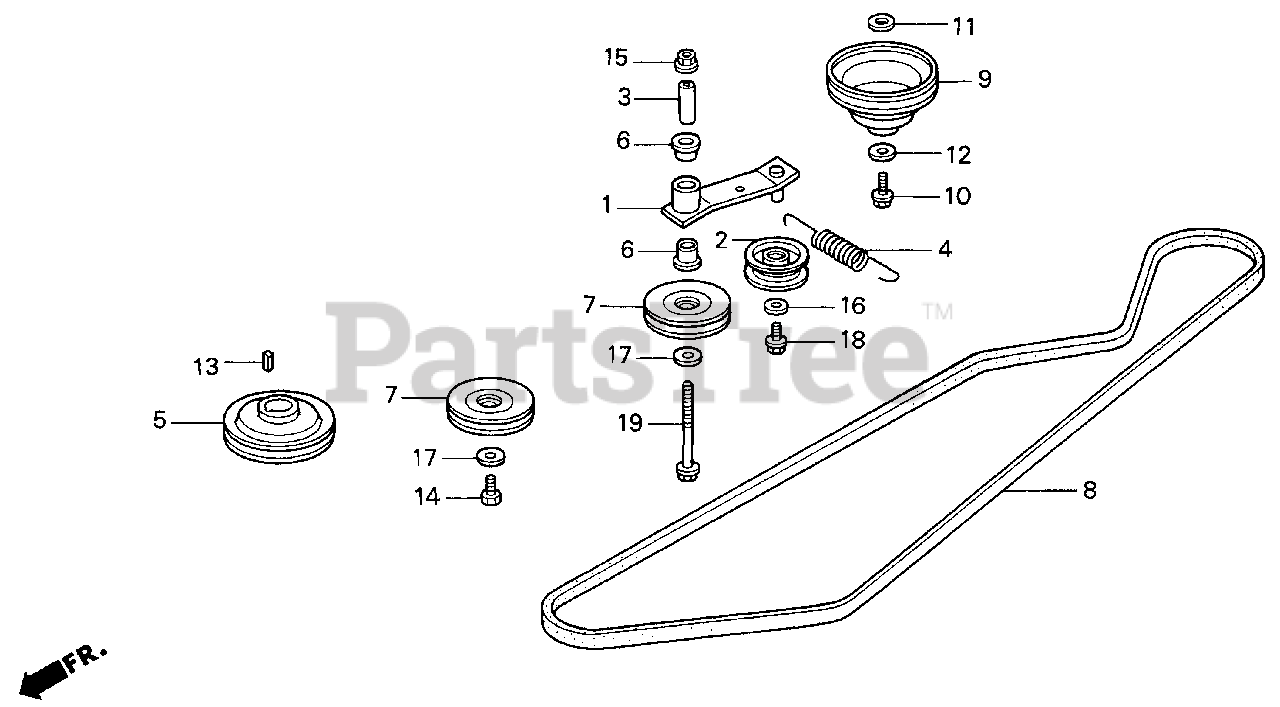

DRIVE PULLEY (H4013) Parts Diagram

  • Title

1

Honda 22520-758-700

ARM, TENSIONER

$54.99

$

Usually ships in 3-6 days

0

2

Honda 22521-751-000

ROLLER, TENSIONER

$40.99

$

Usually ships in 3-6 days

0

3

Honda 22526-758-700

COLLAR, TENSIONER ARM

$10.99

$

Usually ships in 3-6 days

0

4

Honda 22531-758-700

SPRING, PRIMARY BELT TENSION

$

$

Not available

5

Honda 75170-758-700

PULLEY, ENGINE (109.5MM)

$

$

Not available

6

Honda 76121-752-830

BUSH, TENSIONER ARM (15X19X14)

$

$

Not available

7

Honda 76160-758-700

PULLEY, TENSIONER (80MM)

$

$

Not available

8

Honda 76182-758-700

V-BELT (LB-86)

$

$

Not available

9

Honda 76225-758-700

PULLEY, TRANSMISSION (109.5MM) (ENGINE)

$

$

Not available

10

Honda 90012-752-000

BOLT, FLANGE (8X20)

$3.99

$

In Stock, only 4 left!

0

11

Honda 90456-155-000

WASHER (17MM)

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90471-435-770

WASHER (8MM)

$

$

Not available

13

Honda 90743-VB2-000

KEY (7X7X18)

$

$

Not available

14

Honda 92101-08016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X16)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, only 2 left!

0

16

Honda 94103-06800

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

17

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

18

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

19

Honda 95701-08100-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X100)

$3.99

$

Usually ships in 3-6 days

0
