H4013 SAN/B (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-2000001 - MZAR-2999999) CARBURETOR (H4013) Parts Diagram

Lawn Tractor, Made in Japan

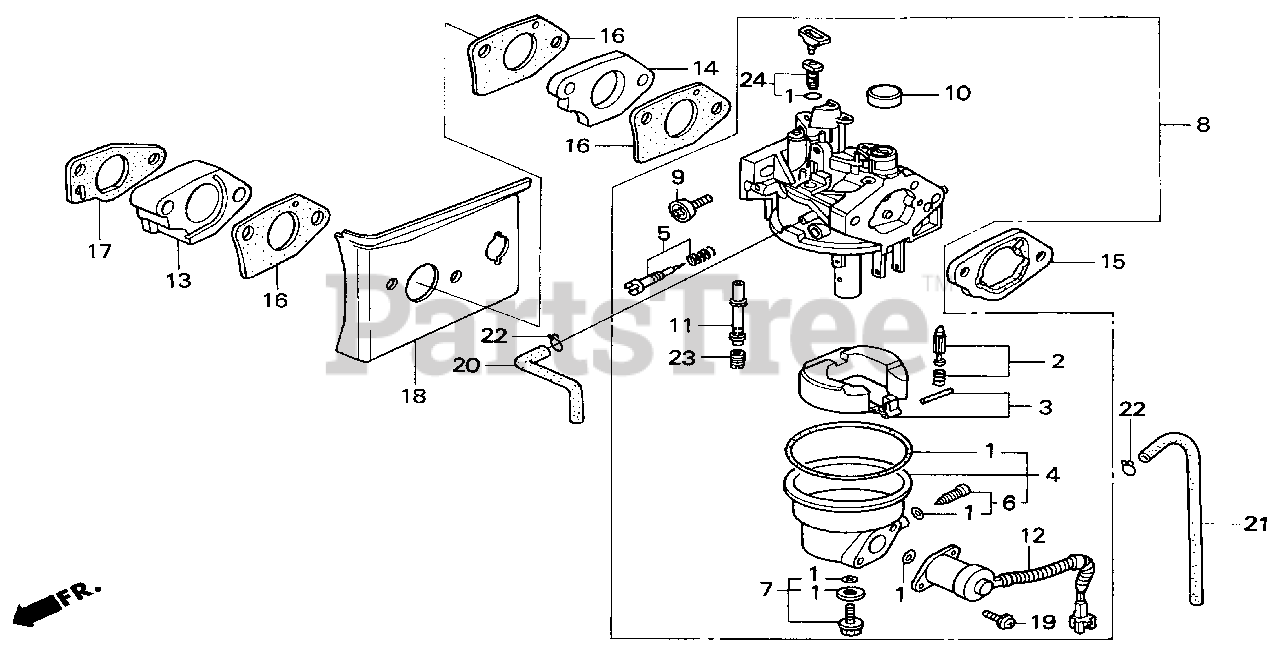

CARBURETOR (H4013) Parts Diagram

  • Title

1

Honda 16010-ZF5-L10

GASKET SET (NOT AVAILABLE)

Note: Use up to Engine SN BE32D B.

$

$

Not available

1

Honda 16010-ZF5-L11

SEE PART DETAILS - SUP; GASKET SET

Note: Use from Engine SN BE32D C.

$

$

Currently unavailable

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$45.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZA0-931

FLOAT SET

$51.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZF5-L10

CHAMBER SET, FLOAT

Note: Use up to Engine SN BE32D B.

$85.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZF5-L11

CHAMBER SET, FLOAT

Note: Use from Engine SN BE32D C.

$

$

Not available

5

Honda 16016-PP0-005

SEE PART DETAILS - SUP; SCREW SET

$

$

Not available

6

Honda 16016-ZF6-005

SCREW SET

$14.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZA0-981

SCREW SET
(Superseded to 16028-ZA0-982)

$23.99

$

In Stock, only 2 left!

0

8

Honda 16100-ZF5-L12

CARBURETOR ASSY. (BE32D C)

$

$

Currently unavailable

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

CAP, CHOKE LEVER DUST

$6.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZF6-005

NOZZLE, MAIN

$31.99

$

Usually ships in 3-6 days

0

12

Honda 16200-ZF5-L11

VALVE ASSY., SOLENOID (NOT AVAILABLE)

Note: Use up to Engine SN BE32D B.

$

$

Not available

12

Honda 16200-ZF5-L12

VALVE ASSY., SOLENOID

Note: Use from Engine SN BE32D C.

$

$

Not available

13

Honda 16211-ZF5-L00

INSULATOR, CARBURETOR

$18.99

$

Usually ships in 3-6 days

0

14

Honda 16211-ZF5-L10

INSULATOR, CARBURETOR

$14.99

$

Usually ships in 3-6 days

0

15

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$11.99

$

In Stock, Qty 5

0

16

Honda 16221-ZF6-800

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 12

0

17

Honda 16223-ZE9-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 5

0

18

Honda 19651-ZF5-L00

GUIDE, AIR

$25.99

$

Usually ships in 3-6 days

0

19

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, Qty 5

0

20

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X100)

$54.99

$

In Stock, only 1 left!

0

21

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X250)

$54.99

$

In Stock, only 1 left!

0

22

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

23

Honda 99101-ZF5-0900

SEE PART DETAILS - SUP; JET, MAIN (#90)
(Superseded to 99101-ZH8-0900)

$8.49

$

In Stock, only 2 left!

0

23

Honda 99101-ZF5-0920

JET, MAIN (#92)

$11.99

$

Usually ships in 3-6 days

0

23

Honda 99101-ZF5-0950

JET, MAIN (#95)

$11.99

$

In Stock, only 2 left!

0

24

Honda 99204-ZA0-0400

JET SET, PILOT (#40)

$24.99

$

Usually ships in 3-6 days

0
