H4013 SAN/B (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-2000001 - MZAR-2999999) BRAKE PEDAL (H4013) Parts Diagram

Lawn Tractor, Made in Japan

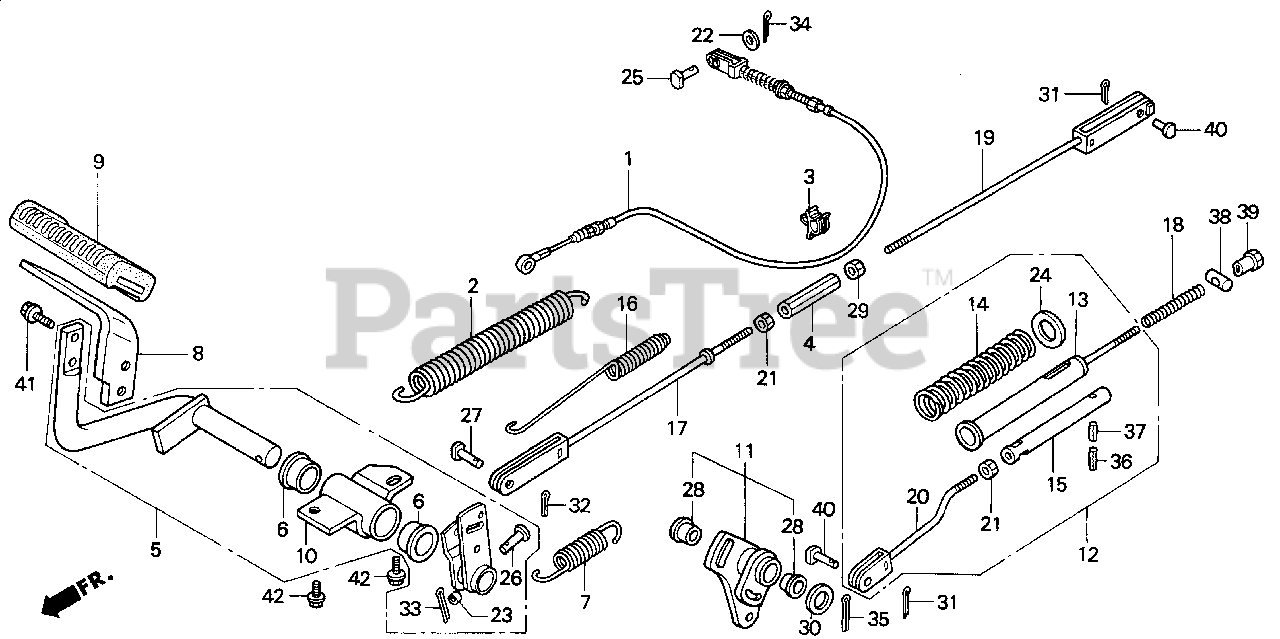

BRAKE PEDAL (H4013) Parts Diagram

  • Title

1

Honda 24140-758-702

CABLE, CLUTCH

$

$

Not available

2

Honda 24147-758-700

SPRING, CLUTCH

$

$

Not available

3

Honda 32171-GJ1-003

CLIP, WIRE HARNESS

$5.49

$

Usually ships in 3-6 days

0

4

Honda 43453-758-000

JOINT (6MM)

$

$

Not available

5

Honda 46501-758-700

ARM ASSY., BRAKE PEDAL

$

$

Not available

6

Honda 46504-758-000

BUSH, BRAKE PEDAL

$

$

Not available

7

Honda 46514-758-000

SPRING, BRAKE PEDAL

$

$

Not available

8

Honda 46515-758-000

BRACKET, BRAKE PEDAL

$42.99

$

Usually ships in 3-6 days

0

9

Honda 46545-758-000

RUBBER, BRAKE PEDAL

$21.99

$

Usually ships in 3-6 days

0

10

Honda 46592-758-010

PIVOT, BRAKE PEDAL

$34.99

$

Usually ships in 3-6 days

0

11

Honda 47205-758-700

ARM ASSY., BRAKE ROD

$

$

Not available

12

Honda 47240-758-701

PIPE ASSY., FOOT BRAKE

$

$

Not available

13

Honda 47241-758-701

PIPE, FOOT BRAKE SPRING SETTING

$

$

Not available

14

Honda 47251-758-701

SPRING, FOOT BRAKE LOAD SETTING

$

$

Not available

15

Honda 47253-750-000

SHAFT, SPRING SET

$26.99

$

Usually ships in 3-6 days

0

16

Honda 47255-758-700

SPRING, BRAKE DAMPER

$

$

Not available

17

Honda 47261-758-701

ROD A, RR. BRAKE

$13.99

$

Usually ships in 3-6 days

0

18

Honda 47262-750-000

SPRING A, BRAKE ROD

$2.99

$

Usually ships in 3-6 days

0

19

Honda 47265-758-701

ROD B, RR. BRAKE

$

$

Not available

20

Honda 47266-758-701

ROD, RR. BRAKE (C)

$

$

Not available

21

Honda 90201-700-000

NUT, GOVERNOR ARM FIXING

$0.99

$

Usually ships in 3-6 days

0

22

Honda 90451-KAF-000

WASHER (8MM)

$

$

Not available

23

Honda 90503-758-000

COLLAR (10X5)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90526-751-700

WASHER, BRAKE SPRING SETTING

$7.99

$

Usually ships in 3-6 days

0

25

Honda 90702-759-000

PIN (8X17.5)

$5.99

$

Usually ships in 3-6 days

0

26

Honda 90756-752-010

PIN, BRAKE SHAFT

$5.99

$

Usually ships in 3-6 days

0

27

Honda 90771-750-A00

PIN (5.3X17)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 91556-758-000

BUSH (16X18X15)

$

$

Not available

29

Honda 94001-06080-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 6

0

30

Honda 94102-16800

WASHER, PLAIN (16MM)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, only 4 left!

0

32

Honda 94201-20120

PIN, COTTER (2.0X12)

$1.49

$

In Stock, Qty 7

0

33

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

34

Honda 94201-20220

PIN, COTTER (2.0X22)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 94201-20350

PIN, COTTER (2.0X35)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

36

Honda 94305-30282

PIN, SPRING (3X28)

$1.99

$

Usually ships in 3-6 days

0

37

Honda 94305-50282

PIN, SPRING (5X28)

$2.49

$

Usually ships in 3-6 days

0

38

Honda 95015-31001

JOINT A, BRAKE ARM

$2.49

$

Usually ships in 3-6 days

0

39

Honda 95015-41000

NUT A, BRAKE ROD ADJUSTING

$1.99

$

Usually ships in 3-6 days

0

40

Honda 95015-52000

PIN B, BRAKE ROD JOINT

$2.99

$

Usually ships in 3-6 days

0

41

Honda 95701-08018-07

SEE PART DETAILS - SUP; BOLT, FLANGE (8X18)

$1.49

$

Usually ships in 3-6 days

0

42

Honda 95701-10018-08

BOLT, FLANGE (10X18)

$2.99

$

Usually ships in 3-6 days

0
