H4013 SA/B (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-2000001 - MZAR-2999999) MUFFLER (H4013) Parts Diagram

Lawn Tractor, Made in Japan

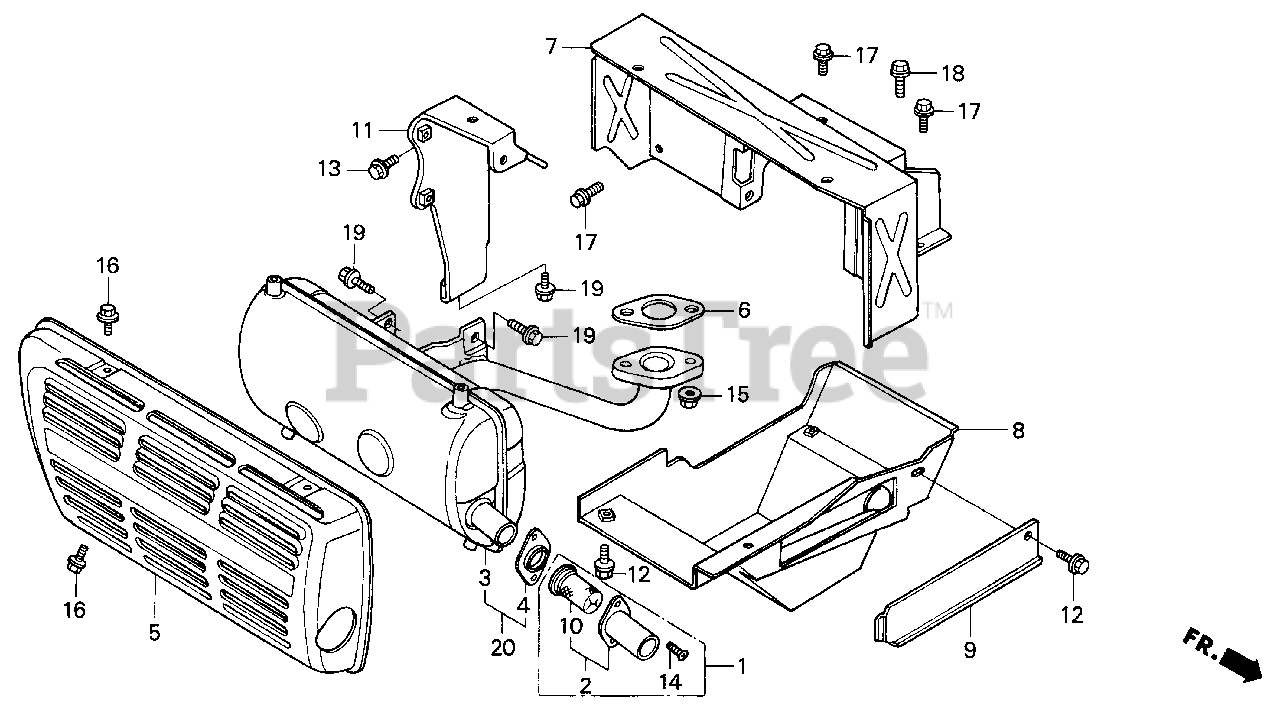

MUFFLER (H4013) Parts Diagram

  • Title

1

Honda 183A0-758-000

ARRESTER KIT

$

$

Not available

2

Honda 183A5-ZA0-630

CAP SET, ARRESTER

$

$

Not available

3

Honda 18310-758-700

MUFFLER

$

$

Not available

4

Honda 18315-ZA0-630

BASE, ARRESTER

$16.99

$

Usually ships in 3-6 days

0

5

Honda 18321-758-010

PROTECTOR, MUFFLER

$

$

Not available

6

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 20+

0

6

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER)

$4.99

$

In Stock, Qty 20+

0

7

Honda 18343-758-701

PROTECTOR, HEAT (UPPER)

$

$

Not available

8

Honda 18344-758-701

PROTECTOR, HEAT (LOWER)

$

$

Not available

9

Honda 18346-758-700

COVER, PROTECTOR (LOWER)

$

$

Not available

10

Honda 18355-890-630

ARRESTER, SPARK

$

$

Not available

11

Honda 18521-758-701

BRACKET, MUFFLER MOUNTING

$

$

Not available

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

13

Honda 90031-883-000

BOLT, FLANGE (8X16)

$5.99

$

In Stock, only 1 left!

0

14

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

15

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

16

Honda 95701-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 1 left!

0

17

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

18

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

20

Honda 18310-758-710

MUFFLER (ARRESTER)

$342.99

$

Usually ships in 3-6 days

0
