H4013 SA/A (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-1000001 - MZAR-1999999) TRANSMISSION CASE (H4013) Parts Diagram

Lawn Tractor, Made in Japan

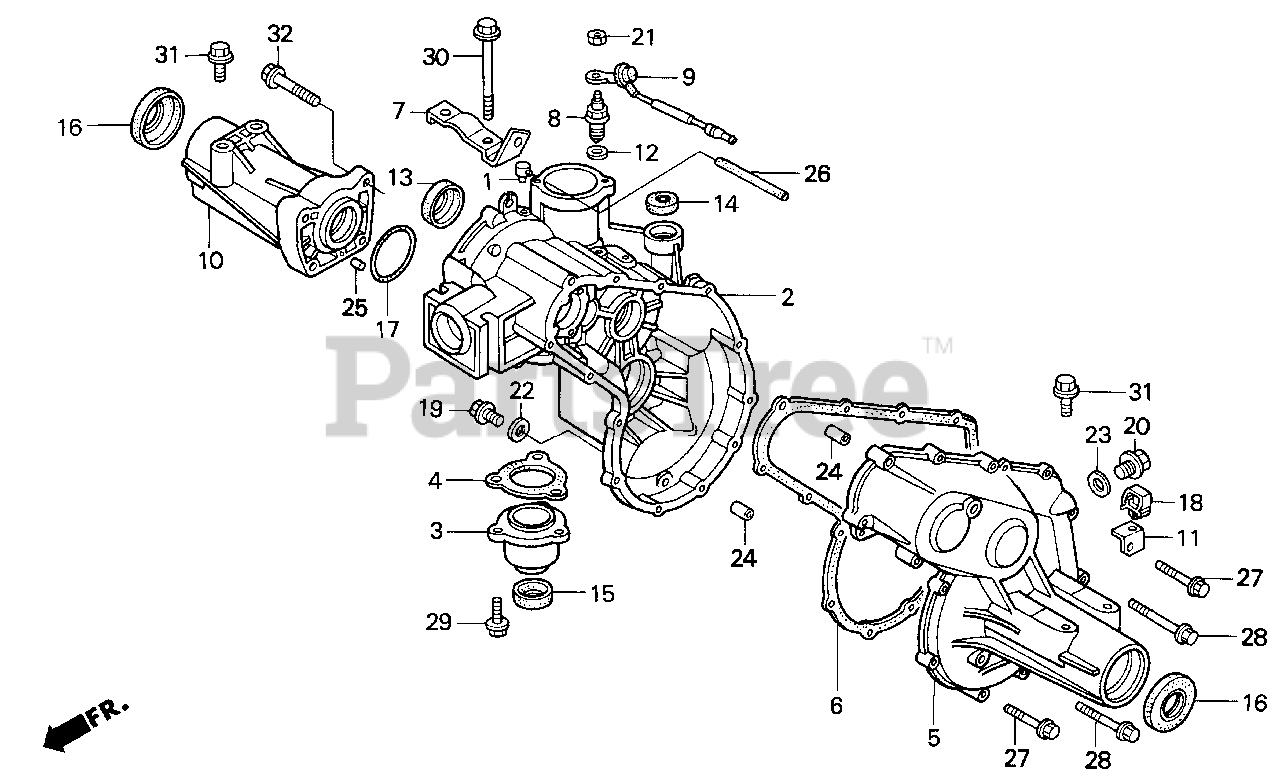

TRANSMISSION CASE (H4013) Parts Diagram

  • Title

1

Honda 11106-GM2-300

JOINT, BREATHER

$8.49

$

Usually ships in 3-6 days

0

2

Honda 211A1-758-700

CASE, R. TRANSMISSION

$

$

Not available

3

Honda 21210-751-000

HOLDER, INPUT SHAFT

$

$

Not available

4

Honda 21211-751-010

GASKET, INPUT SHAFT HOLDER

$3.99

$

In Stock, only 2 left!

0

5

Honda 21211-758-000

CASE, L. TRANSMISSION

$

$

Not available

6

Honda 21215-758-020

GASKET, TRANSMISSION CASE

$

$

Not available

7

Honda 21283-758-701

PLATE, TRANSMISSION

$

$

Not available

8

Honda 35610-763-A01

SWITCH, NEUTRAL

$

$

Not available

9

Honda 35615-763-A00

WIRE, NEUTRAL SWITCH

$12.99

$

In Stock, only 1 left!

0

10

Honda 42111-758-000

HOUSING, RR. AXLE

$165.99

$

Usually ships in 3-6 days

0

11

Honda 50135-758-010

BRACKET, SUB-HARNESS

$

$

Not available

12

Honda 90443-KR0-000

WASHER, NEUTRAL SWITCH

$1.99

$

Usually ships in 3-6 days

0

13

Honda 91201-196-003

OIL SEAL (22X32X7)

$7.99

$

Usually ships in 3-6 days

0

14

Honda 91202-444-023

SEE PART DETAILS - PRI; OIL SEAL (14X24X6) (ARAI)

$5.49

$

In Stock, only 1 left!

0

15

Honda 91203-751-003

OIL SEAL (20X38X10)

$13.99

$

In Stock, only 1 left!

0

16

Honda 91251-758-003

SEE PART DETAILS - PRI; OIL SEAL (25X52X7)

$

$

Not available

17

Honda 91302-PR0-003

O-RING (40.9X2.1) (NOK)

$

$

Not available

18

Honda 91505-ZA0-601

CLIP, HARNESS (7MM)

$4.99

$

Usually ships in 3-6 days

0

19

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

20

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

21

Honda 94001-04000-0S

NUT, HEX. (4MM)

$1.49

$

In Stock, only 1 left!

0

22

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 4 left!

0

23

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 4 left!

0

24

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 10

0

25

Honda 94303-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X260)

$31.99

$

Usually ships in 3-6 days

0

27

Honda 95701-06035-00

BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 2 left!

0

28

Honda 95701-06045-07

BOLT, FLANGE (6X45)

$2.99

$

In Stock, Qty 10

0

29

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

In Stock, Qty 5

0

30

Honda 95701-08085-08

BOLT, FLANGE (8X85)

$3.99

$

Usually ships in 3-6 days

0

31

Honda 95701-10025-08

BOLT, FLANGE (10X25)

$2.99

$

Usually ships in 3-6 days

0

32

Honda 95701-10040-08

BOLT, FLANGE (10X40)

$2.99

$

Usually ships in 3-6 days

0
