H4013 SA/A (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-1000001 - MZAR-1999999) CYLINDER (H4013) Parts Diagram

Lawn Tractor, Made in Japan

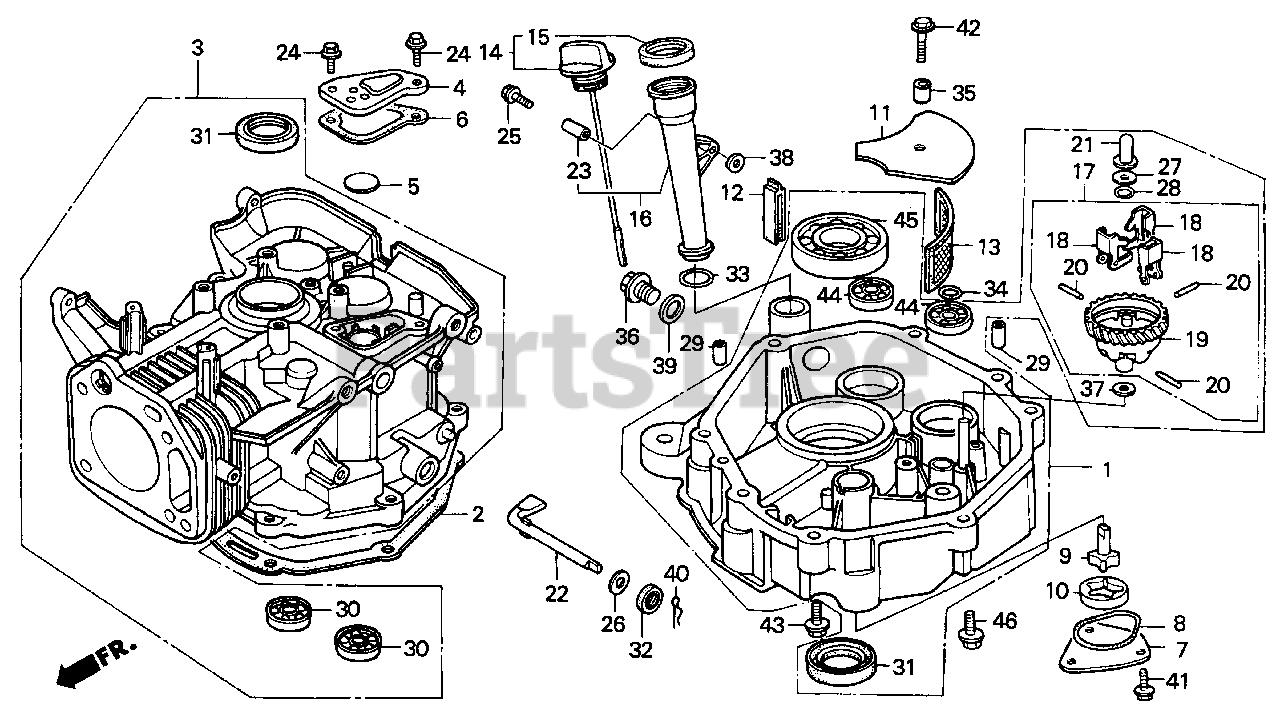

CYLINDER (H4013) Parts Diagram

  • Title

NI

Honda 06165-ZE8-000

GOVERNOR KIT

$21.99

$

Usually ships in 3-6 days

0

1

Honda 11300-ZF5-010

SEE PART DETAILS - PRI; PAN ASSY., OIL

Note: Use up to Engine SN 2025307.

$

$

Not available

1

Honda 11300-ZF5-020

PAN ASSY., OIL

Note: Use from Engine SN 2025308.

$399.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE9-306

SEE PART DETAILS - SUP; GASKET, OIL PAN
(Superseded to 11381-ZE9-801)

Note: Use up to Engine SN 2019211.

$16.99

$

In Stock, only 3 left!

0

2

Honda 11381-ZE9-800

SEE PART DETAILS - PRI; GASKET, OIL PAN
(Superseded to 11381-ZE9-801)

$16.99

$

In Stock, only 3 left!

0

2

Honda 11381-ZE9-801

SEE PART DETAILS - PRI; GASKET, OIL PAN

$16.99

$

In Stock, only 3 left!

0

3

Honda 12000-ZF5-040

SEE PART DETAILS - SUP; CYLINDER ASSY.

$

$

Currently unavailable

4

Honda 12370-ZF5-000

CAP, BREATHER CHAMBER

$8.99

$

Usually ships in 3-6 days

0

5

Honda 12372-ZE2-300

VALVE, BREATHER

$3.99

$

In Stock, Qty 5

0

6

Honda 12373-ZE8-000

GASKET, BREATHER CAP

$3.49

$

Usually ships in 3-6 days

0

7

Honda 15130-ZE8-000

COVER, OIL PUMP

$9.99

$

Usually ships in 3-6 days

0

8

Honda 15131-ZE9-003

SEE PART DETAILS - PRI; O-RING, PUMP COVER

$4.49

$

In Stock, only 3 left!

0

9

Honda 15330-ZE8-000

ROTOR (INNER)

$22.99

$

Usually ships in 3-6 days

0

10

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER)

$18.99

$

Usually ships in 3-6 days

0

11

Honda 15334-ZE8-010

PLATE, OIL FILTER

$4.49

$

Usually ships in 3-6 days

0

12

Honda 15335-ZE9-000

RUBBER, OIL RETURN

$5.99

$

Usually ships in 3-6 days

0

13

Honda 15421-ZE9-003

SCREEN, OIL FILTER

$15.99

$

In Stock, only 1 left!

0

14

Honda 15600-ZF5-000

CAP ASSY., OIL FILLER
(Superseded to 15600-Z5N-800)

$4.49

$

In Stock, only 2 left!

0

15

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

16

Honda 15630-ZE8-000

EXTENSION, OIL FILLER
(Superseded to 15630-Z5N-800)

$5.99

$

In Stock, only 1 left!

0

17

Honda 16510-ZE3-000

GOVERNOR ASSY.

Note: Use from Engine SN 2025253.

$31.99

$

Usually ships in 3-6 days

0

17

Honda 16510-ZE8-000

GOVERNOR ASSY.

Note: Use up to Engine SN 2025252.

$

$

Not available

18

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

19

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

Note: Use from Engine SN 2025253.

$18.99

$

Usually ships in 3-6 days

0

19

Honda 16512-ZE8-000

HOLDER, GOVERNOR WEIGHT

Note: Use up to Engine SN 2025252.

$19.99

$

Usually ships in 3-6 days

0

20

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

21

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

$3.99

$

In Stock, Qty 5

0

21

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, Qty 5

0

22

Honda 16541-ZE8-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$14.99

$

Usually ships in 3-6 days

0

23

Honda 17240-ZE6-000

COLLAR, EXTENSION

$4.99

$

In Stock, only 1 left!

0

24

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

25

Honda 90014-ZE6-000

BOLT, FLANGE (6X35)

$2.99

$

In Stock, Qty 6

0

26

Honda 90406-VM6-000

WASHER, THRUST (8.1MM)

$3.99

$

Usually ships in 3-6 days

0

27

Honda 90473-147-000

SEE PART DETAILS - PRI; WASHER (6X16)

Note: Use up to Engine SN 2020379.

$1.99

$

In Stock, only 2 left!

0

28

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 6

0

29

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.99

$

In Stock, only 2 left!

0

30

Honda 91001-ZF5-003

BEARING, RADIAL BALL (6202)

$18.99

$

Usually ships in 3-6 days

0

31

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$10.99

$

In Stock, Qty 8

0

32

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

32

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, Qty 11

0

33

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.5X2.2)

$2.49

$

In Stock, Qty 12

0

34

Honda 91302-ZE9-003

SEE PART DETAILS - PRI; O-RING (11.8X2.4)

$3.49

$

Usually ships in 3-6 days

0

35

Honda 91501-ZF5-000

COLLAR, OIL FILTER SETTING

$3.99

$

Usually ships in 3-6 days

0

36

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

37

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

38

Honda 94103-06700

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

39

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 4 left!

0

40

Honda 94251-08000

PIN, LOCK (8MM)

Note: Use up to Engine SN 2042122.

$1.99

$

In Stock, Qty 13

0

40

Honda 94251-10000

PIN, LOCK (10MM)

Note: Use from Engine SN 2042123.

$1.99

$

In Stock, Qty 5

0

41

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

41

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

42

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

In Stock, Qty 8

0

43

Honda 95701-08040-08

BOLT, FLANGE (8X40)

$2.99

$

Usually ships in 3-6 days

0

44

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$12.99

$

Usually ships in 3-6 days

0

45

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0

45

Honda 96100-62073-00

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6207)
(Superseded to 96100-62070-00)

Note: Use from Engine SN 2056133.

$56.99

$

Usually ships in 3-6 days

0
