H4013 SA/A (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-1000001 - MZAR-1999999) CHANGE LEVER (H4013) Parts Diagram

Lawn Tractor, Made in Japan

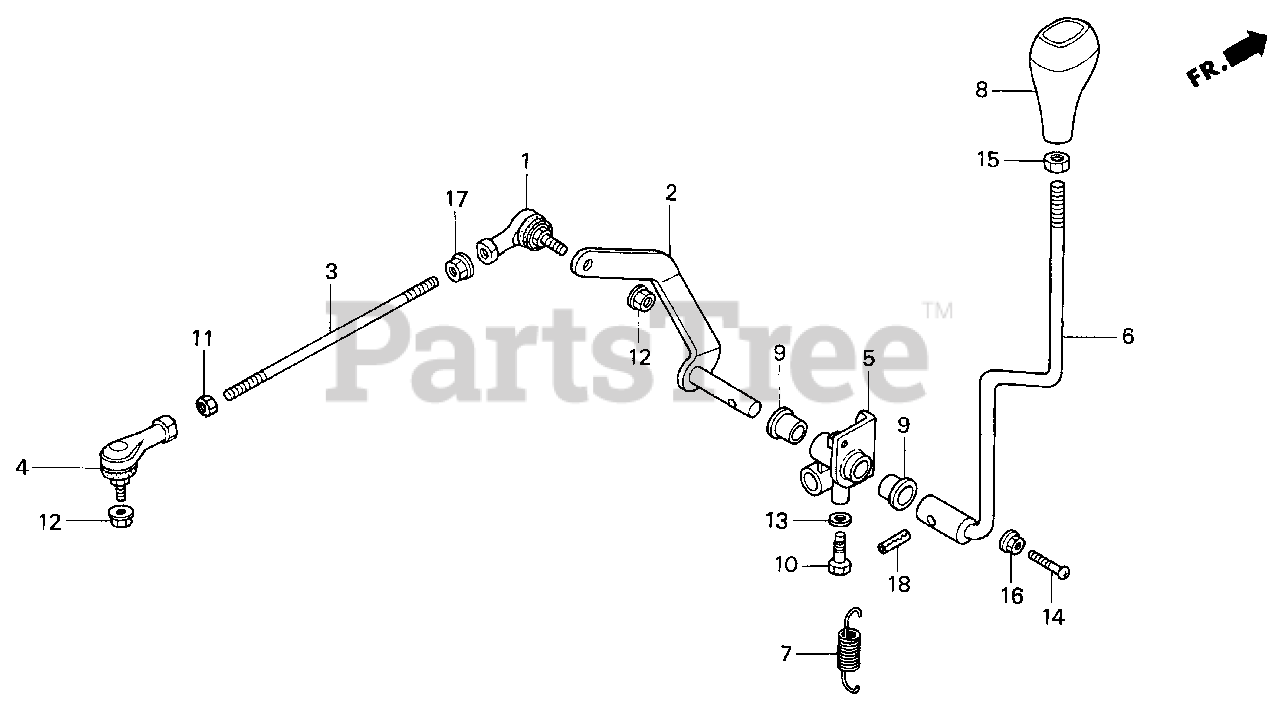

CHANGE LEVER (H4013) Parts Diagram

  • Title

1

Honda 24125-758-000

SEE PART DETAILS - SUP; JOINT, R. BALL
(Superseded to 52352-GM6-003)

$31.99

$

Usually ships in 3-6 days

0

2

Honda 24126-758-703

ARM, CHANGE

$

$

Not available

3

Honda 24128-758-701

ROD, GEARSHIFT

$

$

Not available

4

Honda 24129-751-003

JOINT, L. BALL

$40.99

$

Usually ships in 3-6 days

0

5

Honda 24133-758-701

BOSS, CHANGE LEVER

$

$

Not available

6

Honda 24137-758-701

LEVER, CHANGE

$53.99

$

Usually ships in 3-6 days

0

7

Honda 46514-MJ0-000

SPRING, BRAKE PEDAL

$7.99

$

Usually ships in 3-6 days

0

8

Honda 54225-763-A01

KNOB, SHIFT LEVER

$51.99

$

Usually ships in 3-6 days

0

9

Honda 76126-759-M10

BUSH (16X18X20)

$

$

Not available

10

Honda 90029-PB6-911

SEE PART DETAILS - SUP; BOLT, SPECIAL (8X24)

$

$

Currently unavailable

11

Honda 90201-750-000

NUT, HEX. (8MM)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: Use up to Frame SN 1002450.

$4.99

$

In Stock, Qty 6

0

12

Honda 94050-08080

NUT, FLANGE (8MM)

Note: Use from Frame SN 1002451.

$1.49

$

In Stock, Qty 15

0

13

Honda 90412-679-000

WASHER, CONICAL SPRING (8MM)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 93500-06035-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X35)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94002-12020-0S

NUT, HEX. (12MM)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

17

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

18

Honda 94305-80282

PIN, SPRING (8X28)

$2.99

$

Usually ships in 3-6 days

0
