H4013 SA/A (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-1000001 - MZAR-1999999) AIR GUIDE (H4013) Parts Diagram

Lawn Tractor, Made in Japan

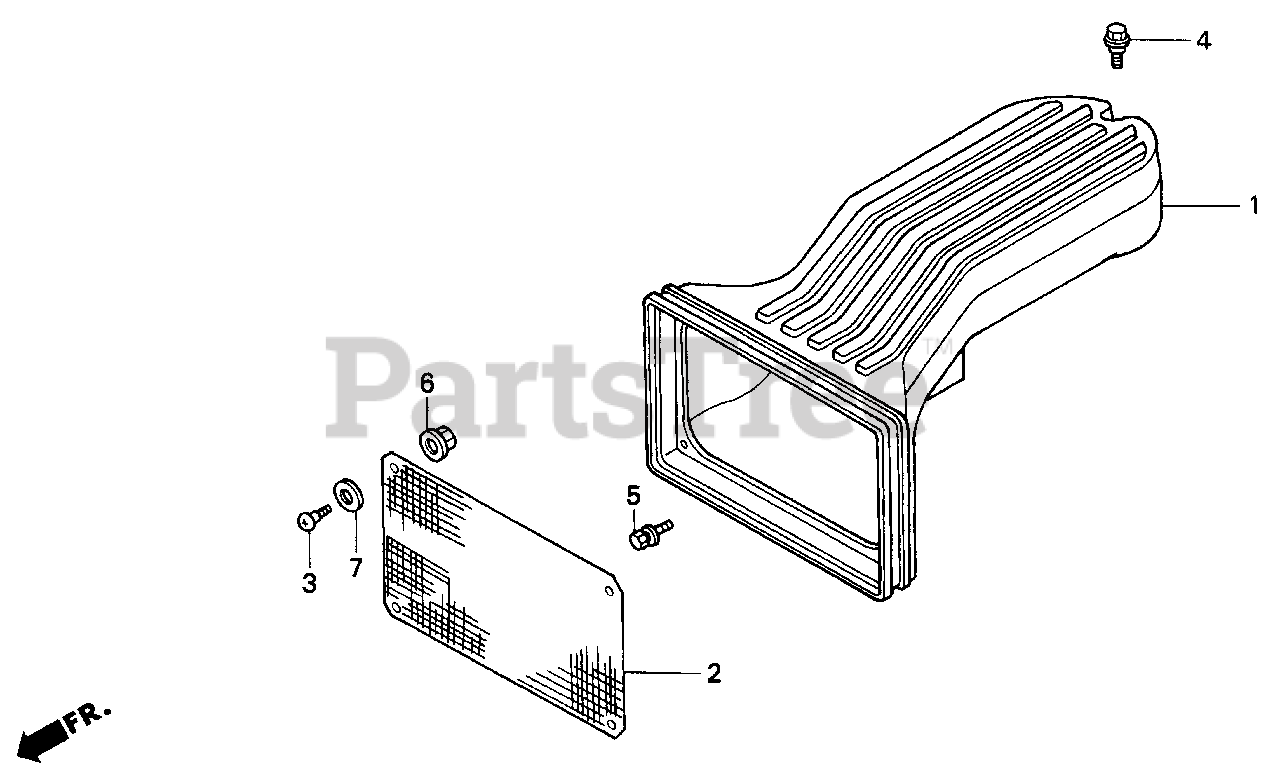

AIR GUIDE (H4013) Parts Diagram

  • Title
1

Honda 18515-758-701

GUIDE, AIR

$

$

Not available

2

Honda 60156-758-701

SCREEN, DUST

$

$

Not available

3

Honda 90105-ML7-000

SEE PART DETAILS - PRI; SCREW, PANEL SETTING (INNER)

$

$

Not available

4

Honda 90109-434-000

BOLT (6MM)

$3.99

$

In Stock, only 1 left!

0

5

Honda 93404-06012-07

SEE PART DETAILS - PRI; BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

6

Honda 94050-06070

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$1.99

$

In Stock, only 2 left!

0

7

Honda 94102-08700

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0
