H4000 (8954-0) - Generac 4,000 Watt Portable Generator Sheet Metal Model No. 8954-0 Parts Diagram

4,000 Watt Portable Generator

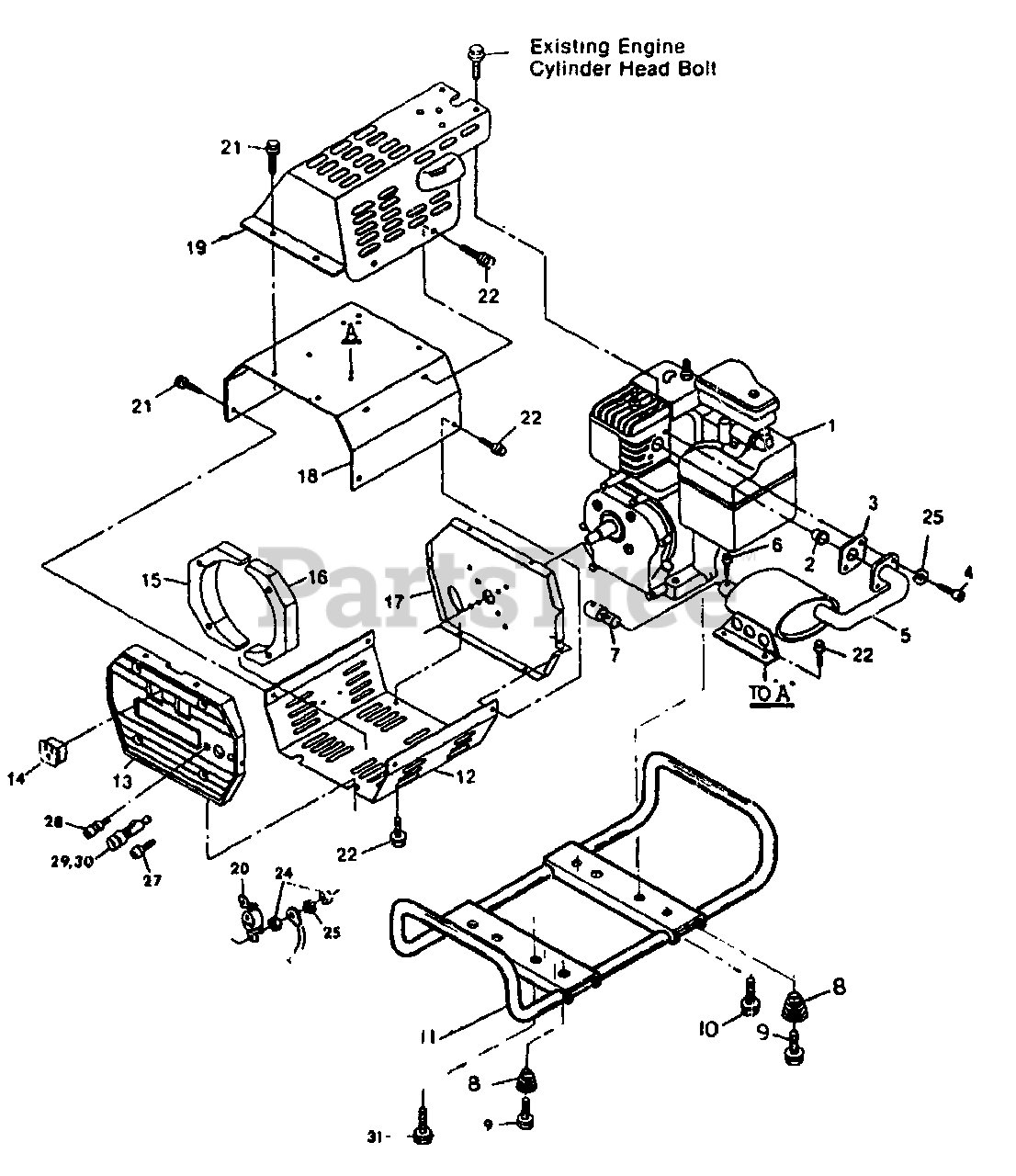

Sheet Metal Model No. 8954-0 Parts Diagram

  • Title

1

Briggs & Stratton 69647

ENGINE ASSY

$

$

Currently unavailable

2

Liner, Exhaust Port (H2250 Only)

Note: Not used on this model

$

$

Not available

3

Briggs & Stratton 58894

GASKET, Exhaust
(Superseded to 58894GS)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 36781

CAPSCREW, Socket Head

$

$

Currently unavailable

5

Briggs & Stratton 58195

MUFFLER, Exhaust

Note: Include items 6 & 7

$

$

Currently unavailable

6

Briggs & Stratton 22774

SCREW (Sheet metal)- No. 8-32 x 3/8"

$

$

Currently unavailable

7

Briggs & Stratton 59604

SCREEN, Spark Arrestor

$

$

Currently unavailable

8

Briggs & Stratton 23594

SPRING, Vibration

$

$

Currently unavailable

9

Briggs & Stratton 24910

SCREW (Taptite)- 5/16"-18 x 1/2"

$

$

Not available

10

Briggs & Stratton 59637

SCREW (Taptite)- 3/8"-16 x 3/4"

$

$

Not available

11

Briggs & Stratton 71814

BASE, Mounting

$

$

Currently unavailable

12

Briggs & Stratton 58876A

WRAPPER, Lower Generator

$

$

Currently unavailable

13

Briggs & Stratton 63112B

PANEL, End

$

$

Currently unavailable

14

Briggs & Stratton 58888

RECEPTACLE- 120 volts

$

$

Not available

15

Briggs & Stratton 58887B

BAFFLE, Generator End (RH)

$

$

Currently unavailable

16

Briggs & Stratton 588870A

BAFFLE, Generator End (LH)

$

$

Currently unavailable

17

Briggs & Stratton 60209

ADAPTER, Sheet Metal

$

$

Currently unavailable

18

Briggs & Stratton 58875B

WRAPPER, Generator Upper

$

$

Currently unavailable

19

Briggs & Stratton 58884

GUARD, Exhaust Muffler

$

$

Currently unavailable

20

Briggs & Stratton 58889

RECEPTACLE- 120/240 volts a-c

$

$

Not available

21

Briggs & Stratton 59635

SCREW (Plastite)-No.8 x 3/8"

$

$

Currently unavailable

22

Briggs & Stratton 56892

SCREW (Crimptite)-No. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 23364

LOCKWASHER- No. 6
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22188

NUT, Hex - No. 6-32

$

$

Currently unavailable

25

WASHER, Exhaust Manifold

$

$

Not available

26

Briggs & Stratton 22389

SCREW, Machine- No. 6-32 x 3/4"
(Superseded to 5022389)

$20.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 25367

TERMINAL, Battery Charge (Red)
(Superseded to 25367GS)

$21.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 25368

TERMINAL, Battery Charge (Black)

$

$

Not available

29

Briggs & Stratton 26668

FUSE- 30 amp
(Superseded to 7026668YP)

$92.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 32300

HOLDER, Fuse
(Superseded to 191302GS)

$

$

Not available

31

Briggs & Stratton 59634

SCREW (Plastite)- 1/4" x 1"

$

$

Not available

Briggs & Stratton 71824

OWNER'S MANUAL
(Superseded to 71824GS)

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A25383

CABLE, Battery Charge

$

$

Currently unavailable
