H3013 H HSA (MZAH) - Honda Riding Mower, Made in Japan (SN: MZAH-6000001 - MZAH-9999999) OIL PAN Parts Diagram

Riding Mower, Made in Japan

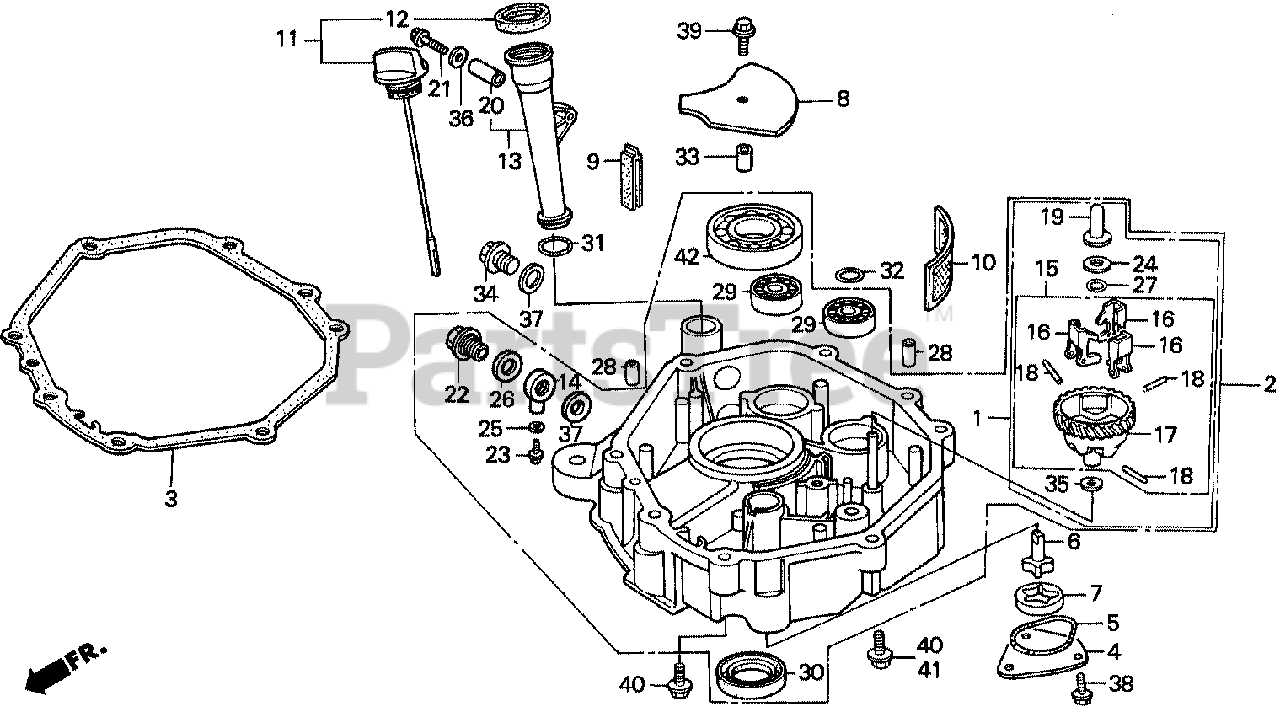

OIL PAN Parts Diagram

  • Title
1

Honda 06165-ZE3-000

GOVERNOR KIT
(Superseded to 06165-ZE3-020)

Note: (Optional). Use from Engine SN 2025268.

$24.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE8-000

GOVERNOR KIT

Note: (Optional). Use up to Engine SN 2025267.

$21.99

$

Usually ships in 3-6 days

0

2

Honda 11300-ZF5-Q00

PAN ASSY., OIL

Note: Use from Engine SN 2053068.

$353.99

$

Usually ships in 3-6 days

0

2

Honda 113A0-ZF5-L01

PAN ASSY., OIL

Note: Use up to Engine SN 2025267.

$

$

Not available

2

Honda 11300-ZF5-L02

PAN ASSY., OIL

Note: Use from Engine SN 2025268.

$

$

Not available

3

Honda 11381-ZE9-306

SEE PART DETAILS - SUP; GASKET, OIL PAN
(Superseded to 11381-ZE9-801)

Note: Use up to Engine SN 2019211.

$16.99

$

In Stock, only 3 left!

0

3

Honda 11381-ZE9-800

SEE PART DETAILS - PRI; GASKET, OIL PAN
(Superseded to 11381-ZE9-801)

Note: Use up to Engine SN 2063536.

$16.99

$

In Stock, only 3 left!

0

3

Honda 11381-ZE9-801

GASKET, OIL PAN

Note: Use from Engine SN 2063537.

$16.99

$

In Stock, only 3 left!

0

4

Honda 15130-ZE8-000

COVER, OIL PUMP

$9.99

$

Usually ships in 3-6 days

0

5

Honda 15131-ZE9-003

O-RING, PUMP COVER

$4.49

$

In Stock, only 3 left!

0

6

Honda 15330-ZE8-000

ROTOR (INNER)

$22.99

$

Usually ships in 3-6 days

0

7

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER)

$18.99

$

Usually ships in 3-6 days

0

8

Honda 15334-ZE8-010

PLATE, OIL FILTER

$4.49

$

Usually ships in 3-6 days

0

9

Honda 15335-ZE9-000

RUBBER, OIL RETURN

$5.99

$

Usually ships in 3-6 days

0

10

Honda 15421-ZE9-003

SCREEN, OIL FILTER

$15.99

$

In Stock, only 1 left!

0

11

Honda 15600-ZF5-000

SEE PART DETAILS - SUP; CAP ASSY., OIL FILLER
(Superseded to 15600-Z5N-800)

$4.49

$

In Stock, only 2 left!

0

11

Honda 15600-Z5N-800

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

$4.49

$

In Stock, only 2 left!

0

12

Honda 15625-ZE8-000

GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

13

Honda 15630-ZE8-000

EXTENSION, OIL FILLER
(Superseded to 15630-Z5N-800)

$5.99

$

In Stock, only 1 left!

0

14

Honda 15642-ZF5-L00

JOINT, OIL DRAIN

$10.99

$

Usually ships in 3-6 days

0

15

Honda 16510-ZE3-000

GOVERNOR ASSY.

Note: Use from Engine SN 2025253.

$31.99

$

Usually ships in 3-6 days

0

15

Honda 16510-ZE8-000

GOVERNOR ASSY. (NOT AVAILABLE)

Note: Use up to Engine SN 2025252.

$

$

Not available

16

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

17

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

Note: Use from Engine SN 2025253.

$18.99

$

Usually ships in 3-6 days

0

17

Honda 16512-ZE8-000

HOLDER, GOVERNOR WEIGHT

Note: Use up to Engine SN 2025252.

$19.99

$

Usually ships in 3-6 days

0

18

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

19

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

$3.99

$

In Stock, Qty 5

0

19

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, Qty 5

0

20

Honda 17240-ZE6-000

COLLAR, EXTENSION

$4.99

$

In Stock, only 1 left!

0

21

Honda 90014-ZE8-000

BOLT, HEAD COVER

$6.99

$

Usually ships in 3-6 days

0

22

Honda 90031-ZF5-L00

BOLT, OIL JOINT

$29.99

$

Usually ships in 3-6 days

0

23

Honda 90131-ZE1-000

BOLT, DRAIN PLUG

$3.49

$

In Stock, only 1 left!

0

24

Honda 90473-147-000

WASHER (6X16)

Note: Use up to Engine SN 2020322.

$1.99

$

In Stock, only 2 left!

0

25

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

26

Honda 90601-ZF5-L00

WASHER, OIL DRAIN (24MM)

$6.99

$

Usually ships in 3-6 days

0

27

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 6

0

27

Honda 90602-896-000

CLIP, GOVERNOR HOLDER

$1.99

$

Usually ships in 3-6 days

0

28

Honda 90701-HC4-000

PIN, DOWEL (8X12)

Note: Use from Engine SN 1000220.

$3.99

$

In Stock, only 2 left!

0

28

Honda 94301-08120

PIN A, DOWEL (8X12)

Note: Use up to Engine SN 1000219.

$2.99

$

Usually ships in 3-6 days

0

29

Honda 91001-ZF5-003

BEARING, RADIAL BALL (6202)

$18.99

$

Usually ships in 3-6 days

0

30

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$10.99

$

In Stock, Qty 8

0

31

Honda 91301-ZE9-003

O-RING (22.1X2.2)

$2.49

$

In Stock, Qty 12

0

32

Honda 91302-ZE9-003

O-RING (11.8X2.4)

$3.49

$

Usually ships in 3-6 days

0

33

Honda 91501-ZF5-000

COLLAR, OIL FILTER SETTING

$3.99

$

Usually ships in 3-6 days

0

35

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

36

Honda 94103-06700

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

37

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 4 left!

0

38

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

39

Honda 95701-06025-00

BOLT, FLANGE (6X25)

$2.49

$

In Stock, Qty 8

0

40

Honda 95701-08040-08

BOLT, FLANGE (8X40)

Note: Use up to Engine SN 2052276.

$2.99

$

Usually ships in 3-6 days

0

40

Honda 95701-08040-08

BOLT, FLANGE (8X40)

Note: Use from Engine SN 2052277.

$2.99

$

Usually ships in 3-6 days

0

41

Honda 95701-08060-08

BOLT, FLANGE (8X60)

Note: Use from Engine SN 2052277.

$3.49

$

In Stock, only 1 left!

0

42

Honda 96100-62070-00

BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0

42

Honda 96100-62073-00

BEARING, RADIAL BALL (6207)
(Superseded to 96100-62070-00)

Note: Use from Engine SN 2053068.

$56.99

$

Usually ships in 3-6 days

0
