H3013 H HSA (MZAH) - Honda Riding Mower, Made in Japan (SN: MZAH-6000001 - MZAH-9999999) CYLINDER Parts Diagram

Riding Mower, Made in Japan

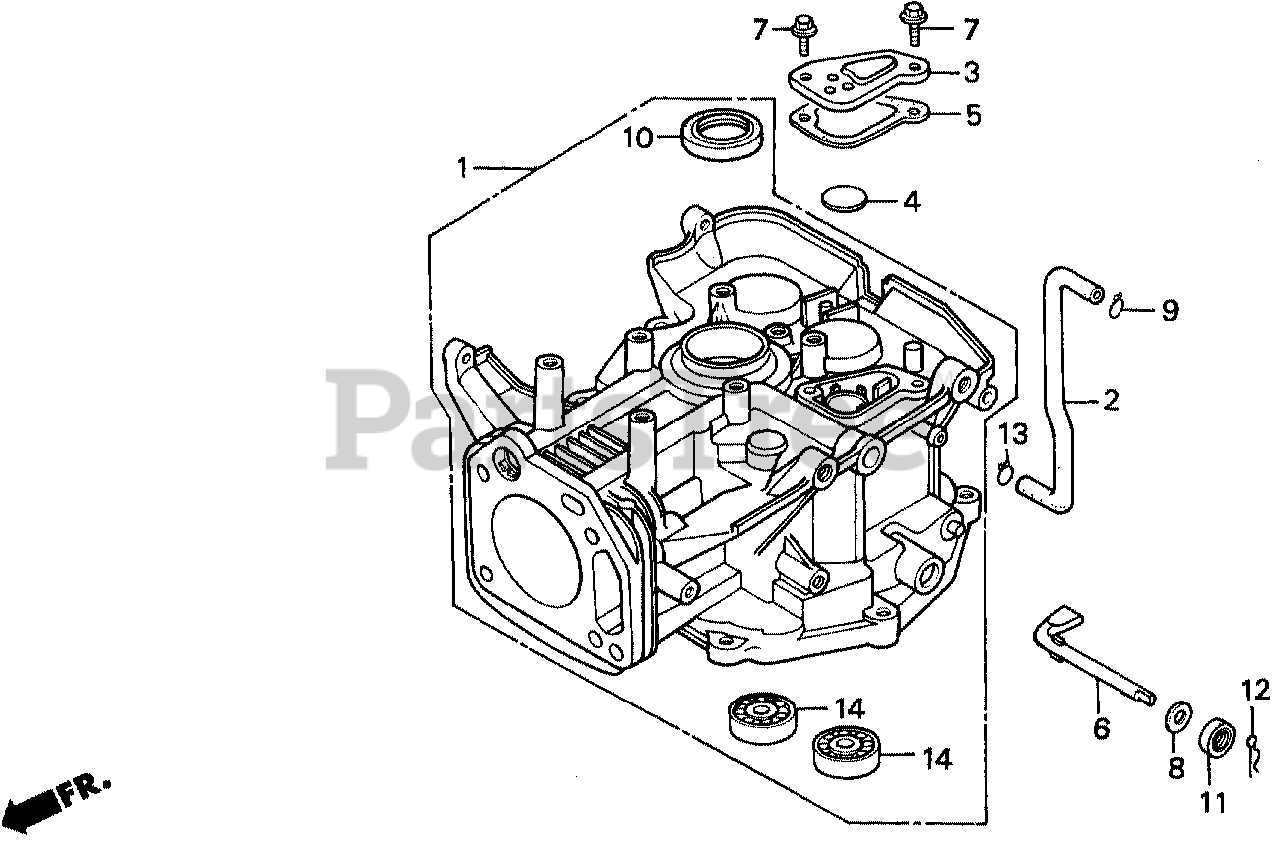

CYLINDER Parts Diagram

  • Title

1

Honda 12000-Z1E-405

CYLINDER ASSY.

Note: Use from Engine SN 2059620.

$228.99

$

Usually ships in 3-6 days

0

2

Honda 12315-ZF5-000

TUBE, BREATHER

$9.49

$

Usually ships in 3-6 days

0

3

Honda 12370-ZF5-000

CAP, BREATHER CHAMBER

$9.49

$

Usually ships in 3-6 days

0

4

Honda 12372-ZE2-300

VALVE, BREATHER

$3.99

$

In Stock, Qty 5

0

5

Honda 12373-ZE8-000

GASKET, BREATHER CAP

$3.49

$

Usually ships in 3-6 days

0

6

Honda 16541-ZE8-000

SHAFT, GOVERNOR ARM

$15.99

$

Usually ships in 3-6 days

0

7

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 16

0

8

Honda 90406-VM6-000

WASHER, THRUST (8.1MM)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90652-MB1-000

CLIP, TUBE

$1.99

$

Usually ships in 3-6 days

0

10

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$11.99

$

In Stock, Qty 5

0

11

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

12

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 6

0

13

Honda 95002-70000

CLIP, TUBE (C11)

Note: Use up to Engine SN 2019955.

$2.49

$

In Stock, only 1 left!

0

14

Honda 91001-ZF5-003

BEARING, RADIAL BALL (6202)

$18.99

$

Usually ships in 3-6 days

0
