H3013 H HSA (MZAH) - Honda Riding Mower, Made in Japan (SN: MZAH-6000001 - MZAH-9999999) 11H/13H THROTTLE LEVER Parts Diagram

Riding Mower, Made in Japan

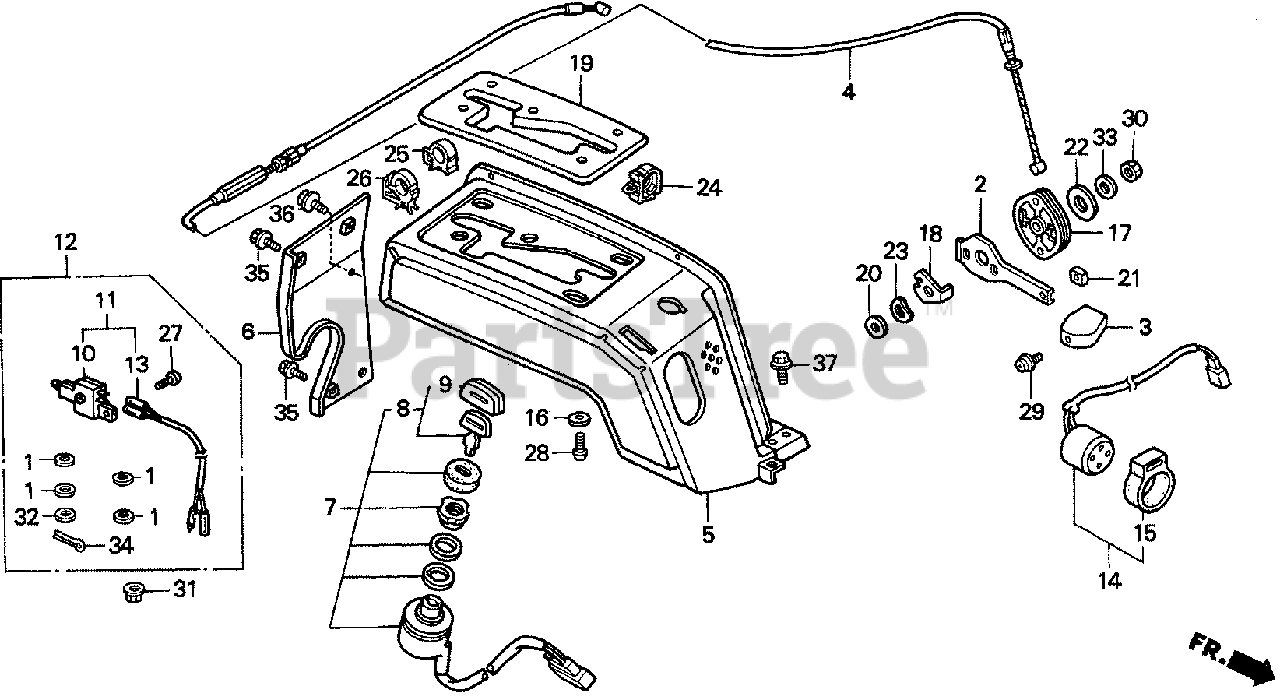

11H/13H THROTTLE LEVER Parts Diagram

  • Title

1

Honda 16579-ZG1-750

WASHER, CONTROL (SOURCE: VINTAGE PARTS INC.)

$4.99

$

Usually ships in 3-6 days

0

2

Honda 17851-952-010

SEE PART DETAILS - SUP; LEVER, THROTTLE
(Superseded to 17851-750-000)

$

$

Not available

3

Honda 17853-763-A01

KNOB, THROTTLE LEVER

$19.99

$

Usually ships in 3-6 days

0

4

Honda 17910-763-A03

CABLE, THROTTLE

$28.99

$

Usually ships in 3-6 days

0

5

Honda 24139-763-D03ZA

GUIDE, CHANGE LEVER *R165* (JOLLY RED)

$

$

Not available

6

Honda 24428-763-A01

STAY, CHANGE GUIDE

$26.99

$

Usually ships in 3-6 days

0

7

Honda 35100-763-A02

SWITCH ASSY., COMBINATION

$144.99

$

Usually ships in 3-6 days

0

8

Honda 35110-VA3-903

SEE PART DETAILS - PRI; KEY ASSY., COMBINATION SWITCH

$10.99

$

Usually ships in 3-6 days

0

9

Honda 35113-459-730

CAP, KEY

$7.49

$

Usually ships in 3-6 days

0

10

Honda 35330-MB0-003

SWITCH ASSY., CLUTCH

$23.99

$

Usually ships in 3-6 days

0

11

Honda 35600-763-D02

SWITCH ASSY., NEUTRAL

$60.99

$

Usually ships in 3-6 days

0

12

Honda 35607-763-D03

SWITCH SET, NEUTRAL

$89.99

$

Usually ships in 3-6 days

0

13

Honda 35615-763-D00

WIRE, NEUTRAL SWITCH

$19.99

$

Usually ships in 3-6 days

0

14

Honda 38400-763-A01

BUZZER ASSY., WARNING

$78.99

$

Usually ships in 3-6 days

0

15

Honda 38402-GC1-000

SUSPENSION, AUDIBLE PILOT

$8.99

$

Usually ships in 3-6 days

0

16

Honda 52315-GM6-003

WASHER (5MM)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 54226-952-000

REEL, CONTROL CABLE

$10.99

$

Usually ships in 3-6 days

0

18

Honda 54227-952-010

STOPPER, REEL

$7.99

$

Usually ships in 3-6 days

0

19

Honda 65166-763-D00ZA

TRIM, CHANGE GUIDE *R165* (JOLLY RED)

$24.99

$

Usually ships in 3-6 days

0

20

Honda 90408-KK0-000

WASHER (11MM)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90411-750-000

NUT, SQUARE (4MM)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 90431-KM1-010

WASHER, THRUST (16.2X30X2.0)

$5.49

$

In Stock, only 1 left!

0

23

Honda 90444-397-000

WASHER, WAVE (12MM)

$5.99

$

In Stock, only 1 left!

0

24

Honda 90683-KJ2-003

CLIP, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0

25

Honda 90690-GHB-631

CLIP, CABLE (8MM)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 90690-GHB-641

CLIP, CABLE (10MM)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 93500-04012-0H

SCREW, PAN (4X12)

$1.49

$

In Stock, Qty 10

0

28

Honda 93500-05006-0H

SCREW, PAN (5X6)

$0.99

$

In Stock, only 4 left!

0

29

Honda 93892-04008-07

SCREW-WASHER (4X8)

$1.49

$

In Stock, only 4 left!

0

30

Honda 94001-06080-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 6

0

31

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

32

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

33

Honda 94103-06800

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

34

Honda 94201-20120

PIN, SPLIT (2.0X12)

$1.49

$

In Stock, Qty 7

0

35

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

36

Honda 95701-06016-07

BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0

37

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
