H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) WIRE HARNESS Parts Diagram

Riding Mower, Made in Japan

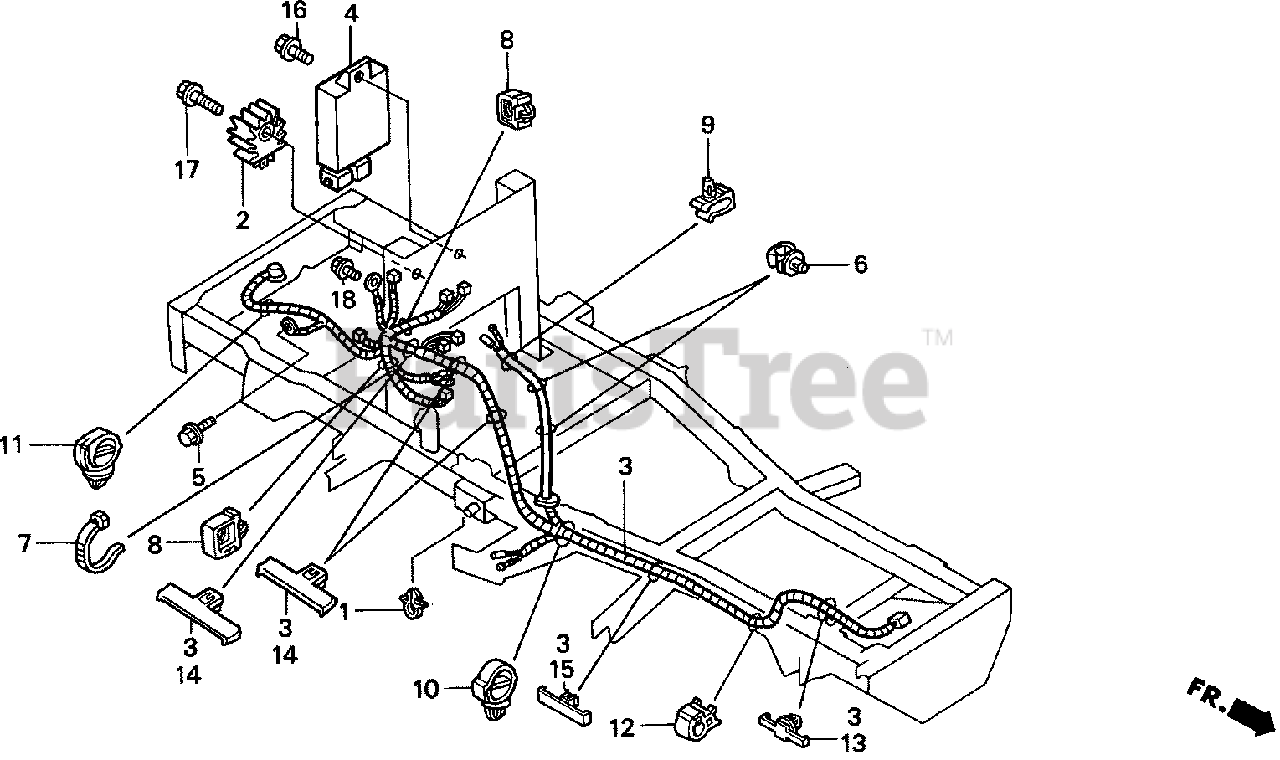

WIRE HARNESS Parts Diagram

  • Title

1

Honda 30701-887-790

CLIP, IGNITION WIRE

$5.49

$

Usually ships in 3-6 days

0

2

Honda 31601-197-711

SEE PART DETAILS - SUP; RECTIFIER, REGULATE
(Superseded to 31750-735-013)

$37.99

$

Usually ships in 3-6 days

0

2

Honda 31750-735-013

SEE PART DETAILS - PRI; RECTIFIER, REGULATOR (5A)

$37.99

$

Usually ships in 3-6 days

0

3

Honda 32100-763-A02

WIRE HARNESS ASSY., MAIN (NOT AVAILABLE)

Note: Use up to Frame SN 5005582.

$

$

Currently unavailable

3

Honda 32100-763-A03

WIRE HARNESS ASSY., MAIN

Note: Use from Frame SN 5005583.

$

$

Not available

4

Honda 38450-763-A02

RELAY ASSY., COMBINATION

$

$

Not available

5

Honda 90153-SE0-003

BOLT, GROUND (6X12)

$0.99

$

Usually ships in 3-6 days

0

6

Honda 90603-ZA0-921

CLIP, WIRE HARNESS

$2.49

$

Usually ships in 3-6 days

0

8

Honda 90651-750-801

CLIP, HARNESS (10MM)

$3.99

$

In Stock, only 3 left!

0

9

Honda 90659-735-921

CLIP, CORD

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90681-763-A01

CLIP, WIRE HARNESS

$10.99

$

Usually ships in 3-6 days

0

11

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 90690-GHB-631

CLIP, CABLE (8MM)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 91507-752-003

CLIP, WIRE HARNESS (50MM) (GRAY)

Note: Use from Frame SN 5005583.

$13.99

$

Usually ships in 3-6 days

0

14

Honda 91508-752-003

CLIP, WIRE HARNESS

$9.49

$

Usually ships in 3-6 days

0

15

Honda 91553-SF4-003

CLIP, WIRE HARNESS (BLACK)

$7.49

$

Usually ships in 3-6 days

0

16

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-06030-08

BOLT, FLANGE (6X30)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
