H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) REAR AXLE + REAR WHEEL Parts Diagram

Riding Mower, Made in Japan

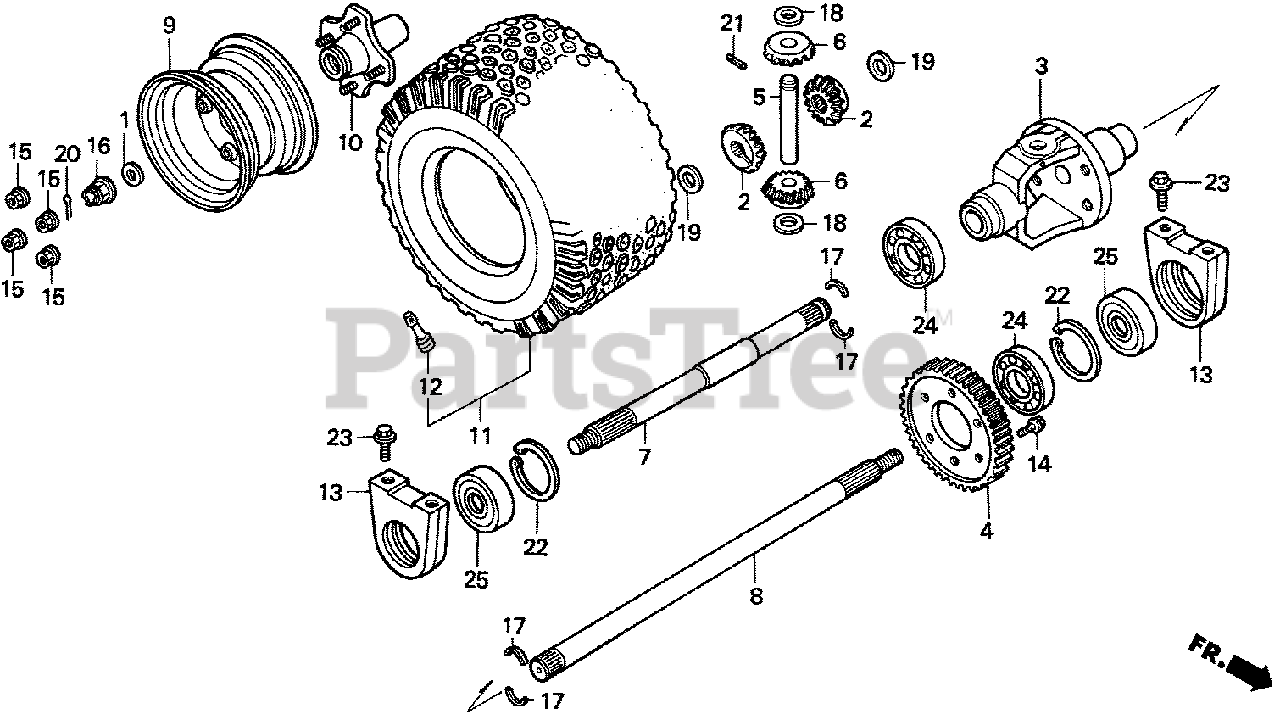

REAR AXLE + REAR WHEEL Parts Diagram

  • Title

1

Honda 14778-PA6-003

WASHER (26MM) (SOURCE: VINTAGE PARTS INC.)

$

$

Not available

2

Honda 41241-751-700

GEAR, DIFFERENTIAL

$77.99

$

Usually ships in 3-6 days

0

3

Honda 41311-751-000

CASE, DIFFERENTIAL GEAR

$

$

Not available

4

Honda 41312-763-A00

GEAR, FINAL DRIVEN (48T)

$

$

Not available

5

Honda 41321-751-000

SHAFT, DIFFERENTIAL

$21.99

$

Usually ships in 3-6 days

0

6

Honda 41341-751-000

PINION, DIFFERENTIAL

$71.99

$

Usually ships in 3-6 days

0

7

Honda 41410-751-700

SHAFT, R. AXLE

$

$

Not available

8

Honda 41420-751-700

SHAFT, L. AXLE

$144.99

$

Usually ships in 3-6 days

0

9

Honda 42711-763-A01ZA

RIM, WHEEL *NH35M* (CLOUD SILVER METALLIC)

$

$

Not available

11

Honda 42751-763-A01

SEE PART DETAILS - SUP; TIRE, RR. TUBELESS (16X6.50-8NHS) (GOODYEAR)
(Superseded to 42751-763-505)

$183.99

$

Usually ships in 3-6 days

0

11

Honda 42751-763-505

SEE PART DETAILS - PRI; TIRE, RR. TUBELESS (16X6.50-8NHS) (GOODYEAR)

$183.99

$

Usually ships in 3-6 days

0

12

Honda 42753-VM0-003

VALVE, RIM

$13.99

$

Usually ships in 3-6 days

0

13

Honda 50123-763-A00

HOLDER, BEARING

$90.99

$

Usually ships in 3-6 days

0

14

Honda 90113-750-000

BOLT, SPECIAL (10X17)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 90304-763-A01

NUT, WHEEL (12X1.5)

$6.99

$

Usually ships in 3-6 days

0

16

Honda 90305-401-680

NUT, AXLE (14MM)

$15.99

$

Usually ships in 3-6 days

0

17

Honda 90502-751-700

COTTER (15MM)

$12.99

$

Usually ships in 3-6 days

0

18

Honda 90521-751-000

WASHER A, DIFFERENTIAL PINION (14.2X26X0.7)

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90522-751-000

WASHER B, DIFFERENTIAL PINION (14.2X26X0.8)

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90523-751-000

WASHER C, DIFFERENTIAL PINION (14.2X26X0.9)

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90524-751-000

WASHER D, DIFFERENTIAL PINION (14.2X26X1.0)

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

19

Honda 90525-750-000

WASHER, DIFFERENTIAL GEAR

$5.49

$

In Stock, Qty 12

0

20

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

In Stock, Qty 20+

0

20

Honda 94201-30450

PIN, SPLIT (3.0X45)

$1.49

$

In Stock, Qty 20+

0

21

Honda 94305-40322

PIN, SPRING (4X32)

$2.99

$

In Stock, only 2 left!

0

22

Honda 94520-47000

CIRCLIP (INNER) (47MM)

$2.99

$

In Stock, only 2 left!

0

23

Honda 95701-10016-08

BOLT, FLANGE (10X16)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 96100-60060-00

BEARING, RADIAL BALL (6006)

$17.99

$

Usually ships in 3-6 days

0

25

Honda 96150-62040-10

BEARING, RADIAL BALL (6204UU)

$27.99

$

In Stock, only 1 left!

0
