H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) FRONT AXLE + FRONT WHEEL Parts Diagram

Riding Mower, Made in Japan

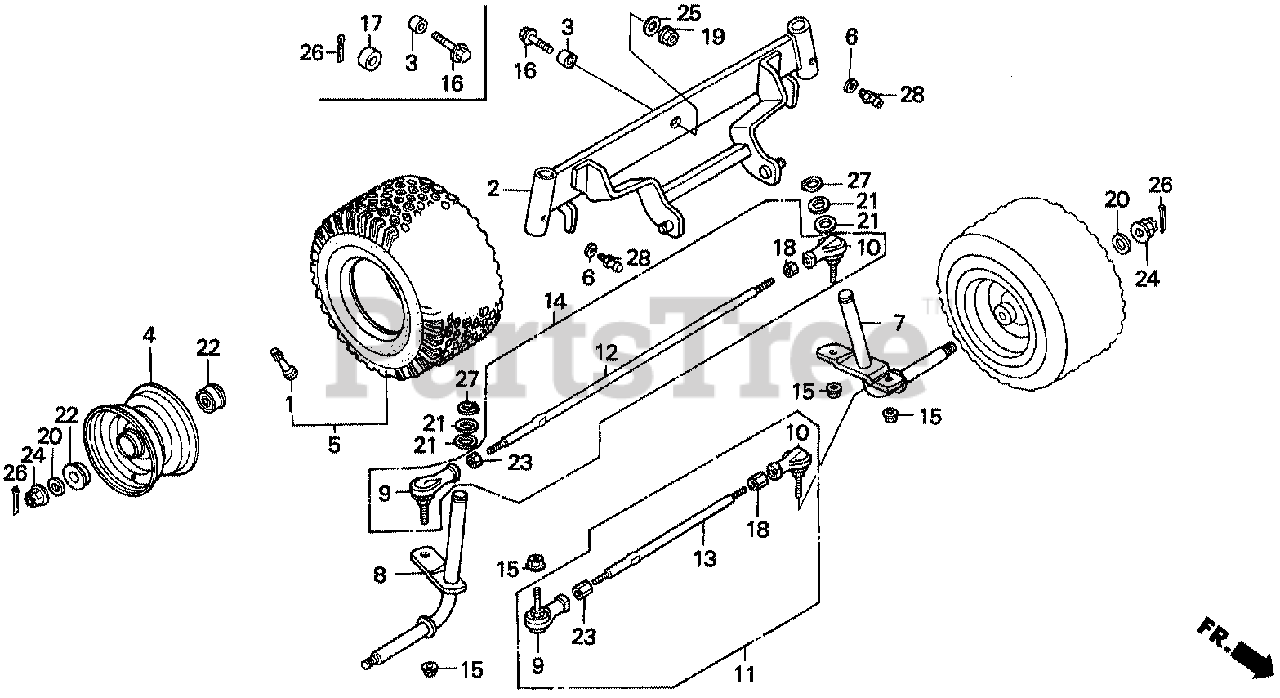

FRONT AXLE + FRONT WHEEL Parts Diagram

  • Title

1

Honda 42753-VM0-003

VALVE, RIM

$14.99

$

Usually ships in 3-6 days

0

2

Honda 44110-763-A00

AXLE, FR.

$275.99

$

Usually ships in 3-6 days

0

3

Honda 44118-763-A00

COLLAR, FR. AXLE

$12.99

$

Usually ships in 3-6 days

0

4

Honda 44710-763-A01ZA

WHEEL, FR. *NH35M* (CLOUD SILVER METALLIC)

$45.99

$

Usually ships in 3-6 days

0

5

Honda 44751-772-000

TIRE, TURF (11X4.00-5)

$

$

Not available

6

Honda 50618-KE8-000

COLLAR (6.5X11X3)

$3.99

$

Usually ships in 3-6 days

0

7

Honda 51210-751-010

KNUCKLE, L.

$95.99

$

Usually ships in 3-6 days

0

8

Honda 51220-751-010

KNUCKLE, R.

$95.99

$

Usually ships in 3-6 days

0

9

Honda 53165-751-000

JOINT, BALL (ER1O)
(Superseded to 53165-792-003)

$38.99

$

Usually ships in 3-6 days

0

10

Honda 53166-751-000

JOINT, BALL (ERL1O)
(Superseded to 53166-792-003)

$42.99

$

Usually ships in 3-6 days

0

11

Honda 53500-751-010

TIE ROD ASSY. B

$126.99

$

Usually ships in 3-6 days

0

12

Honda 53521-751-010

TIE ROD (A)

$39.99

$

In Stock, only 1 left!

0

13

Honda 53522-751-010

TIE ROD (B)

$46.99

$

Usually ships in 3-6 days

0

14

Honda 53600-751-000

TIE ROD ASSY. A

$105.99

$

Usually ships in 3-6 days

0

15

Honda 90002-SA7-000

NUT, SELF-LOCK (10MM)
(Superseded to 90212-671-005)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 90106-763-A00

BOLT, FLANGE (10X55)

$6.49

$

Usually ships in 3-6 days

0

17

Honda 90122-121-970

COLLAR, MUFFLER SETTING

Note: Use from Frame SN 5005577.

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90303-752-000

NUT, HEX. (10MM)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90304-GA6-003

NUT, AXLE (10MM)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90406-751-700

WASHER, SPECIAL (12MM)

$8.49

$

Usually ships in 3-6 days

0

21

Honda 90452-751-000

WASHER, THRUST (17MM)

$4.99

$

In Stock, only 2 left!

0

22

Honda 91052-751-003

BEARING, RADIAL BALL

$17.99

$

Usually ships in 3-6 days

0

23

Honda 94001-10080-0S

NUT, HEX. (10MM)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94011-12000-0S

NUT, CASTLE (12MM)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 94103-10000

WASHER, PLAIN (10MM)

Note: Use up to Frame SN 5005566.

$0.99

$

Usually ships in 3-6 days

0

26

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

Note: Use up to Frame SN 5005576.

$1.49

$

In Stock, Qty 20+

0

26

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

Note: Use from Frame SN 5005577.

$1.49

$

In Stock, Qty 20+

0

26

Honda 94201-30450

PIN, SPLIT (3.0X45)

Note: Use up to Frame SN 5005576.

$1.49

$

In Stock, Qty 20+

0

26

Honda 94201-30450

PIN, SPLIT (3.0X45)

Note: Use from Frame SN 5005577.

$1.49

$

In Stock, Qty 20+

0

27

Honda 94511-17000

CIRCLIP (OUTER) (17MM)

$1.49

$

In Stock, Qty 7

0

28

Honda 96201-10000

NIPPLE, GREASE (A.T6) (M6X1.0)

$3.49

$

Usually ships in 3-6 days

0
