H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) CONTROL (1) Parts Diagram

Riding Mower, Made in Japan

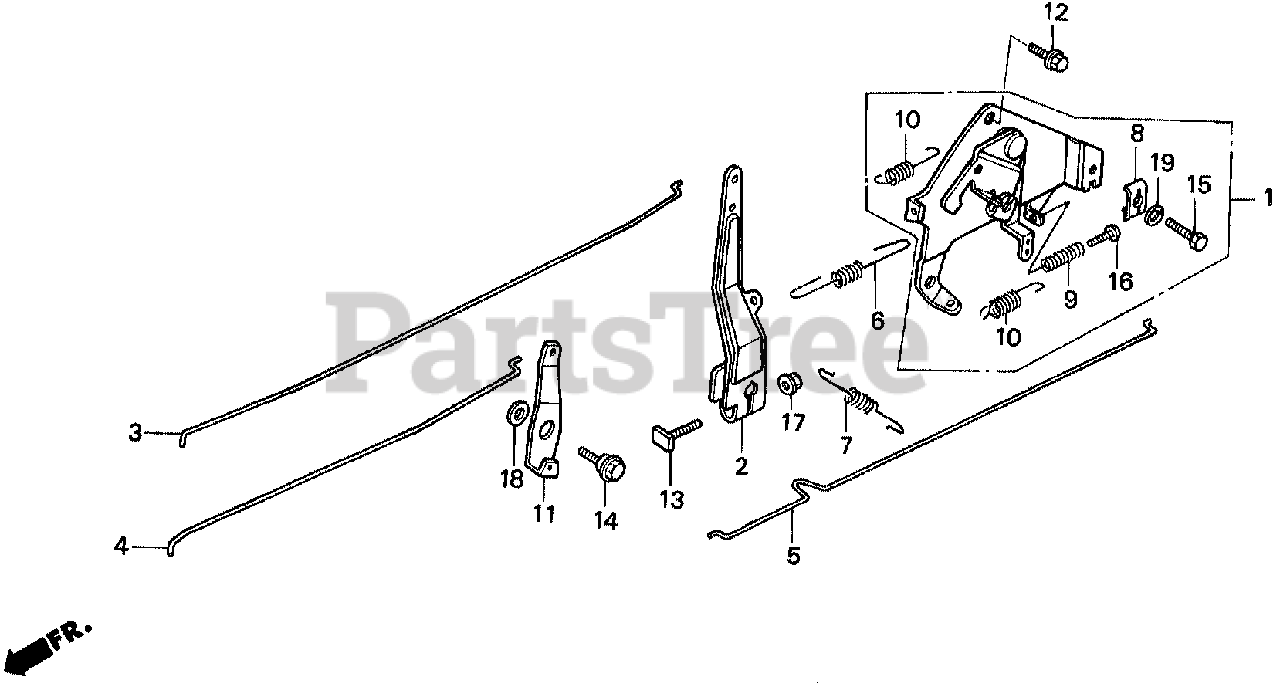

CONTROL (1) Parts Diagram

  • Title
1

Honda 16500-ZF5-L01

CONTROL ASSY.

Note: Use up to Engine SN 2026766.

$69.99

$

Usually ships in 3-6 days

0

2

Honda 16551-ZF5-000

ARM, GOVERNOR

Note: Use up to Engine SN 2026766.

$15.99

$

Usually ships in 3-6 days

0

3

Honda 16555-ZE9-000

ROD, GOVERNOR

Note: Use up to Engine SN 2026766.

$5.49

$

In Stock, only 1 left!

0

4

Honda 16556-ZE9-000

ROD, CHOKE

Note: Use up to Engine SN 2026766.

$4.49

$

In Stock, Qty 10

0

5

Honda 16557-ZE8-000

ROD, JOINT

Note: Use up to Engine SN 2026766.

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16561-ZF5-000

SPRING, GOVERNOR

Note: Use up to Engine SN 2026766.

$5.49

$

In Stock, only 1 left!

0

7

Honda 16563-ZE8-000

SPRING, GOVERNOR PRIMARY

Note: Use up to Engine SN 2026766.

$

$

Not available

8

Honda 16576-891-000

HOLDER, CABLE

Note: Use up to Engine SN 2026766.

$5.49

$

In Stock, only 1 left!

0

9

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: Use up to Engine SN 2026766.

$5.49

$

In Stock, Qty 7

0

10

Honda 16592-732-700

SPRING, CABLE RETURN

Note: Use up to Engine SN 2026766.

$5.49

$

In Stock, only 1 left!

0

11

Honda 16619-ZF5-000

LEVER, CHOKE JOINT

Note: Use up to Engine SN 2026766.

$7.49

$

In Stock, Qty 11

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use up to Engine SN 2026766.

$2.49

$

In Stock, Qty 17

0

13

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: Use up to Engine SN 2026766.

$3.49

$

In Stock, only 3 left!

0

14

Honda 90015-ZE8-000

BOLT, FLANGE (6MM)

Note: Use up to Engine SN 2026766.

$2.99

$

Usually ships in 3-6 days

0

15

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

Note: Use up to Engine SN 2026766.

$1.99

$

Usually ships in 3-6 days

0

16

Honda 93500-05020-0A

SCREW, PAN (5X20)

Note: Use up to Engine SN 2026766.

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: Use up to Engine SN 2026766.

$0.99

$

In Stock, Qty 20+

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: Use up to Engine SN 2026766.

$0.99

$

In Stock, Qty 20+

0

19

Honda 94111-05000

WASHER, SPRING (5MM)

Note: Use up to Engine SN 2026766.

$1.49

$

Usually ships in 3-6 days

0
