H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) CARBURETOR Parts Diagram

Riding Mower, Made in Japan

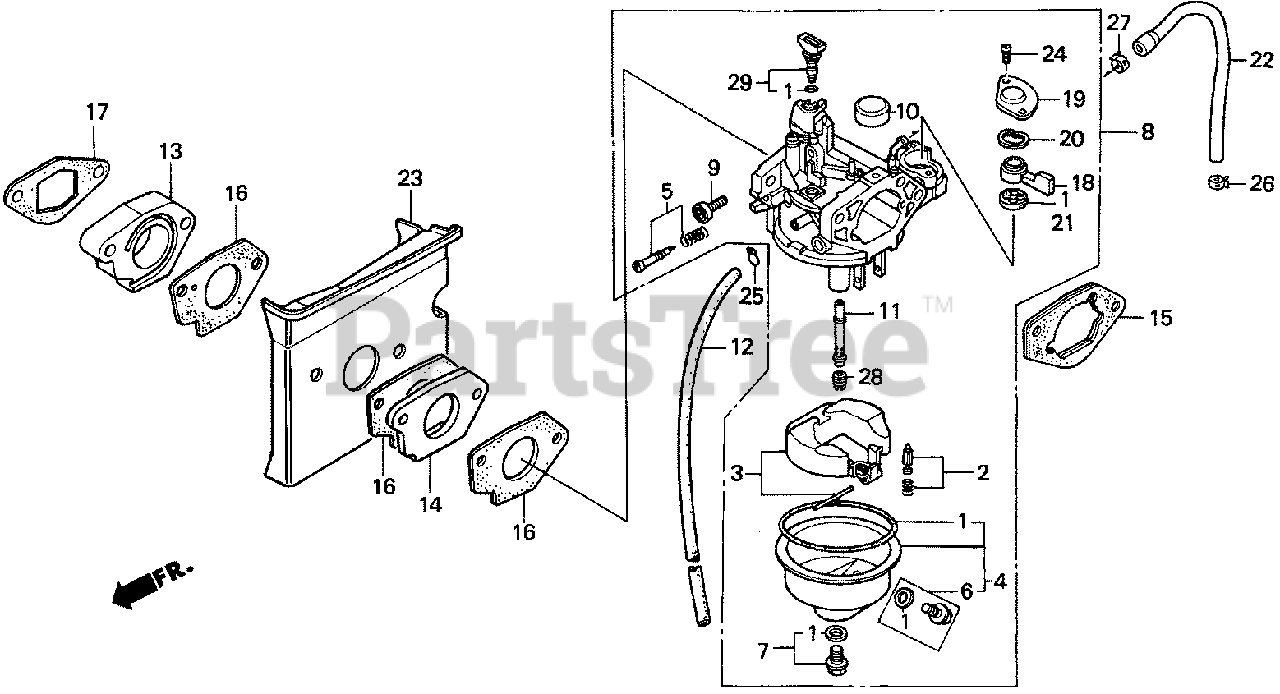

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-005

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-ZE2-015)

Note: Use up to Engine SN BB36A B.

$19.99

$

In Stock, only 2 left!

0

1

Honda 16010-ZE2-015

SEE PART DETAILS - PRI; GASKET SET (EXCEPT 16173-001-004)

Note: Use up to Engine SN BB36A B.

$19.99

$

In Stock, only 2 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$43.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZA0-931

FLOAT SET

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

CHAMBER SET, FLOAT

$44.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$14.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 3 left!

0

8

Honda 16100-ZE9-L02

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB36A B)
(Superseded to 16100-ZE9-L03)

Note: Use up to Engine SN 1116539.

$177.99

$

Usually ships in 3-6 days

0

8

Honda 16100-ZE9-L03

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB36A C)

$177.99

$

Usually ships in 3-6 days

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE DUST

$6.49

$

In Stock, only 1 left!

0

11

Honda 16166-ZE9-005

NOZZLE, MAIN

$33.99

$

Usually ships in 3-6 days

0

12

Honda 16199-ZF5-L00

TUBE, AIR VENT

$5.99

$

Usually ships in 3-6 days

0

13

Honda 16211-ZE9-010

INSULATOR, CARBURETOR

$15.99

$

Usually ships in 3-6 days

0

14

Honda 16211-ZE9-L00

INSULATOR, CARBURETOR

$19.99

$

Usually ships in 3-6 days

0

15

Honda 16220-ZA0-702

SPACER, CARBURETOR

$11.99

$

Usually ships in 3-6 days

0

16

Honda 16221-ZE3-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZE3-800)

Note: Use up to Engine SN 2057739.

$2.99

$

In Stock, Qty 20+

0

16

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

17

Honda 16223-ZE9-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 5

0

18

Honda 16953-ZE1-712

LEVER, PETCOCK

$10.99

$

Usually ships in 3-6 days

0

19

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

20

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$3.99

$

In Stock, only 1 left!

0

21

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, PETCOCK
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BB36A B.

$4.49

$

In Stock, Qty 20+

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

Note: Use up to Engine SN BB36A B.

$4.49

$

In Stock, Qty 20+

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

Note: Use from Engine SN BB36A C.

$4.49

$

In Stock, Qty 20+

0

22

Honda 17512-751-700

TUBE, FUEL

$11.99

$

Usually ships in 3-6 days

0

23

Honda 19625-ZE9-L00

GUIDE, AIR

$21.99

$

Usually ships in 3-6 days

0

24

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, Qty 5

0

24

Honda 93500-03008-0H

SCREW, PAN (3X8)

Note: Use up to Engine SN BB36A B.

$0.99

$

In Stock, Qty 8

0

25

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

26

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, Qty 6

0

27

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, only 2 left!

0

28

Honda 99101-ZH8-0820

JET, MAIN (#82)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

28

Honda 99101-ZH8-0850

JET, MAIN (#85)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

28

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88)

$7.99

$

In Stock, only 1 left!

0

29

Honda 99204-ZA0-0400

JET SET, PILOT (#40)

$22.99

$

Usually ships in 3-6 days

0
