H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) CAMSHAFT Parts Diagram

Riding Mower, Made in Japan

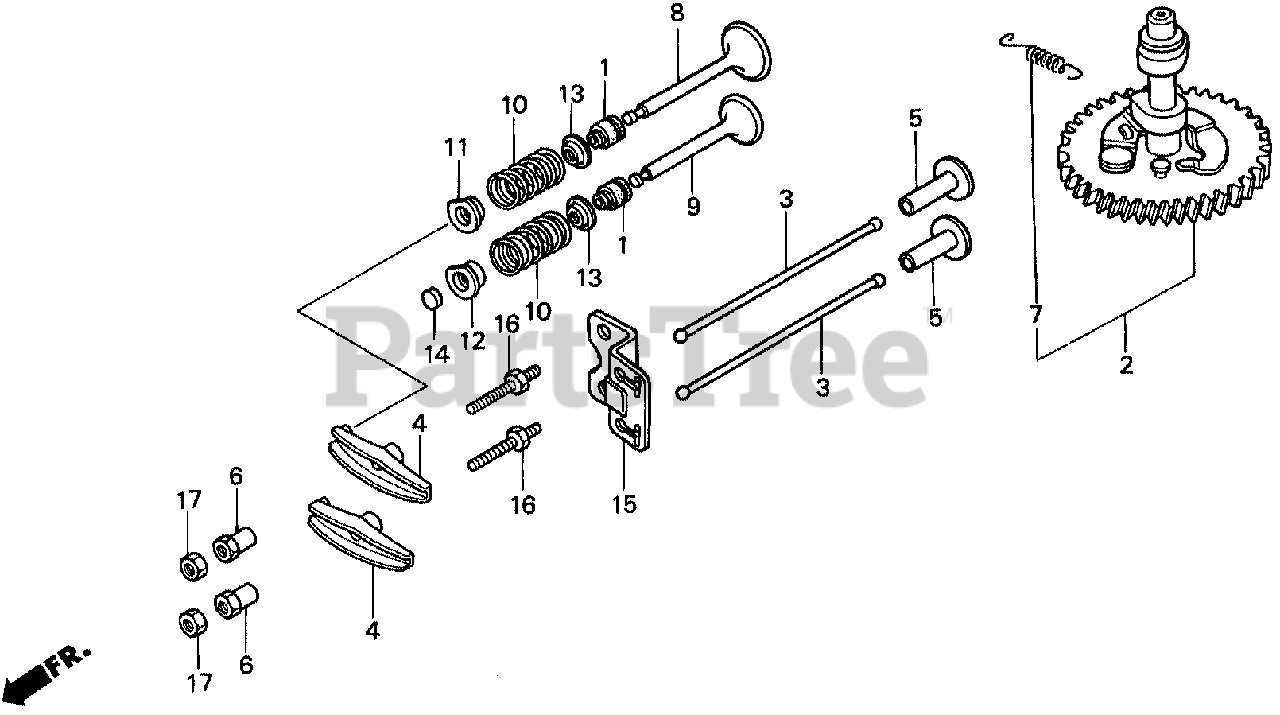

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-ZE8-003

SEAL, VALVE STEM

$8.49

$

In Stock, Qty 6

0

2

Honda 14100-ZE8-600

CAMSHAFT ASSY. (NOT AVAILABLE)

Note: Use up to Engine SN 2086152.

$

$

Not available

2

Honda 14100-ZE8-601

SEE PART DETAILS - SUP; CAMSHAFT ASSY.

Note: Use from Engine SN 2086153 to 2104511.

$

$

Not available

2

Honda 14100-ZE8-602

CAMSHAFT ASSY.

Note: Use from Engine SN 2104512.

$208.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE3-013

ROD, PUSH

$7.99

$

In Stock, Qty 5

0

4

Honda 14431-ZE2-000

SEE PART DETAILS - SUP; ARM, VALVE ROCKER
(Superseded to 14431-ZE2-010)

$9.49

$

In Stock, only 2 left!

0

4

Honda 14431-ZE2-010

SEE PART DETAILS - PRI; ARM, VALVE ROCKER

$9.49

$

In Stock, only 2 left!

0

5

Honda 14441-ZE2-000

LIFTER, VALVE

$16.99

$

In Stock, only 2 left!

0

6

Honda 14451-ZE1-013

SEE PART DETAILS - SUP; PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 5

0

6

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$5.99

$

In Stock, Qty 5

0

7

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

$3.49

$

In Stock, only 2 left!

0

8

Honda 14711-ZE3-000

VALVE, IN.

$22.99

$

Usually ships in 3-6 days

0

9

Honda 14721-ZE3-000

VALVE, EX.

$35.99

$

Usually ships in 3-6 days

0

10

Honda 14751-ZE2-003

SPRING, VALVE

$5.49

$

In Stock, only 2 left!

0

11

Honda 14771-ZE2-000

SEE PART DETAILS - SUP; RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z8S-000)

$2.49

$

In Stock, only 1 left!

0

11

Honda 14771-Z8S-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING

$2.49

$

In Stock, only 1 left!

0

12

Honda 14773-ZE2-000

SEE PART DETAILS - SUP; RETAINER, EX. VALVE SPRING

$2.49

$

In Stock, only 2 left!

0

12

Honda 14773-Z8S-000

SEE PART DETAILS - PRI; RETAINER, EX. VALVE SPRING

$2.49

$

In Stock, only 2 left!

0

13

Honda 14775-ZE2-010

SEAT, VALVE SPRING

$3.99

$

Usually ships in 3-6 days

0

14

Honda 14781-ZE2-000

ROTATOR, VALVE

$5.99

$

In Stock, only 1 left!

0

15

Honda 14791-ZE9-010

GUIDE, PUSH ROD

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

$8.49

$

Usually ships in 3-6 days

0

17

Honda 90206-ZE1-000

NUT, PIVOT ADJUSTING

$4.49

$

In Stock, Qty 6

0
