H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) AIR CLEANER Parts Diagram

Riding Mower, Made in Japan

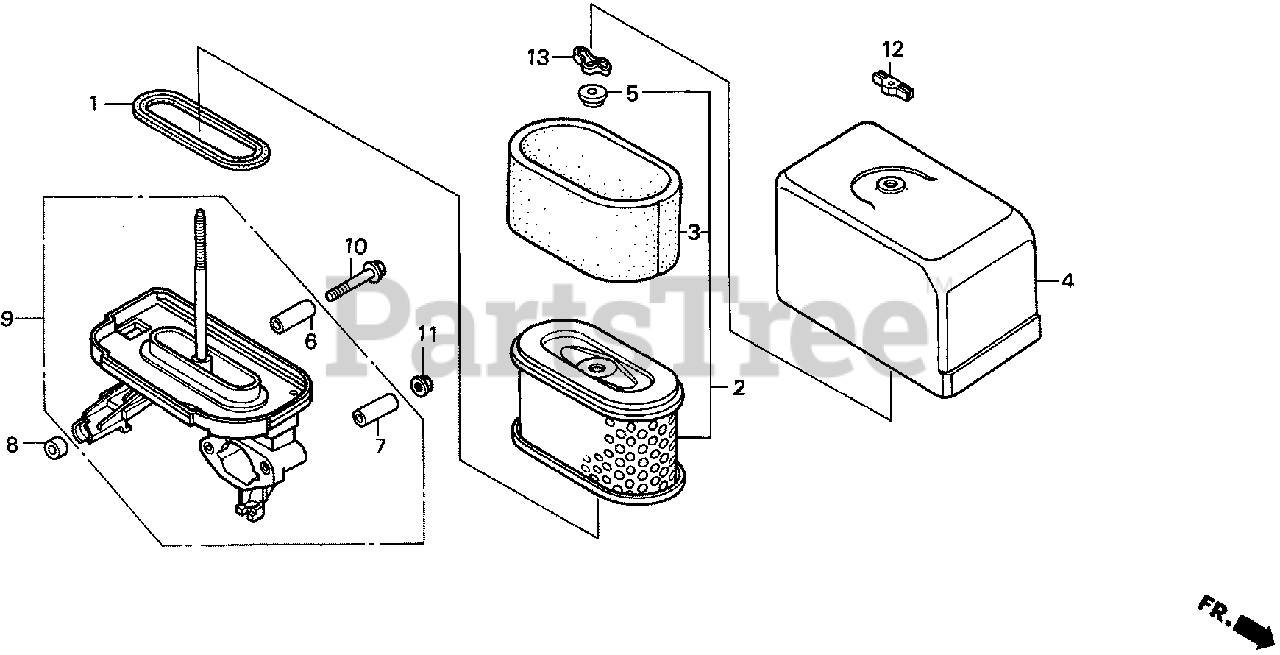

AIR CLEANER Parts Diagram

  • Title

1

Honda 16271-ZE8-000

GASKET, ELBOW

$4.99

$

Usually ships in 3-6 days

0

2

Honda 17210-ZF5-010

ELEMENT, AIR CLEANER (METAL BASE)

Note: Use from Engine SN 2104768.

$37.99

$

In Stock, only 2 left!

0

2

Honda 17210-ZF5-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (METAL BASE)
(Superseded to 17210-ZF5-010)

Note: Use up to Engine SN 2104767.

$37.99

$

In Stock, only 2 left!

0

3

Honda 17218-ZF5-505

FILTER (OUTER)
(Superseded to 17218-ZF5-305)

$9.49

$

In Stock, only 1 left!

0

4

Honda 17230-ZE8-013

COVER, AIR CLEANER (DUAL)

$37.99

$

Usually ships in 3-6 days

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.99

$

In Stock, Qty 15

0

6

Honda 17238-ZE1-000

COLLAR, AIR CLEANER

$5.99

$

Usually ships in 3-6 days

0

7

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

$4.99

$

In Stock, Qty 10

0

8

Honda 17239-ZE8-700

SPACER, AIR CLEANER ELBOW

$5.99

$

Usually ships in 3-6 days

0

9

Honda 17410-ZE8-013

ELBOW, AIR CLEANER

$48.99

$

In Stock, only 1 left!

0

10

Honda 90016-ZE8-000

BOLT, FLANGE (6X45) (CT200)

$2.99

$

In Stock, only 2 left!

0

11

Honda 90201-415-000

NUT, CAP (6MM)

Note: Use up to Engine SN 2062468.

$2.99

$

In Stock, Qty 9

0

11

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: Use from Engine SN 2062469.

$0.99

$

In Stock, Qty 20+

0

12

Honda 90203-ZA0-800

WINGNUT (6MM) (BLACK)

Note: Use up to Engine SN 2094406.

$4.49

$

In Stock, only 2 left!

0

13

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0
