H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) 3011 CLUTCH Parts Diagram

Riding Mower, Made in Japan

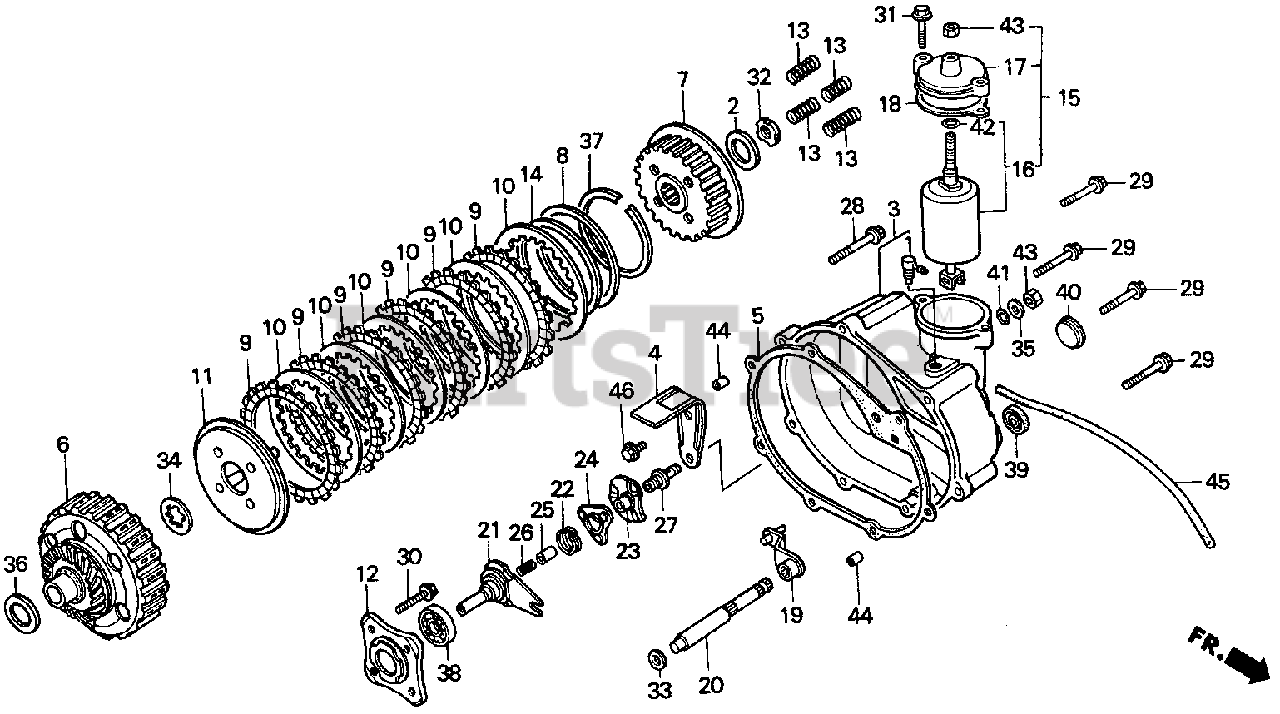

3011 CLUTCH Parts Diagram

  • Title

1

Honda 11106-GM2-300

JOINT, BREATHER

$8.49

$

Usually ships in 3-6 days

0

2

Honda 15451-107-000

WASHER, OIL FILTER ROTOR LOCKING

$5.49

$

Usually ships in 3-6 days

0

3

Honda 213A1-751-000

COVER, CLUTCH

$

$

Not available

4

Honda 21314-751-000

GUIDE, OIL

$

$

Not available

5

Honda 21123-763-A40

GASKET, CLUTCH COVER

$24.99

$

Usually ships in 3-6 days

0

6

Honda 22100-751-003

CLUTCH (OUTER)

$

$

Not available

7

Honda 22121-763-A01

CENTER, CLUTCH

$

$

Not available

8

Honda 22125-KB4-670

SEAT, JUDDER SPRING

$12.99

$

Usually ships in 3-6 days

0

9

Honda 22201-751-003

DISK, CLUTCH FRICTION

$

$

Not available

10

Honda 22311-GC4-730

PLATE, CLUTCH
(Superseded to 22311-HE0-000)

$

$

Not available

11

Honda 22350-751-013

PLATE, CLUTCH PRESSURE

$47.99

$

Usually ships in 3-6 days

0

12

Honda 22361-437-000

PLATE, CLUTCH LIFTER

$18.99

$

Usually ships in 3-6 days

0

13

Honda 22401-751-701

SPRING, CLUTCH

$4.99

$

Usually ships in 3-6 days

0

14

Honda 22405-763-A01

SPRING, CONED DISK

$

$

Not available

15

Honda 22700-751-010

SEE PART DETAILS - PRI; DAMPER SET, CLUTCH

$

$

Not available

16

Honda 22710-751-013

DAMPER ASSY., CLUTCH

$95.99

$

Usually ships in 3-6 days

0

17

Honda 22711-751-000

BRACKET, DAMPER (UPPER)

$

$

Not available

18

Honda 22715-751-010

GASKET, CLUTCH DAMPER

$7.49

$

Usually ships in 3-6 days

0

19

Honda 22811-751-000

LEVER, CLUTCH

$

$

Not available

20

Honda 22814-751-000

SHAFT, CLUTCH

$

$

Not available

21

Honda 22820-751-700

PLATE, CLUTCH CAM

$

$

Not available

22

Honda 22825-046-000

SPRING, CAM PLATE SIDE

$2.99

$

Usually ships in 3-6 days

0

23

Honda 22830-957-670

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

$

$

Not available

24

Honda 22860-046-000

RETAINER, CLUTCH BALL

$9.49

$

Usually ships in 3-6 days

0

25

Honda 25551-918-007

THROUGH, OIL

$

$

Not available

26

Honda 25555-065-000

SPRING, OIL THROUGH

$1.99

$

Usually ships in 3-6 days

0

27

Honda 50673-751-000

BOLT, CLUTCH ADJUSTING

$6.99

$

Usually ships in 3-6 days

0

28

Honda 90012-751-000

BOLT, FLANGE (6X40) (CT200)

$3.99

$

Usually ships in 3-6 days

0

29

Honda 90031-ZE1-000

BOLT, FLANGE (6X32) (CT200)

$3.99

$

In Stock, only 2 left!

0

30

Honda 90050-751-000

BOLT, SPECIAL FLANGE (6X28) (NOT AVAILABLE)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 90121-952-000

BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

32

Honda 90231-KCS-651

NUT, LOCK (16MM)

$5.49

$

In Stock, only 1 left!

0

33

Honda 90412-329-000

WASHER, THRUST (10MM)
(Superseded to 90412-KZL-840)

$0.99

$

In Stock, only 2 left!

0

34

Honda 90461-751-700

WASHER, SPLINE (20MM)

$

$

Not available

35

Honda 90485-GB4-790

WASHER (8MM)

$2.99

$

Usually ships in 3-6 days

0

36

Honda 90540-751-000

SHIM, MAINSHAFT (20.2X30X1.25) (A)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90541-751-000

SHIM, MAINSHAFT (20.2X30X1.30) (B)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

36

Honda 90542-751-000

SHIM, MAINSHAFT (20.2X30X1.35) (C)

Note: (Optional).

$

$

Not available

36

Honda 90543-751-000

SHIM, MAINSHAFT (20.2X30X1.40) (D)

Note: (Optional).

$

$

Not available

36

Honda 90544-751-000

SHIM, MAINSHAFT (20.2X30X1.45) (E)

Note: (Optional).

$

$

Not available

36

Honda 90545-751-000

SHIM, MAINSHAFT (20.2X30X1.50) (F)

Note: (Optional).

$

$

Not available

36

Honda 90546-751-000

SHIM, MAINSHAFT (20.2X30X1.55) (G)

Note: (Optional).

$

$

Not available

36

Honda 90547-751-000

SHIM, MAINSHAFT (20.2X30X1.60) (H)

Note: (Optional).

$

$

Not available

36

Honda 90548-751-000

SHIM, MAINSHAFT (20.2X30X1.65) (I)

Note: (Optional).

$

$

Not available

36

Honda 90549-751-000

SHIM, MAINSHAFT (20.2X30X1.70) (J)

Note: (Optional).

$

$

Not available

37

Honda 90609-355-000

SET-RING, SPECIAL (82.5MM) (NOT AVAILABLE)

$

$

Currently unavailable

38

Honda 91010-HC0-003

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (16003)
(Superseded to 91011-KK6-013)

$20.99

$

In Stock, only 1 left!

0

38

Honda 91011-KK6-013

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (16003)

$20.99

$

In Stock, only 1 left!

0

39

Honda 91201-VA4-801

OIL SEAL (10X20X5)

$5.49

$

In Stock, only 2 left!

0

40

Honda 91255-751-003

SEAL, PLUG (25X7)

$5.99

$

Usually ships in 3-6 days

0

41

Honda 91306-HB3-003

O-RING (8X1.7) (ARAI)

$2.49

$

Usually ships in 3-6 days

0

42

Honda 91306-PJ4-000

SEE PART DETAILS - PRI; O-RING (6.8X1.9)

$4.99

$

Usually ships in 3-6 days

0

43

Honda 94030-08000

NUT, HEX. (8MM)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

45

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X200)

$31.99

$

Usually ships in 3-6 days

0

46

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
