H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) 3011 CHANGE SHAFT Parts Diagram

Riding Mower, Made in Japan

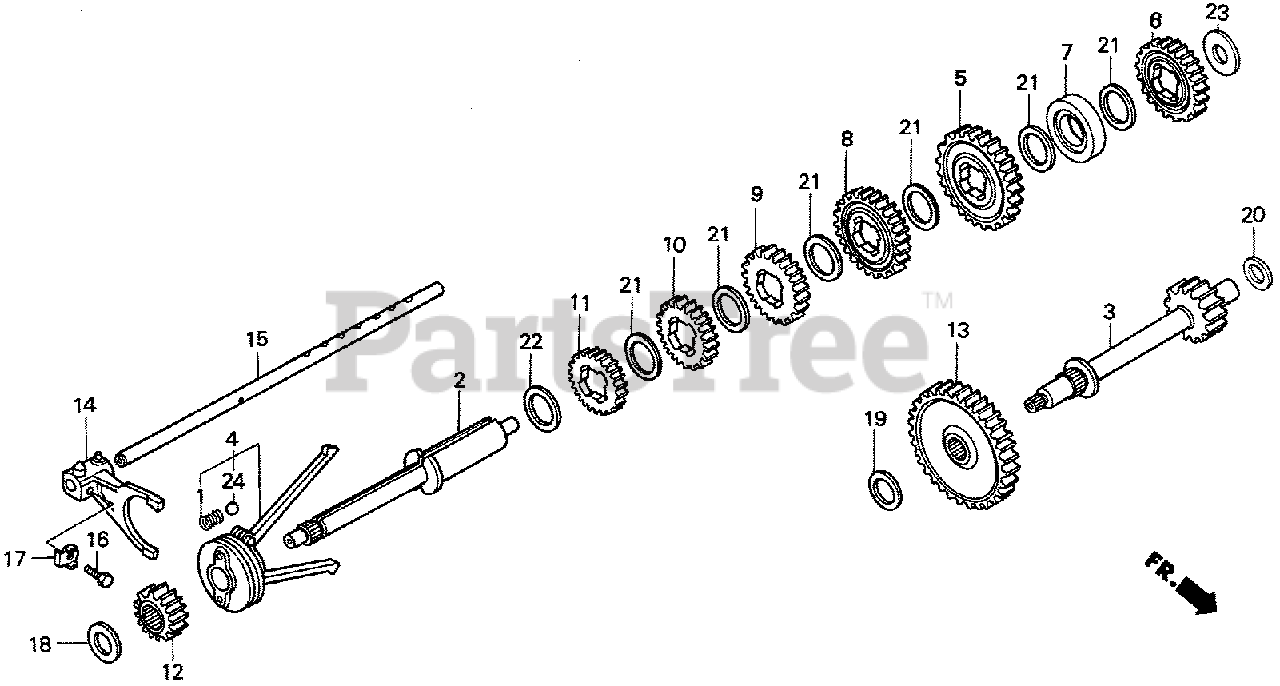

3011 CHANGE SHAFT Parts Diagram

  • Title
1

Honda 21218-750-000

SPRING, CHANGE KEY

$4.49

$

Usually ships in 3-6 days

0

2

Honda 23213-751-000

SHAFT, CHANGE

$

$

Not available

3

Honda 23214-751-000

COUNTERSHAFT

$

$

Not available

4

Honda 23220-751-000

HOLDER, KEY (NOT AVAILABLE)

$

$

Not available

5

Honda 23361-763-A00

GEAR, CHANGE LOW (48T)

$

$

Not available

6

Honda 23366-763-A00

GEAR, REVERSE CHANGE (41T)

$

$

Not available

7

Honda 23501-751-000

POSITIONER, NEUTRAL

$

$

Not available

8

Honda 23521-751-000

GEAR, CHANGE SECOND (43T)

$

$

Not available

9

Honda 23531-751-000

GEAR, CHANGE THIRD (37T)

$

$

Not available

10

Honda 23541-751-000

GEAR, CHANGE FOURTH (34T)

$

$

Not available

11

Honda 23551-751-000

GEAR, CHANGE FIFTH (32T)

$

$

Not available

12

Honda 23611-751-000

GEAR, COUNTERSHAFT DRIVE (16T)

$

$

Not available

13

Honda 23612-751-000

GEAR, COUNTERSHAFT DRIVEN (49T)

$

$

Not available

14

Honda 24110-751-000

FORK, SHIFT

$

$

Not available

15

Honda 24112-751-000

SHAFT, SHIFT FORK

$

$

Not available

16

Honda 24282-634-000

BOLT, SHAFT FORK SETTING

$6.99

$

Usually ships in 3-6 days

0

17

Honda 90411-751-000

WASHER, LOCK (6MM)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90451-166-000

WASHER, THRUST (15MM) (NOT AVAILABLE)

$

$

Not available

19

Honda 90454-751-000

WASHER, THRUST (20MM)

$6.49

$

Usually ships in 3-6 days

0

20

Honda 90455-751-000

WASHER, THRUST (18MM)

$12.99

$

Usually ships in 3-6 days

0

21

Honda 90505-751-000

WASHER, DISTANCE (2MM)

$14.99

$

Usually ships in 3-6 days

0

22

Honda 90506-751-000

WASHER, DISTANCE (1MM)

$

$

Not available

23

Honda 90508-751-000

WASHER, CHANGE THRUST (NOT AVAILABLE)

$

$

Not available

24

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0
