H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) 3011 CHANGE LEVER Parts Diagram

Riding Mower, Made in Japan

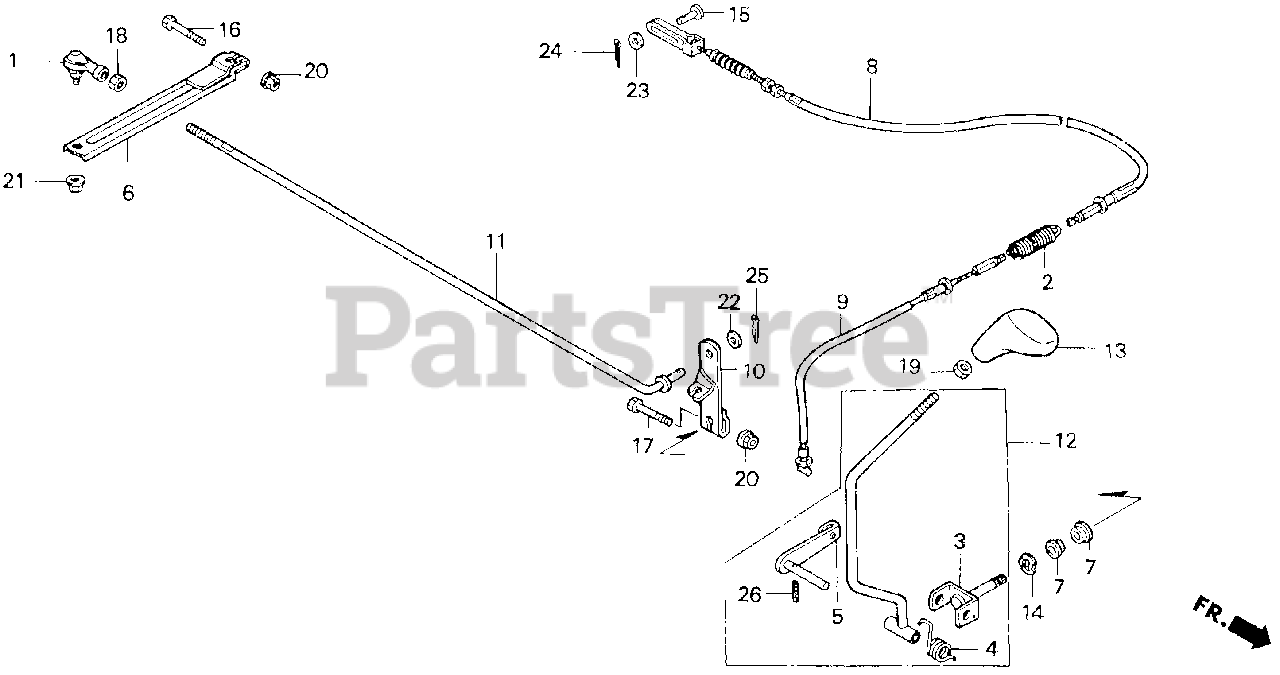

3011 CHANGE LEVER Parts Diagram

  • Title
1

Honda 24125-751-013

JOINT, R. BALL

$40.99

$

Usually ships in 3-6 days

0

2

Honda 24132-751-000

SPRING, CLUTCH DAMPER

$

$

Not available

3

Honda 24133-751-700

SHAFT, CHANGE LEVER

$38.99

$

Usually ships in 3-6 days

0

4

Honda 24134-751-010

SPRING, CHANGE LEVER

$

$

Not available

5

Honda 24135-751-310

LINK, CLUTCH

$

$

Not available

6

Honda 24138-751-000

ARM, TRANSMISSION CHANGE

$22.99

$

Usually ships in 3-6 days

0

7

Honda 24141-751-000

BUSH (15X19X18)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 24150-763-A00

CABLE C, CLUTCH (CHANGE)

$

$

Not available

9

Honda 24160-763-A02

SEE PART DETAILS - PRI; CABLE D, CLUTCH (CHANGE)

$

$

Not available

10

Honda 24361-763-A00

ARM, CHANGE

$

$

Not available

11

Honda 24369-763-A00

ROD, CHANGE (C)

$

$

Not available

12

Honda 24400-763-A00

LEVER ASSY., CHANGE

$

$

Not available

13

Honda 54225-763-A01

KNOB, SHIFT LEVER

$51.99

$

Usually ships in 3-6 days

0

14

Honda 90405-ZA8-800

WASHER, WAVE (15MM)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90755-751-010

PIN, CLUTCH JOINT

$4.99

$

Usually ships in 3-6 days

0

16

Honda 92200-06032-0H

BOLT, HEX. (6X32)

$

$

Not available

17

Honda 92201-06038-0H

BOLT, HEX. (6X38)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 6

0

19

Honda 94002-12020-0S

NUT, HEX. (12MM)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

21

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

22

Honda 94101-08800

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

23

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 16

0

24

Honda 94201-16120

PIN, SPLIT (1.6X12)

$1.49

$

In Stock, only 4 left!

0

25

Honda 94201-20150

PIN, SPLIT (2.0X15)

$1.49

$

In Stock, only 2 left!

0

26

Honda 94305-50251

PIN, SPRING (5X25)

$2.99

$

Usually ships in 3-6 days

0
