H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) PISTON Parts Diagram

Riding Mower, Made in Japan

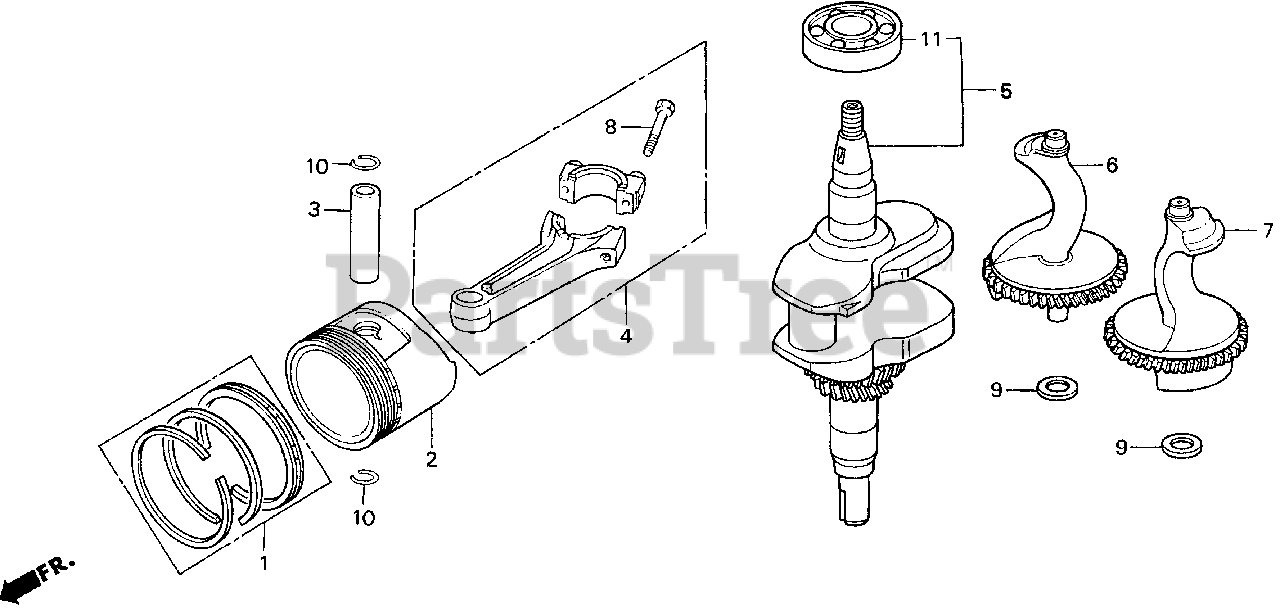

PISTON Parts Diagram

  • Title

1

Honda 13010-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 2278182).

$45.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 2278208).

Note: (Optional).

$72.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 2278224).

Note: (Optional).

$72.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (Honda Code 2278240).

Note: (Optional).

$

$

Not available

2

Honda 13101-ZE3-W00

PISTON (STD)

Note: Use from Engine SN 2104756.

$60.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZE3-000

PISTON (STD) (Honda Code 2107688).

Note: Use up to Engine SN 2104755.

$

$

Not available

2

Honda 13102-ZE3-W00

PISTON (OS 0.25)

Note: (Optional).Use from Engine SN 2104756.

$

$

Not available

2

Honda 13102-ZE3-000

PISTON (OS 0.25) (Honda Code 2278265).

Note: (Optional).Use up to Engine SN 2104755.

$111.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE3-W00

PISTON (OS 0.50)

Note: (Optional).Use from Engine SN 2104756.

$

$

Not available

2

Honda 13103-ZE3-000

PISTON (OS 0.50) (Honda Code 2278273).

Note: (Optional).Use up to Engine SN 2104755.

$

$

Not available

2

Honda 13104-ZE3-W00

PISTON (OS 0.75)

Note: (Optional).Use from Engine SN 2104756.

$

$

Not available

2

Honda 13104-ZE3-000

PISTON (0.75) (Honda Code 2278281).

Note: (Optional).Use up to Engine SN 2104755.

$

$

Not available

3

Honda 13111-ZF6-000

SEE PART DETAILS - PRI; PIN, PISTON (Honda Code 3134434).

$15.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE9-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (Honda Code 2879948).
(Superseded to 13200-Z1E-000)

$154.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE9-020

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 6840847).
(Superseded to 13200-Z1E-000)

$154.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE9-315

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (US 0.25) (Honda Code 2953107).

Note: (Optional).

$

$

Not available

4

Honda 13200-Z1E-000

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$154.99

$

Usually ships in 3-6 days

0

5

Honda 13310-ZF5-L01

CRANKSHAFT (NOT AVAILABLE)

Note: Use up to Engine SN 2086452.

$

$

Not available

5

Honda 13310-ZF5-L02

CRANKSHAFT

Note: Use from Engine SN 2086453 to 2102951.

$

$

Not available

5

Honda 13310-ZF5-L04

CRANKSHAFT

Note: Use from Engine SN 2102952.

$384.99

$

Usually ships in 3-6 days

0

6

Honda 13351-ZE9-600

WEIGHT A, BALANCER (Honda Code 3131851).

Note: Use up to Engine SN 2086152.

$

$

Not available

6

Honda 13351-ZE9-601

WEIGHT A, BALANCER (Honda Code 4608394).

Note: Use from Engine SN 2086153 to 2100576.

$

$

Currently unavailable

6

Honda 13351-ZE9-603

SEE PART DETAILS - PRI; WEIGHT A, BALANCER (Honda Code 4949764).

Note: Use from Engine SN 2100577.

$258.99

$

Usually ships in 3-6 days

0

7

Honda 13356-ZE9-600

WEIGHT B, BALANCER (Honda Code 3131877).

Note: Use up to Engine SN 2086152.

$

$

Not available

7

Honda 13356-ZE9-601

WEIGHT B, BALANCER (Honda Code 4608402).

Note: Use from Engine SN 2086153 to 2100576.

$

$

Not available

7

Honda 13356-ZE9-604

SEE PART DETAILS - PRI; WEIGHT B, BALANCER (Honda Code 4949772).

Note: Use from Engine SN 2100577.

$273.99

$

Usually ships in 3-6 days

0

8

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$4.49

$

In Stock, only 1 left!

0

9

Honda 90417-HA0-000

WASHER, THRUST (14MM) (Honda Code 1824507).

Note: Use from Engine SN 2100577.

$4.99

$

Usually ships in 3-6 days

0

10

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM) (Honda Code 2108579).

$2.49

$

In Stock, only 3 left!

0

11

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0

11

Honda 96100-62073-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207) (Honda Code 0572206).
(Superseded to 96100-62070-00)

Note: Use from Engine SN 2098354.

$56.99

$

Usually ships in 3-6 days

0
