H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) P.T.O. CLUTCH LEVER Parts Diagram

Riding Mower, Made in Japan

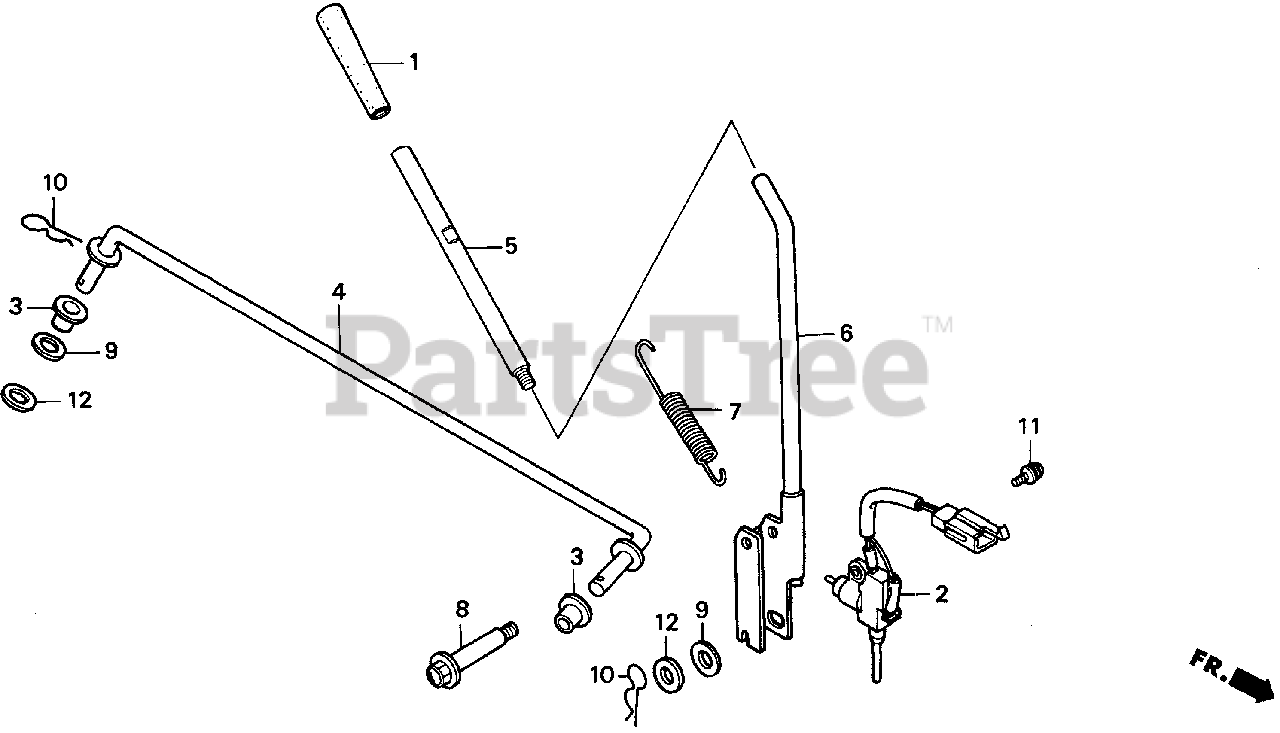

P.T.O. CLUTCH LEVER Parts Diagram

  • Title
1

Honda 24406-763-A00ZA

SEE PART DETAILS - PRI; GRIP, P.T.O. CLUTCH LEVER *Y121* (YELLOW)

$10.99

$

Usually ships in 3-6 days

0

2

Honda 35330-763-A01

SWITCH ASSY., P.T.O. CLUTCH

$42.99

$

Usually ships in 3-6 days

0

3

Honda 75189-751-000

BUSH, P.T.O. ROD

$7.99

$

Usually ships in 3-6 days

0

4

Honda 75193-763-A01

ROD, P.T.O. CLUTCH

$54.99

$

Usually ships in 3-6 days

0

5

Honda 75251-751-000

JOINT, P.T.O. CLUTCH LEVER

$36.99

$

Usually ships in 3-6 days

0

6

Honda 75252-763-A01

LEVER, P.T.O. CLUTCH

$75.99

$

Usually ships in 3-6 days

0

7

Honda 75253-763-A01

SPRING, P.T.O. CLUTCH

$15.99

$

Usually ships in 3-6 days

0

8

Honda 90104-763-A00

BOLT, P.T.O. CLUTCH LEVER

$9.99

$

Usually ships in 3-6 days

0

9

Honda 90532-751-000

WASHER, P.T.O.

$3.49

$

In Stock, only 1 left!

0

10

Honda 90651-703-000

PIN, SNAP (7MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 93891-04012-08

SCREW-WASHER (4X12)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94101-10800

WASHER, PLAIN (10MM) (Honda Code 0562199).

$2.49

$

In Stock, only 2 left!

0
